EQUIPMENT DETAILS

109

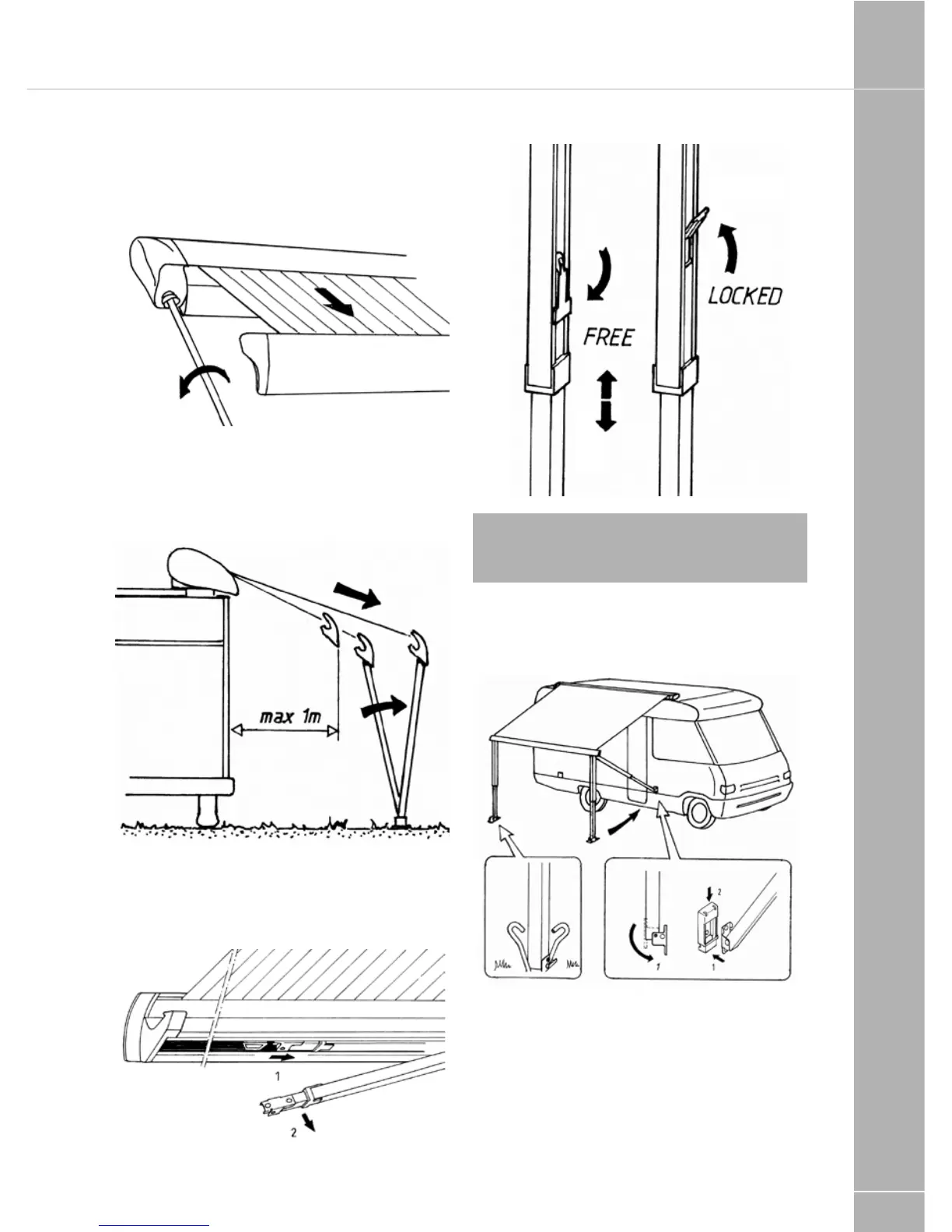

3. Unroll the awning while keeping the crank

down. The awning will only open after a

couple of turnings.

Fig. 3

4. Unroll till 1 m max. Then put out the support

arms before further unrolling

Fig. 4

5. Slide the support arms out of the

front proﬁle.

Fig. 5

6. Adjust them to the required height. The

fabric can be tightened by rolling up a little.

Fig. 6

Note: Never put out the support arms that

high, that the fabric jams between the arms

and the box.

7. Fasten the support arms.

Fig. 7
