Operating the Machine
This machine is designed to be connected to a tractor by using a standard 3 point linkage connection. It can be installed
either to the front or to the rear of the tractor, depending on the model of your machine.

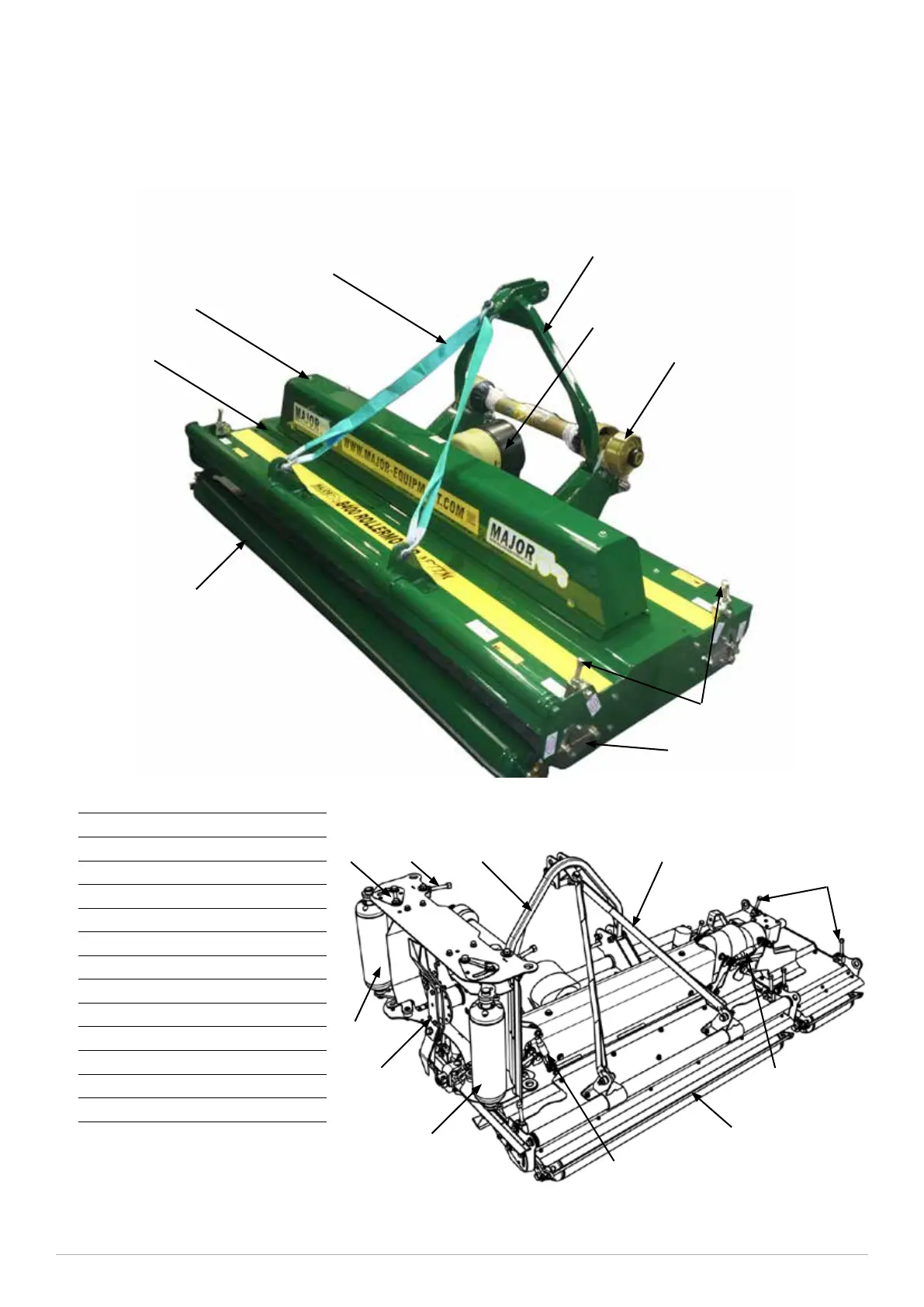

Key to Main Parts
1 Body
2 Drivetrain cover
3 A-Frame
4 Gearbox PTO cover
5 PTO shaft
6 Rear roller
7 Strap
8 Roller height adjuster rod
9 Roller height indicator
10 Top Link
11 Blade
12 Front roller
13 Scraper bar
Rear mounted machine shown
Rear mounted machine shown
