FITTED EQUIPMENT
178
External shower point
The external shower point, if fitted, will be
supplied with a separate shower head and
hose assembly. To connect the shower,
simply align the plug with the socket and
push into position. To remove, pull the lower
trigger and pull the plug from the socket.

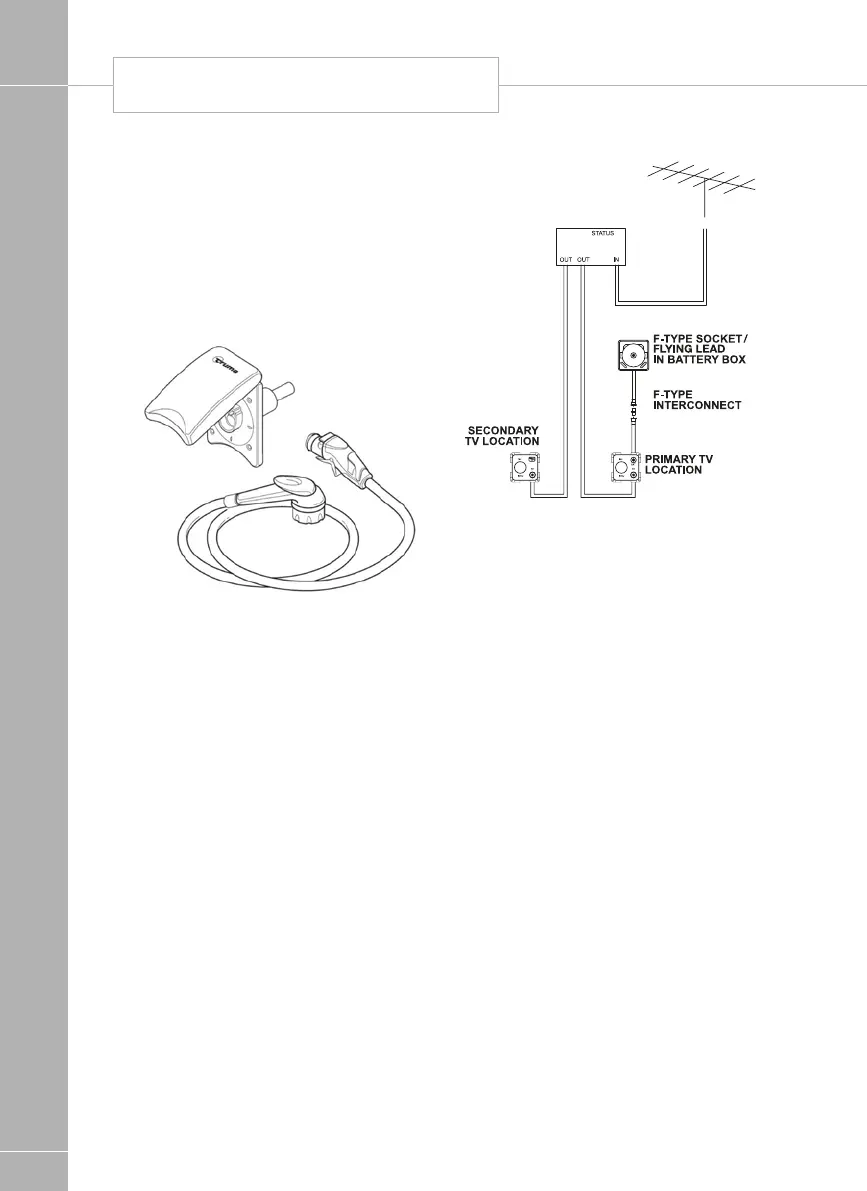

Caravans with TV inlet in
battery box
Models equipped with TV points in the battery
box have the facility to take an external signal
and supply that signal to TV points within the
caravan.
Caravans equipped in this way feature a direct
link from the connection point in the battery
box, to an auxiliary connection point at the
primary TV position within the caravan. The
primary TV position is that which also features
an AV outlet plate (see later text).
The direct link can be used to:
1. Supply an external signal (caravan site TV
feed) to the primary TV position
a. Connect the socket in the battery box
(on flying lead depending on model), with
a suitable lead, to the appropriate socket
on the caravan site supply post. As the
connector in the battery box is a screw on
‘F-type’ connector, an adaptor to convert
this to a ‘push-on’ co-ax connector, which
may be required, has been supplied with
your caravan.
b. Locate the primary TV position within the
caravan. At the 12V, TV and SAT socket,
connect your TV to the output from the
socket marked SAT with a suitable lead.
2. Connect an external satellite dish to a
decoder within the caravan. (The direct link
uses F-type interconnects throughout to
allow the decoder and dish to communicate
correctly)
a. Connect the dish to the socket (or flying
lead) in the battery box with a suitable lead.
The F-type to co-ax adaptor should not be
used.
b. Connect the dish input connection on the
decoder to the ‘SAT’ socket on the 12V, TV
and SAT socket located in the primary TV
location.
EXTERNAL SHOWER POINT /
BATTERY BOX TV INLET
