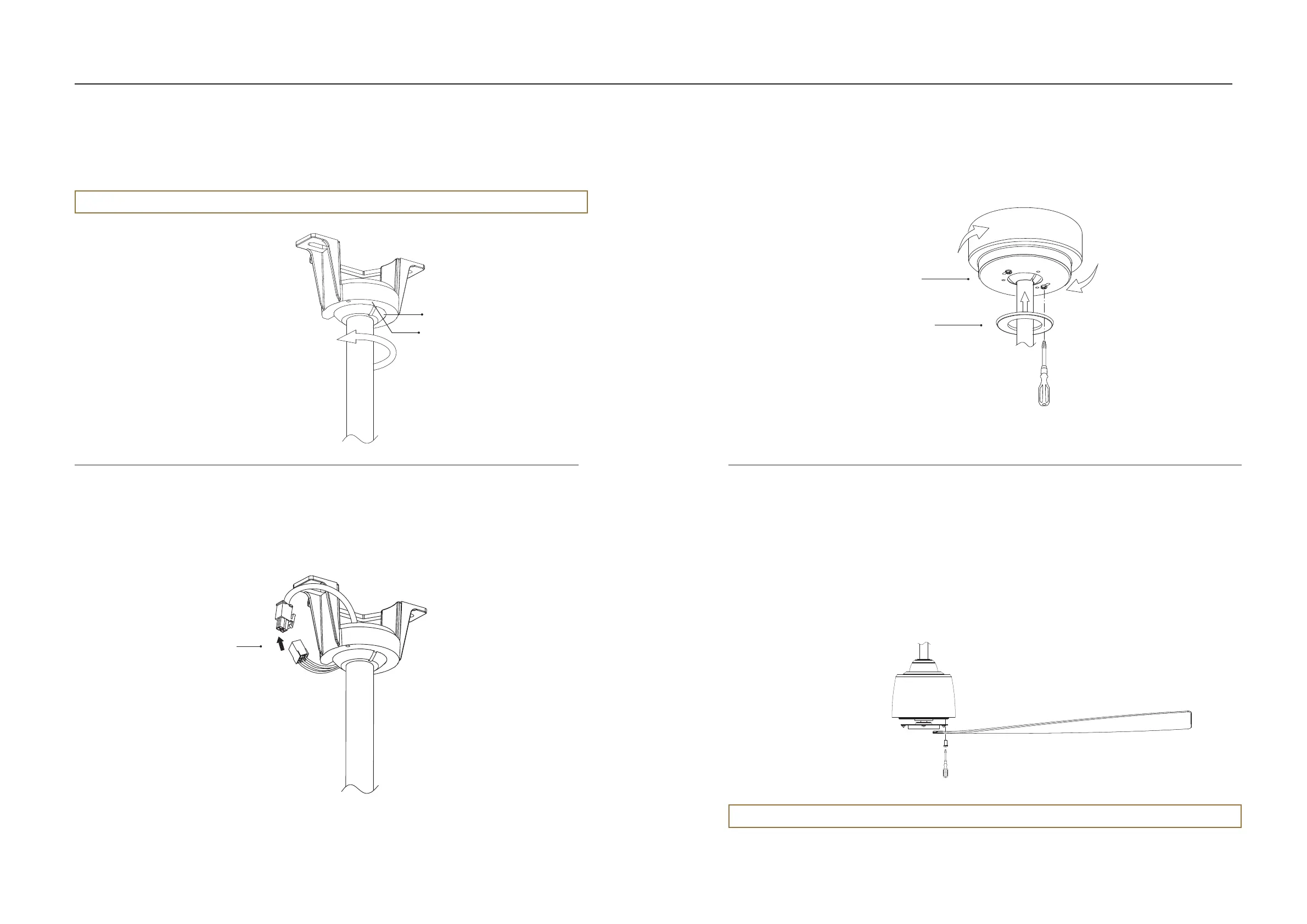

Swing DIAMOND - Fan Hanging and Electrical Connection; Ceiling Cover and Blade Fitting

8. Connecting the ceiling cover
- Lift the ceiling cover over the hanging bracket.
- Rotate the ceiling cover and tighten the screws.
- Cover the screws with the decorative cover.
Ceiling cover screws
Decorative cover
9. Fitting the blades
- Verify that the blades are installed in the correct direction. Notice “This side up” label on the fan
blades. The blades are not reversable.
- Insert the screws through the blade and secure them to the motor.
- When using three blades – select the holes marked with green lines.
- When using four blades – select the holes marked with red lines.
- Repeat this securing process for all other blades.
7. Connecting the ceiling fan to the electricity supply
After the ceiling fan is properly hung, connect the terminal plug connector (male to female).
6. Hanging the fan
- Carefully lift the fan motor.
- Place the ball-joint in the hanging bracket, so that the groove is located in the slot. The down rod
should not rotate if this is done correctly.
Connector terminal plug
Slot
Ball-joint
Installation instructions
Attention! The blades supplied with the fan is a matching set. Do not mix them with blades from a different fan.
Attention! To ensure smooth operation of the fan it is important to securely fasten all the screws intended for hanging it.
9
SWING DIAMOND Fan Installation Instructions | Version 1.23
