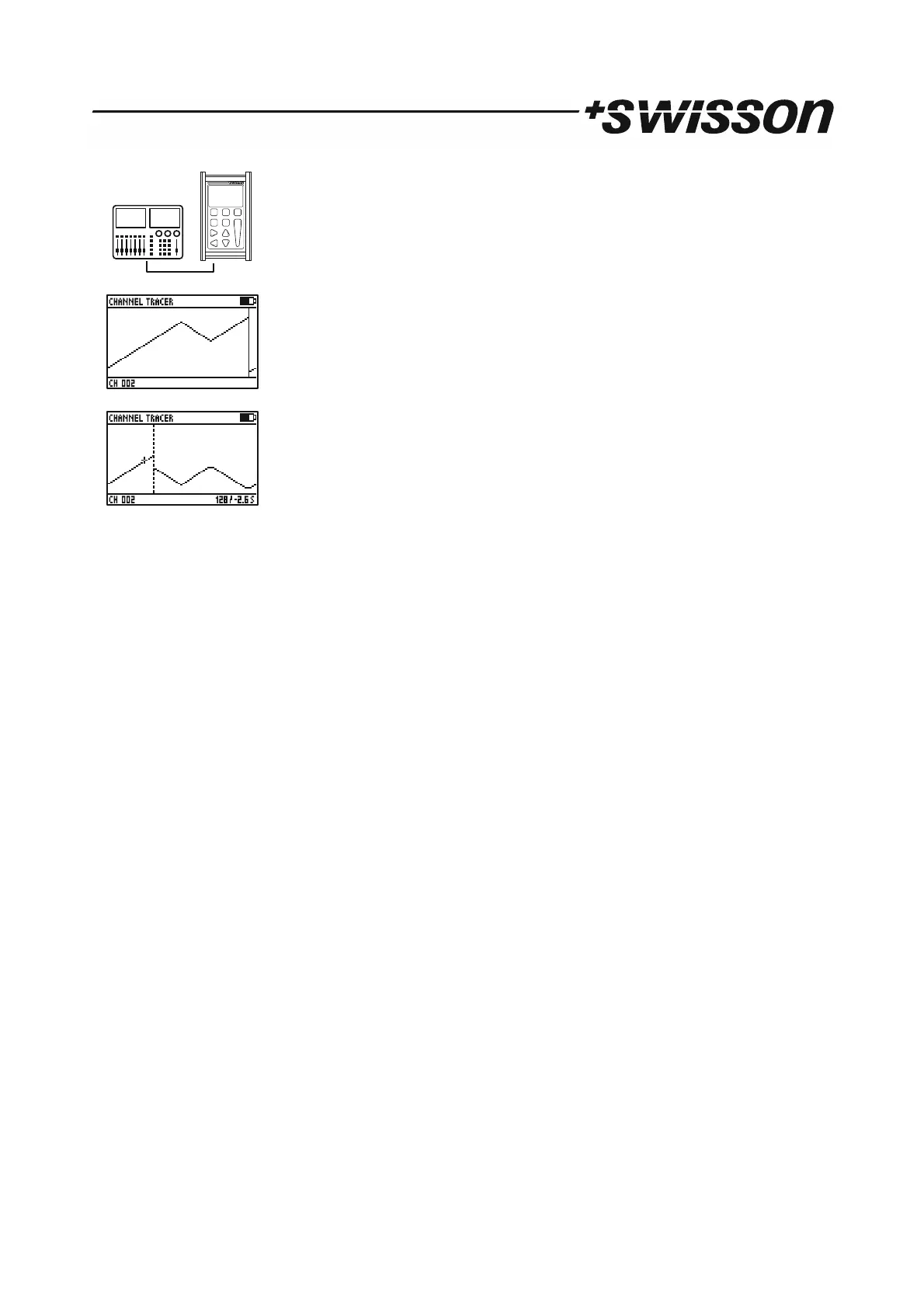

Connect a DMX source to the XMT's DMX in port.
The level of one channel is traced. The address of the current channel is displayed on the
bottom left of the screen.
Use [CH+] and [CH-] buttons to change that address.
Use the [Cancel] button to stop and resume the tracing.
When stopped a small cursor appears. The position of the cursor is displayed on the
bottom right of the screen. The first value shows the DMX level and the second value
shows the time at which this channel was received relative to the time at which the
tracing was stopped.
Use [CH+] and [CH-] buttons to move the cursor.
Use [0], [50%] and [100%] buttons to zoom in and out.
Scroll up and down with [+] and [-] when zoomed in.
14 PRELIMINARY
