13.6 REFRESH RATE
In send DMX mode:
• Press [OK] to access the send options.
• Choose the REFRESH RATE item with the [UP]/[DOWN] buttons.
• Press [OK] to change the refresh rate.
• Press [Cancel] to exit the send options.
Available refresh rates are: 5, 10, 15, 20, 25, 30, 35, 40, 44 Hz (frames/sec).

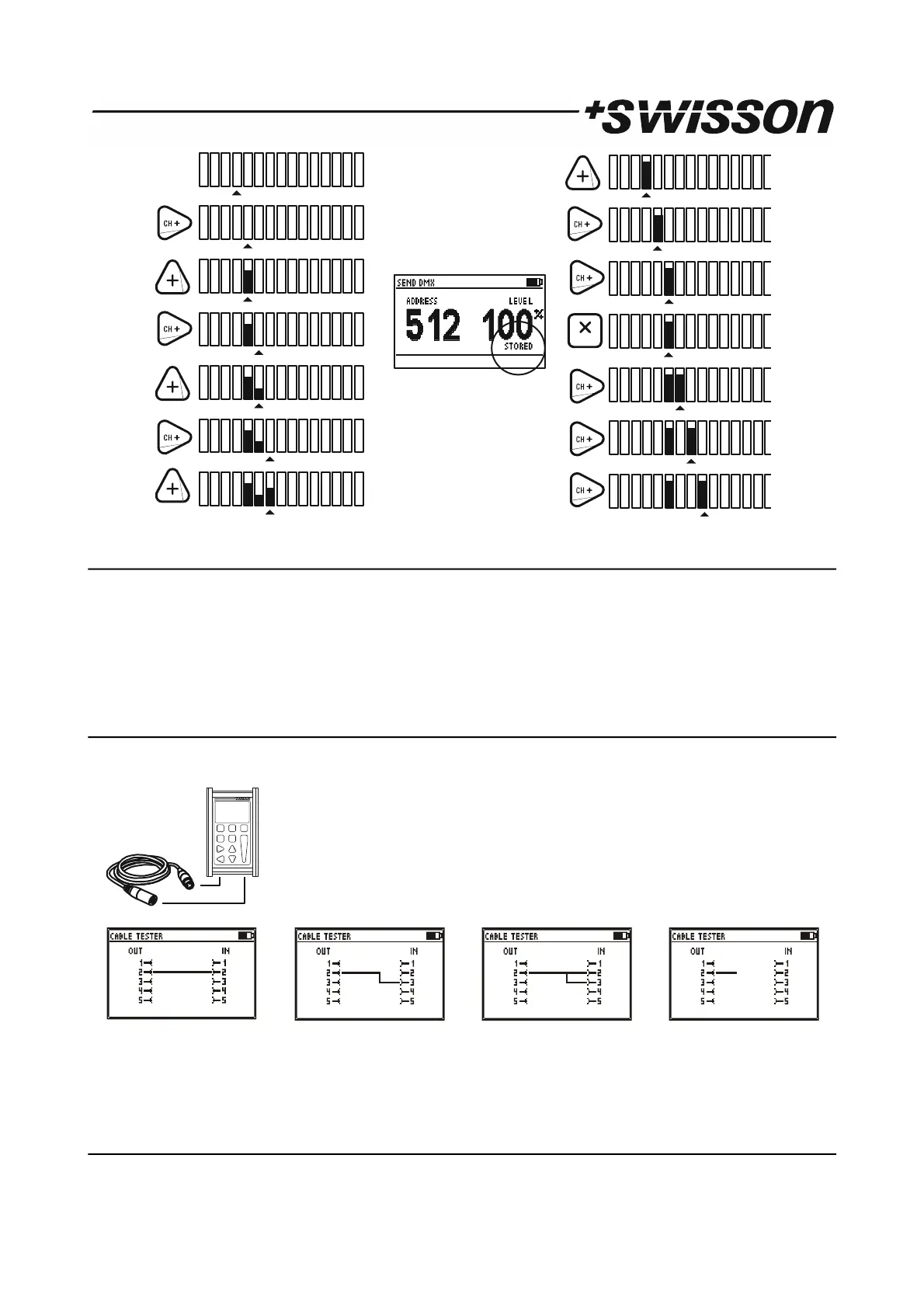

14 CABLE TESTER
Press the [MODE] button and choose CABLE TESTER. Now, press the [OK] button to enter the cable tester mode.
Connect the cable to test to the DMX in and to the DMX out port. The XMT scans all pin
connections automatically.
If the connection between a
pair of pins is OK, it's
indicated by a straight line
connecting the pins.
Pin 2 is connected to pin 3.
This is usually an error
with DMX cables.
Pin 2 is shorted with pin 3.
This is usually an error
with DMX cables.
Pin 2 is not connected.
(broken circuit).
This is usually an error
with DMX cables.
The speed of the scanning can be modified with the [0%], [50%], [100%] buttons.
15 CHANEL TRACER
Press the [MODE] button and choose CHANNEL TRACER. Now, press the [OK] button to enter the channel tracer mode.
