Operating Elements
65
3 Operating Elements
The buttons in this operating manual are subsequently depicted
with a uniform contour. Therefore, slight deviations in the appea-
rance of the symbols on the walkie−talkie buttons compared to those
depicted here are possible.

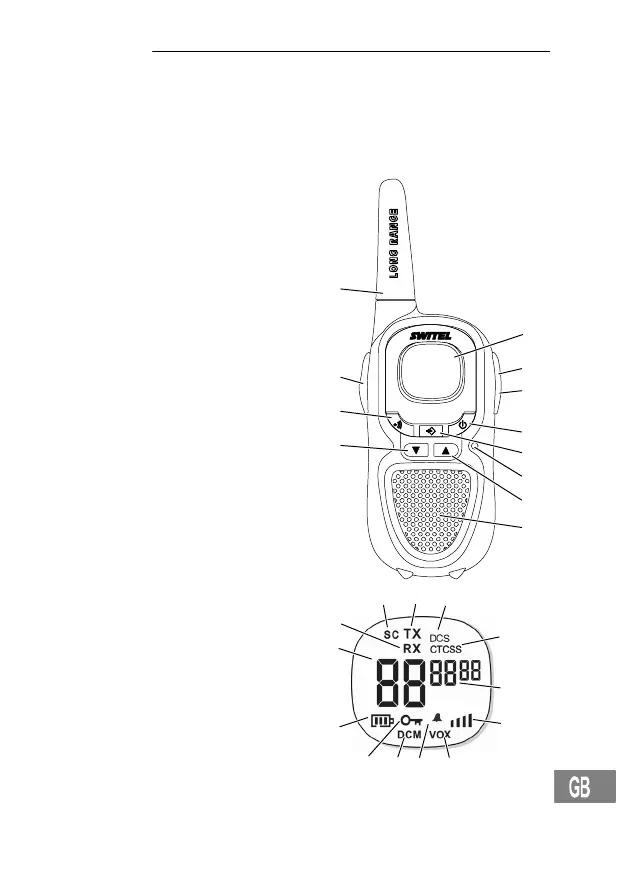

Walkie−talkie
1 Display
2 Headset connection socket
3 Power adapter cable socket
4 On / Off
5 Menu
6 Microphone
7 Volume / Setting +
8 Loudspeaker
9 Volume / Setting −
10 Transmit ringing tones
11 PTT − Talk button
12 Antenna
Display
1 Scanning channels
2 Transmitting
3 DCS
1
active
4 CTCSS
2
active
5 CTCSS / DCS code
6 Volume control
7 VOX
3
mode
8 Alarm/Alert
9 Dual channel monitoring
10 Key lock
11 Battery capacity
12 Channel
13 Receiving
1
2
3
4
5
6
9
10
11
12
7
8
1
DCS: Digital Coded Squelch
2
CTCSS: Continous Tone Coded Squelch System
3
VOX: Voice Operated Transmission
1
4
5
6
7
8
9
10
11
2
3
12
13
