SWorkz S35-4e EVO - Page 17

17
21
20
BAG
E3
330124
Pin M3.0x16.8mm
x2
104010
M5x4mm Set Screw (Flat Bottom)
x2
104010
116006R
Ball Bearing 8x16x5mm (Red Rubber Case)
x4
Left
116006R
116006R
101018
330124
210046
338080
Right
101018
SHIM 13x16x0.2mm
x2

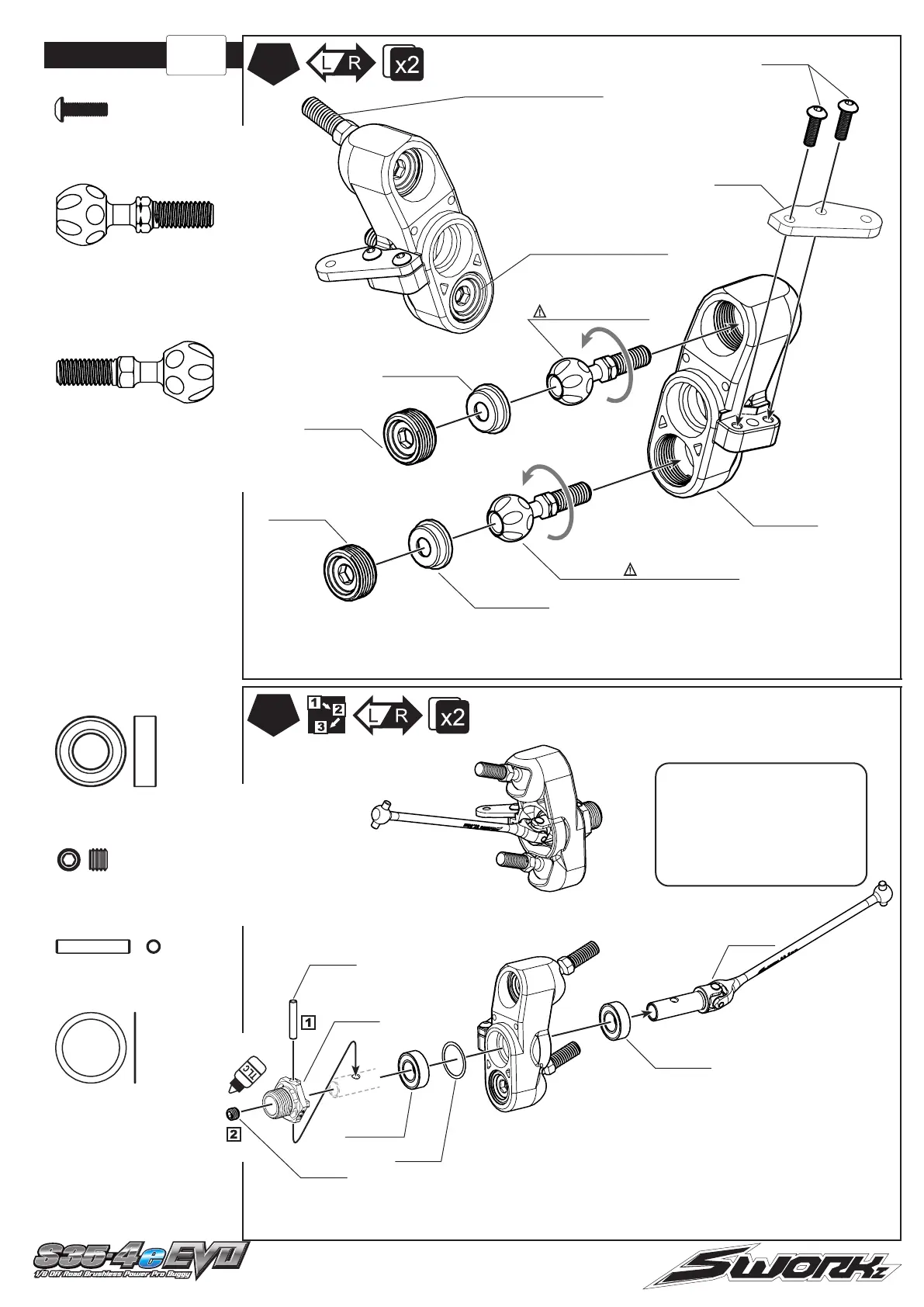

Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the
gap between the wheel hub and wheel knuckles.
Standard suggestion is 1pc shim on the outside
between 8x16x5mm ball bearing and knuckle.
If the wheel hub still has big play with knuckle,
please try to put another shim in another side
between ball bearing and knuckle.
2503260-04
2503264A
2503260-04
330118A
348005
330118A
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
Left
Right
106002
M3x10mm Hex Socket OH/TP Screw
x4
338122R (Clockwise)
338122R (Clockwise)
338122R
S35/S350/Apollo Series
Lightened Steering Knuckle
Pivot Ball Turnbuckle (Clockwise)
x2
338122L
S35/S350/Apollo Series
Lightened Steering Knuckle
Pivot Ball Turnbuckle (Anti-Clockwise)
x2
338122L
( Anti-clockwise)
338122L ( Anti-clockwise)
OPTION:
SWC-218007A
S35 Series Evolution-CVA Drive Shaft
Set 92.5mm (1 Set)
SWC-218007D
S35 Series Advance-CVD Drive Shaft
Set 92.5mm (1 Set)
