the set up procedure outlined in a seperate document.

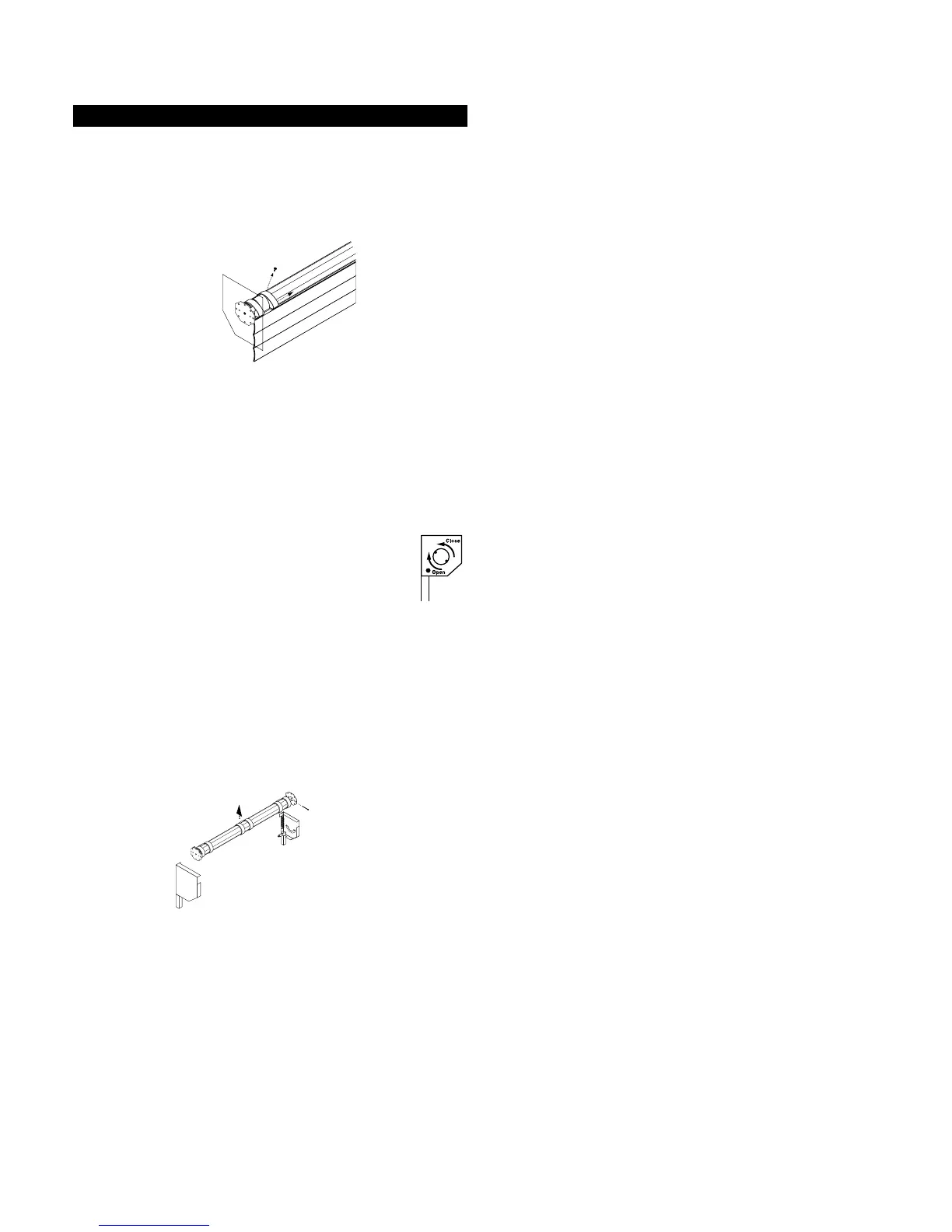

1) Lower the curtain to the fully closed position.
2) Disconnect the curtain from the axle.
3) If you would like to use the curtain again you should cover the
axle with bubble wrap or similar packaging material to avoid
damaging the curtain when you remove it.
4) Remove the curtain by lifting it up and over the axle.
5) If the axle contains an anti-fall back spring the tension must
be removed from the spring before attempting to remove
the axle. To remove the tension you must rotate the axle in
the direction which would open the door the number of turns
stated on the label provided.
6) Isolate the mains power then disconnect the motor
leads from the control unit.
7) remove screws securing motor octagonal fixing plate
and lever out retaining tabs with a screwdriver.
8) Remove split pin from dummy end shaft and slide shaft free of
fixing plate.
9) Lift the axle assembly out.
10) Unfasten and remove the guide rails, end plates and fascia (if
supplied).
12
