6

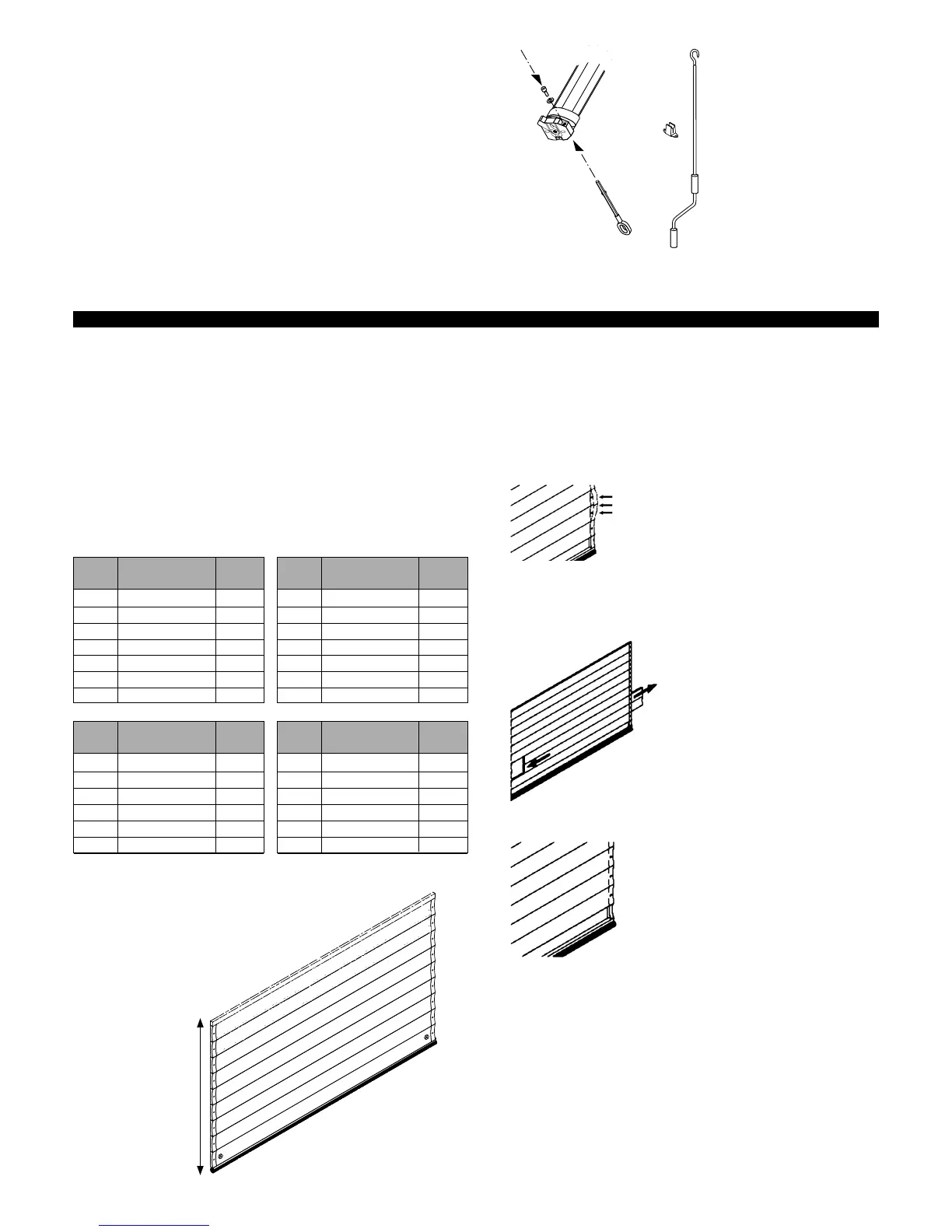

A) Standard Manual Override
If this door has end plates that are not fitted above the opening
and it is compliant with LPS1175 then a plastic tube must be fitted
over the rigid eye before it is inserted into the motor and secured
in place.
i) insert override eye through hole in motor adjacent to limit
adjusters
ii) insert and tighten the holding screw and washer from above
iii) hook crank handle to eye
iv) secure clear of shutter with crank handle clip
Standard
Manual Override
B) Optional external low level override
Detailed installation instructions are supplied in the low level over-
ride kit.
The external low level override is not compliant with LPS 1175, a
battery backup must be ordered when required.
7. CURTAIN ADJUSTMENT (REDUCING HEIGHT/MAKING REPAIRS)
The curtain needs to be the correct height for the door to lock
properly (if too tall remove slat(s) - If too short notify supplier).
The optimum curtain height finishes midway up the end plate to
ensure the locking mechanism engages.
Check you have the correct number of slats in the curtain for the
guide height (particularly if you have shortened the guide height)
and adjust the curtain accordingly.
The number of slats shown is the number of foam filled slats
only. The curtain height shown includes the bottom slat and the
extruded top slat.
Curtain height =
Curtain slats
+ Extruded top slat
+ Bottom slat
i) Roll out the curtain on a flat and protected surface, such as
bubble wrap and/or cardboard packaging in which the curtain
was delivered.
ii) Unscrew webbing from every slat which needs to be removed
or replaced, gently lifting the webbing away from the surface
of the slat.
iii) Slide out damaged slats and replace with new slats. Press
down webbing and screw to the new slat.
iv) If the number of slats has been reduced, trim the webbing
accordingly and carefully melt the cut ends to prevent fraying.
REMOVE SCREW
LIFT WEBBING
REMOVE SCREW
SLIDE BACK
NEW SLATS
SLIDE OUT
DAMAGED
SLATS
PRESS
DOWN
WEBBING
RE-SCREW
8 x 1/2 FLANGE HEAD SELF-
TAPPING SCREW
21 1769 300
22 1847 300
23 1926 300
24 2004 300
25 2083 300
26 2161 300
27 2240 300
SLATS CURTAIN HEIGHT END
PLATE
28 2318 300
29 2397 300
30 2475 300
31 2554 300
32 2632 300
33 2711 350
34 2789 350
CURTAIN END
SLATS HEIGHT PLATE
35 2686 350
36 2946 350
37 3025 350
38 3103 350
39 3182 350
40 3260 350
SLATS CURTAIN HEIGHT END
PLATE
41 3339 350
42 3417 350
43 3496 350
44 3574 350
45 3653 350
46 3731 350
CURTAIN END
SLATS HEIGHT PLATE
