Connect the pedal sensor to the harness

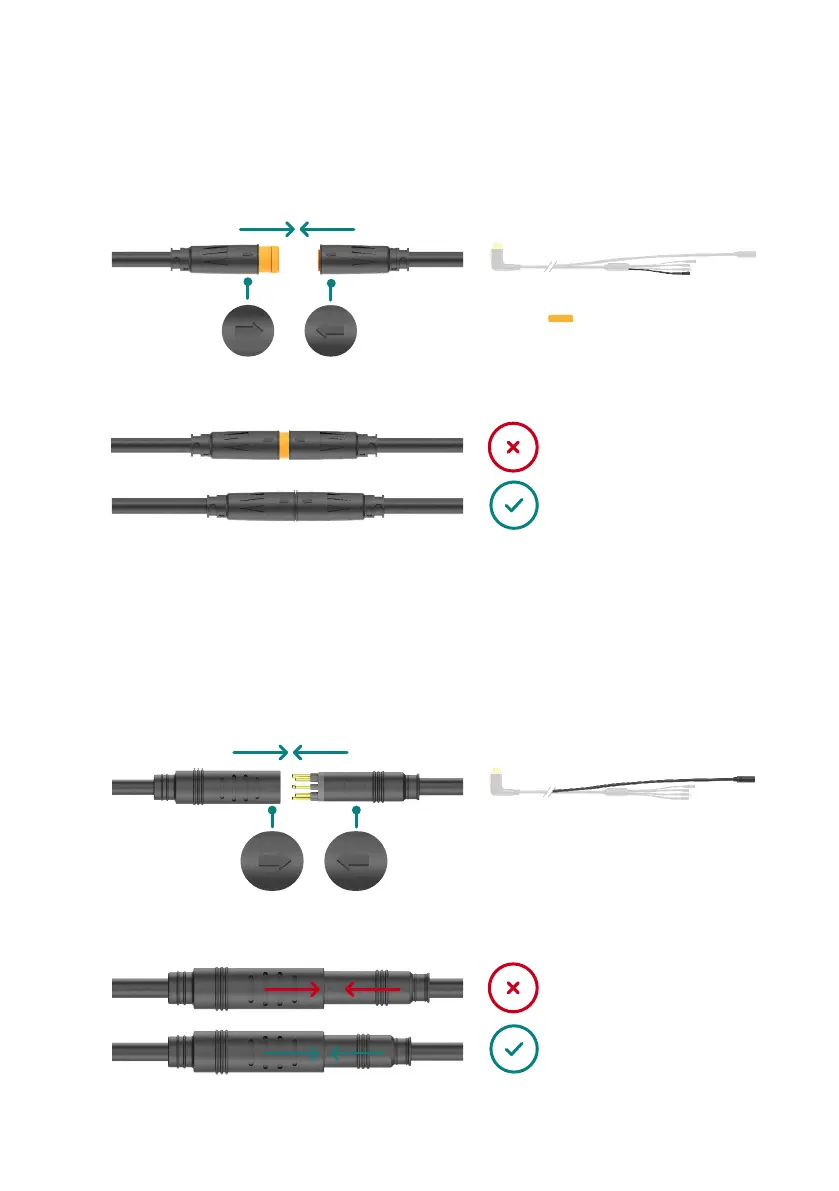

2.1 To connect the waterproof connector, find the arrow on each connector and align.
Once the arrows are lined up, push together until no colour is visible.
3. Connect the motor cable to the harness
3.1
To connect the waterproof connector, align the arrows and push together until the
arrows touch and align on both ends.
Colour visible
No colour visible
Arrows aligned
Arrows not aligned
Pedal Sensor
