3.3 Folded

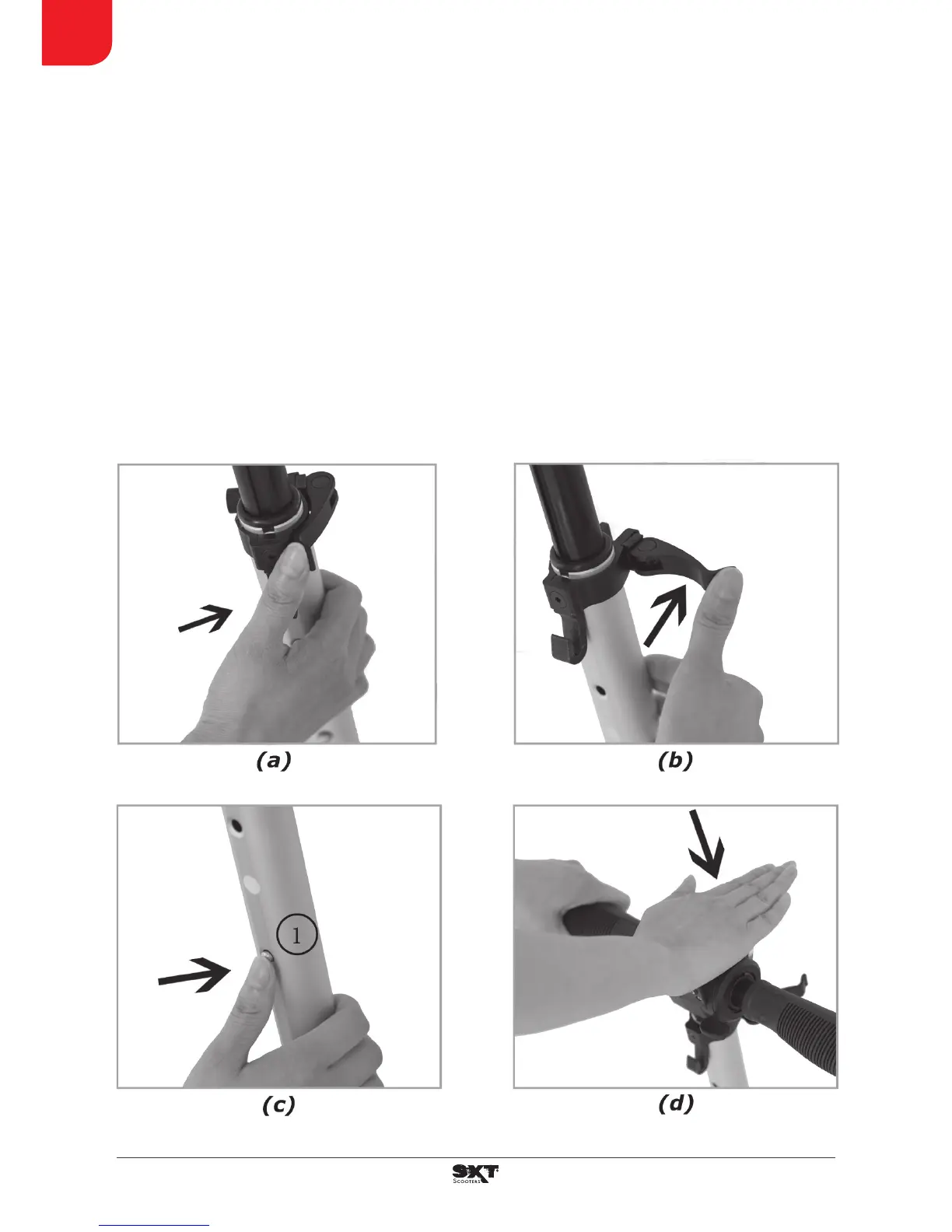

1. Open the quick release as shown in figure (a & b).
2. Press button button 1 shown in Figure (c) and puch down the handlebars like shown in figure (d).
Close the quick release.
3. Hold the handlebar with both hands, press buttons (1) shown in figure (e). Pull out the handlebar
grips up to the maximum and fold downwards like in figure (f).
4. Press the metal pin button, shown in figure (g), and continue folding the scooter until the folding
hook reaches the opening located on the rear brake fender as detailed in figure (h).
5. Show the fully folded scooter, figure (i).
