SY Electronics SY-MUHD-44 User Manual

SY-MUHD-44 & SY-MUHD-88
www.sy.co.uk 4

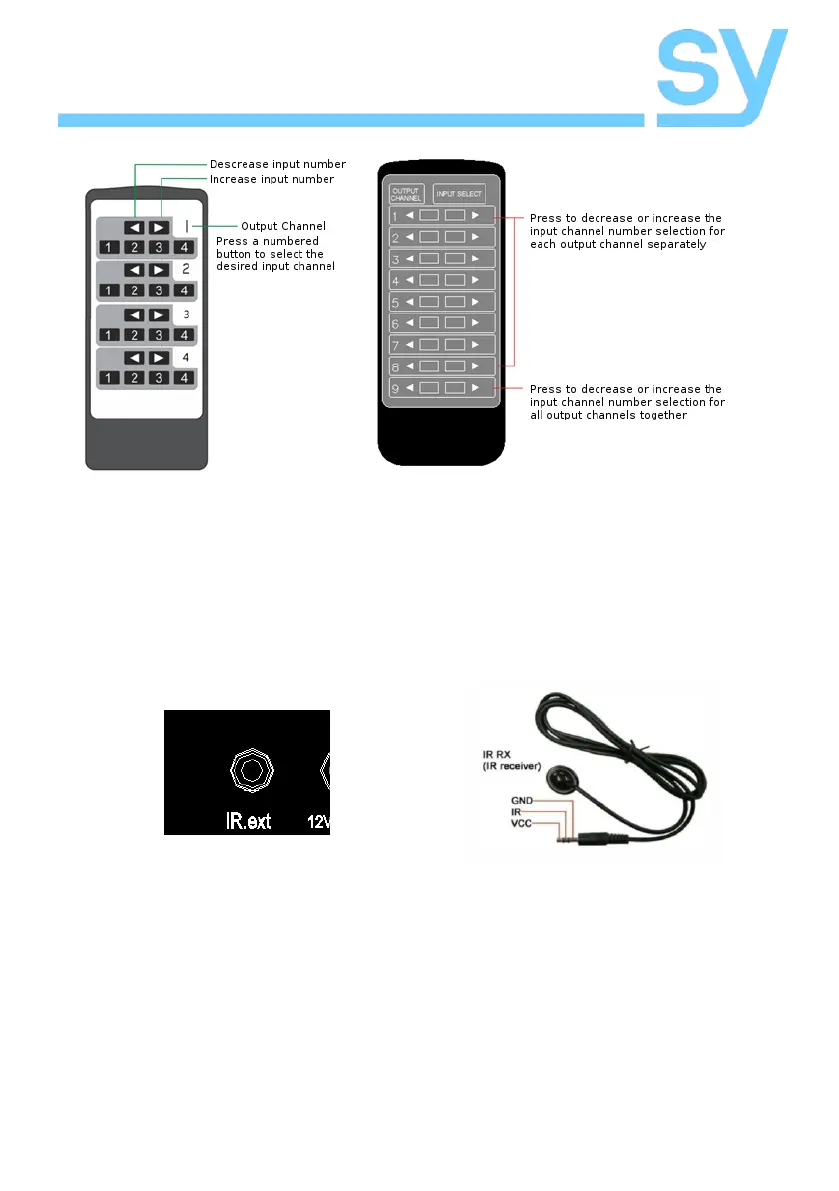

Local IR Control
Figure 3 - MUHD-44 IR Control
Figure 4 - MUHD-88 IR Control
The HDMI routing of the matrix can also be controlled by using the IR remote supplied with the product.
The left arrow button decrements to the next lower input port, and the right arrow increments to the next
input port.
The IR remote controller for the SY-MUDH-44 also allows direct selection of the inputs for each output.
The IR remote control for the SY-MUHD-88 allows the user to increase or decrease all eight of the inputs
source selections simultaneously with a single button press.
The supplied IR receiver cable can be used to provide a different receiver position. Simply plug the cable into
the IR Ext socket on the rear of the matrix switcher.
