Press and hold button 3 for 3 seconds to save the setting.

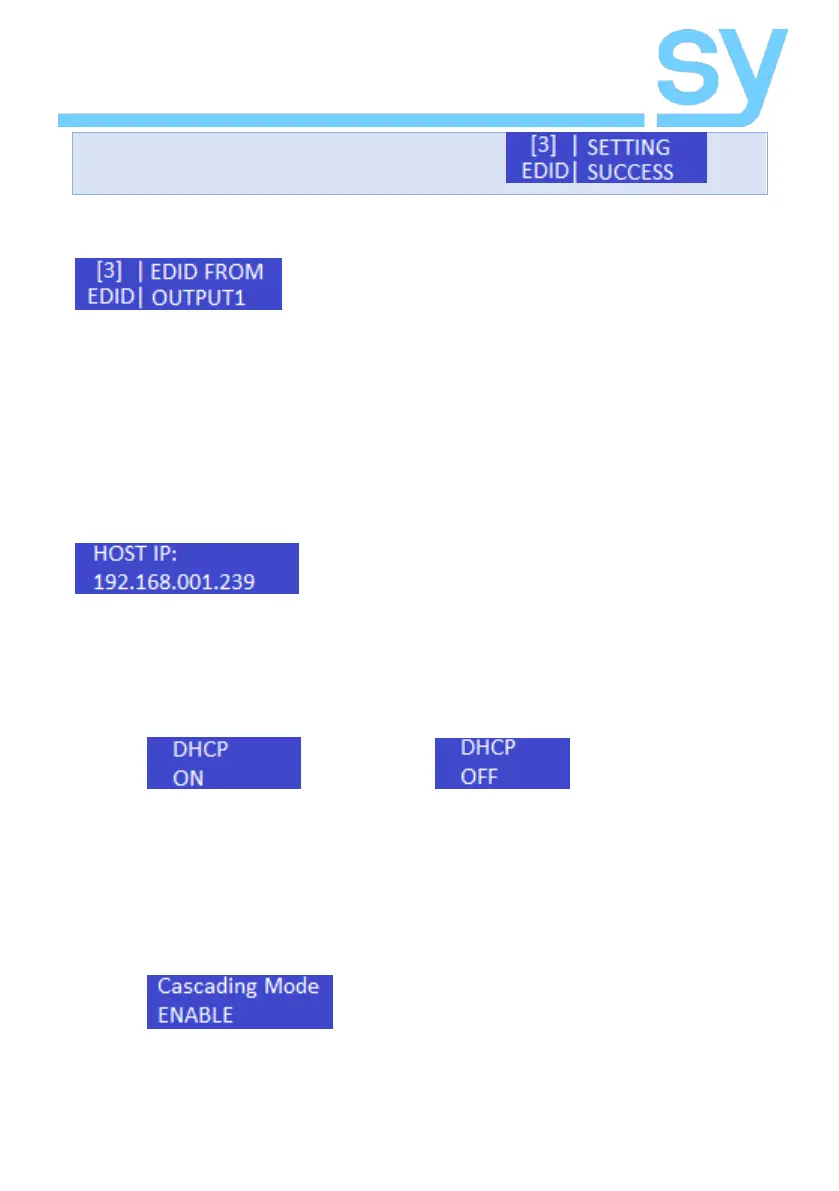

When the LCD shows the following text, or similar:
Then pressing and holding button 3 for three seconds will make the matrix switcher read the EDID from the
display device connected to the selected HDMI output and save it to the input chosen as the first step in the
above table.
Please always be aware that the EDID setting of each input is independent and that, therefore, each input
may need to be programmed separately.
Display IP Information
Press and hold buttons 3 and 4 for three seconds to display the current IP settings. The screen will change
every three seconds to display the next IP setting, but will always begin with the current IP address of the
matrix:
In order to prevent potential IP problems arising, most of the IP settings can only be programmed using
RS232 commands.
Changing the DHCP Setting
Press and hold buttons 1 and 3 for three seconds to change the DHCP setting. The LCD will show the new
DHCP setting:
or
Setting the Cascading Mode
When the cascading mode is enabled the matrix will not read the EDID or Hot Plug Status from any display
device and will always output the HDMI signal. This mode should only be enabled if the installation is
experiencing some HDMI problems and enabling this mode solves the problem. If the problems persist when
the cascading mode is enabled then there may be a handshaking issue between the matrix and the display
device.
The cascade mode is enabled when the LCD shows the following:
