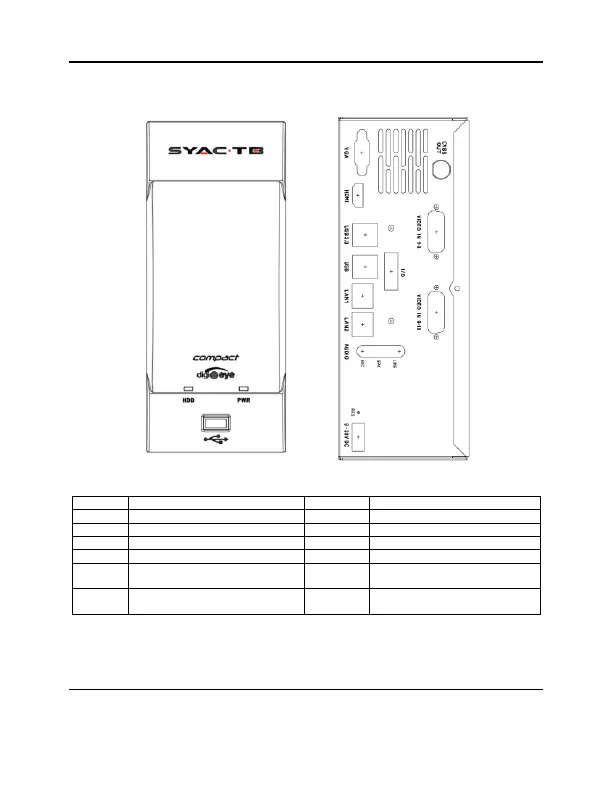

2. System description
HDD
Hard disk status LED
LAN1
Primary network port RJ45
PWR
Power supply status
LAN2
Secondary network port RJ45
VGA
VGA video output
AUDIO
Mic/Line=inputs, Spk=output
HDMI
HDMI video output
VIDEO IN
Video inputs BNC (CVBS)
CVBS
CVBS video output (optional)
I/O
Alarm input / relay output
USB
USB 2.0 ports (1 front, 2 rear)
RES
Software reset button (only in
case of emergency)
USB 3.0
2 USB 3.0 ports (blue)
DC
Power connection 9-30Vdc
(60W)
USB
