SYAC-TB DIGIEYE COMPACT - Installation; Monitor Output Configuration; USB and Network Connectivity

DIGIEYE COMPACT Informazioni di base
EN-UM-DGI.CO2.A
Rev. 1.4
Page 5

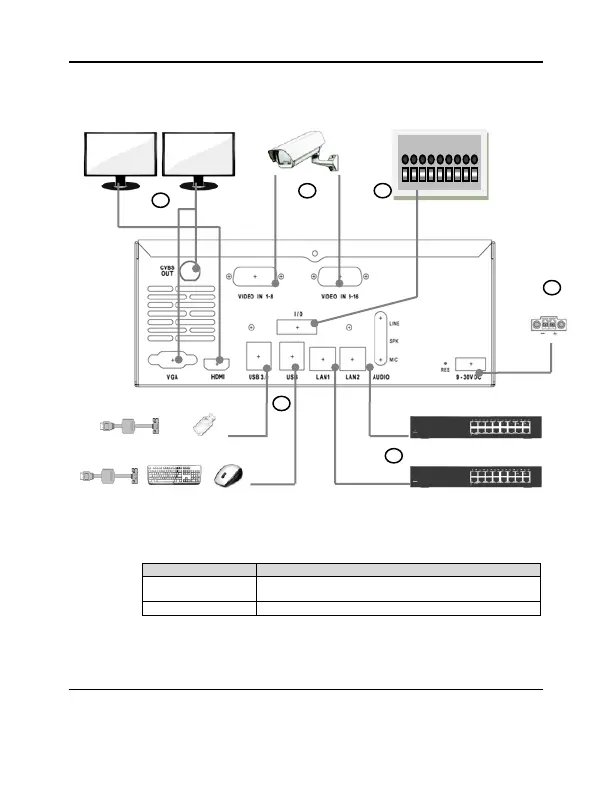

4. Installation
1. Primary Monitor (MAIN) / Secondary (AUX)
DigiEye is able to control up to 2 video monitor outputs simultaneously.
Monitor
Function
Primary (main)
Configuration/Maintenance, Video Monitoring and
alarms
Aux (secondary)
Video display live/playback (multi-split)
The unit is provided with 1 digital HDMI video output, 1 VGA analog video output
and optionally 1 CVBS output. Optional video adapters are available to connect
different types of monitor interfaces using video adapters.
1
2
4
6
5
3
Primary Network (f.ex. Centralization)
Secondary Network (f.ex. IP Cameras)
1
2
3
4
5
6
7
8
9
Primary
Monitor
MAIN
Secondary
Monitor
AUX
conv.USB-RS485
(COM4)
USB storage
conv.USB-RS485
(COM3)
Keyboard / mouse USB
