Product Overview

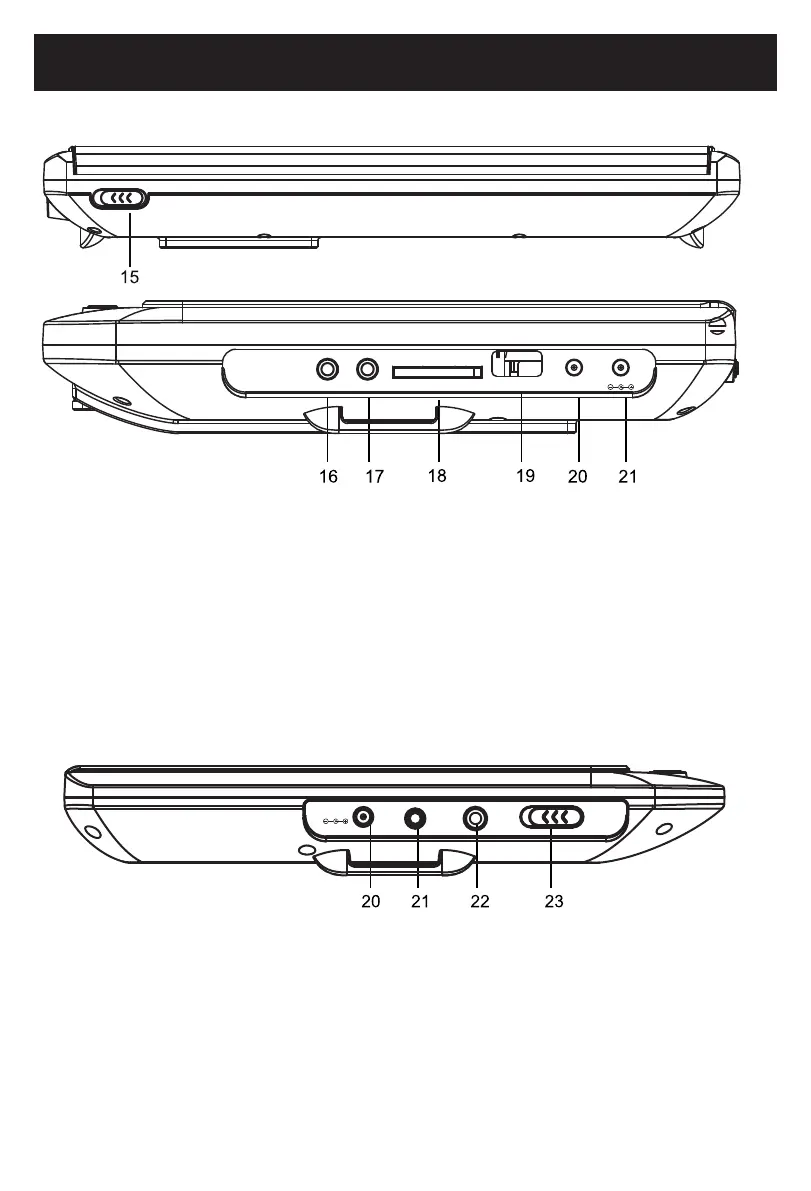

15. ON/OFF: PowerON/OFFswitch.SlidetoONpositiontopoweron,slidetoOFFpositionto
shut off.
16. PHONE:Headphonejack.
17. AV OUT:Audio/Videooutputjack.
18. Card slot.
19. USB: USB port.
20. DC OUT:Toconnecttothesecondaryunit.
21. DC IN:DCinjack
20. DC IN: DCinjack,connecttotheDCoutjackonmainunitbythesuppliedDCconnection
cable.
21. AV IN:Audio/videoinjack,connecttotheAVOUTJackonthemainunitbythesuppliedAV
connection cable.
22. PHONE:Headphonejack.
23. ON/OFF:PowerON/OFFswitch.SlidetoONpositiontopoweron,slidetoOFFpositionto
shut off.
SECONDARY UNIT:
MAIN UNIT:
SD/MMC:
OFF ONPOWER
PHONE AV OUT
USBSD/MMC CARD
DC OUT
DC IN
8
DC IN
AV IN PHONE POWER
OFF ON
