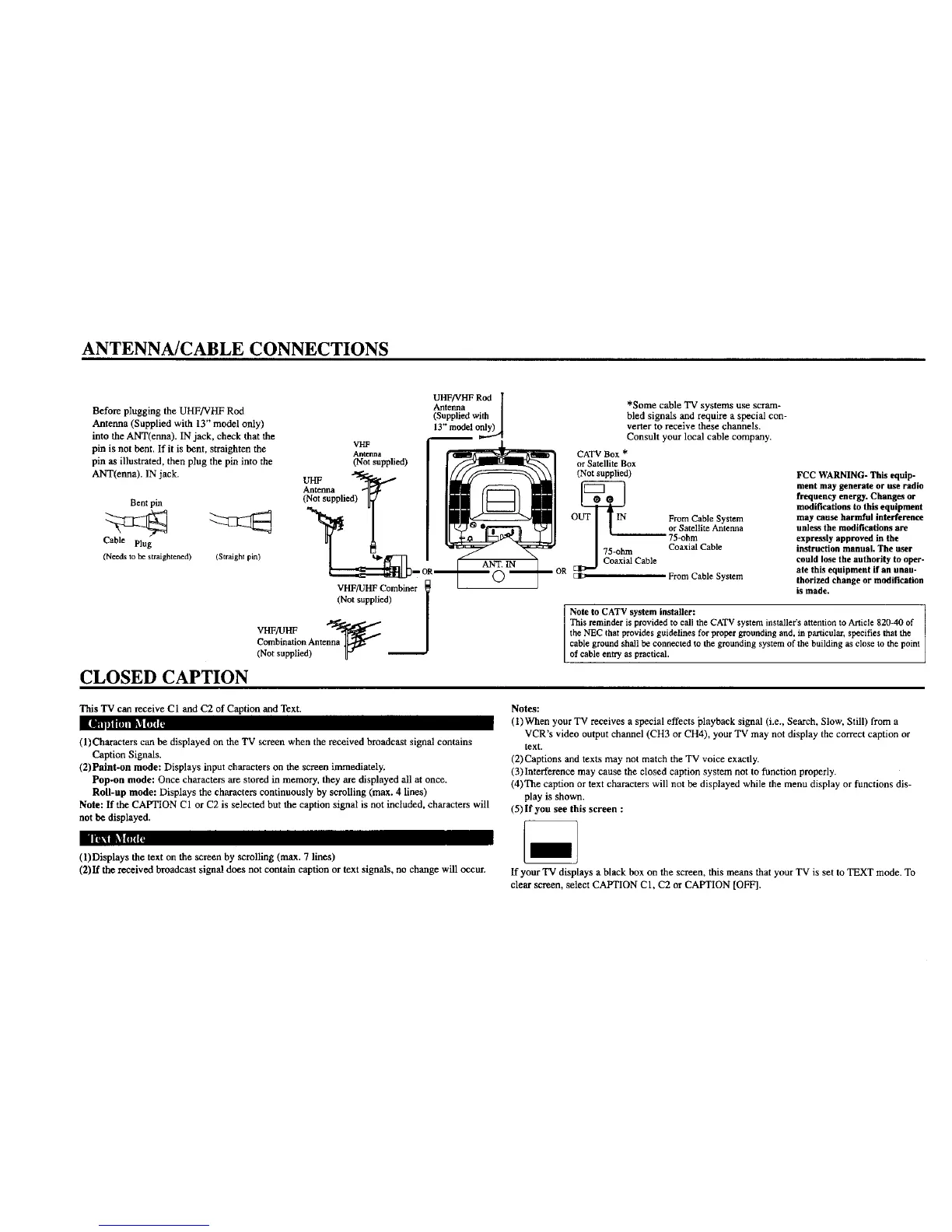

ANTENNA/CABLE CONNECTIONS
Before plugging the UHF/VHF Rod
Antenna (Supplied with 13" model only)
into the ANT(enna). IN jack, check that the
pin is not bent. If it is bent, straighten the
pin as illustrated, then plug the pin into the
ANT(erma). IN jack.
Bent pin
Cable Plug
(Needsto be straightened) (Straight pin)
CLOSED CAPTION
VI-IF
Antenna
(Not supplied)
Antenna
(Not supplie
VHFAIFIF]_:_.._Combiner T
(Not supplied)
VHF/UHF
Combination Antennanna
(Not supplied) _
UHFNHF Rod l
wi, I
13" model only_
*Some cable TV systems use scram-
bled signals and require a special con-
verter to receive these channels.
Consult your local cable company.
CATV Box *
or Satellite Box
(Not supplied)
E
OUT
3
IN
75-ohm
Coaxial Cable
From Cable System
or Satellite Antenna
Coaxial Cable
FCC WARNING- This equip-
ment may generate or use radio
frequency energy. Changes or
modifications to this equipment
may cause harmful interference
unless the modifications are
expressly approved in the
instruction manual. The user
could lose the authority to oper.
ate this equipment if an unau-
thorized change or modification
is made.
From Cable System
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies thatthe
cable ground shall be connected to the grounding system of the building as close to the point
of cable entry as practical.
This TV can receive CI and C2 of Caption and Text.
ilgllll IBII_! [ffl i
(l)Characters can be displayed on the TV screen when the received broadcast signal contains
Caption Signals.
(2)Paint-on mode: Displays input characters on the screen immediately.
Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)
Note: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will
not be displayed.
Notes:
(1) When your TV receives a special effects _playback signal (i.e., Search, Slow, Still) from a
VCR's video output channel (CH3 or CH4), your TV may not display the correct caption or
text.
(2)Captinns and texts may not match the TV voice exactly.
(3)Interference may cause the closed caption system not to function properly.
(4)The caption or text characters will not be displayed while the menu display or functions dis-
play is shown.
(5) If you see this screen :
IIITI mr|111",,
(1)Displays the text on the screen by scrolling (max. 7 lines)
(2) If the received broadcast signal does not contain caption or text signals, no change will occur. If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C1, C2 or CAPTION [OFF].
