Fig. 1
INTERIOR
WALL
Wooden Windows
WINDOW SILL
Air Directional Louvers
The louvers will allow you to direct the air flow Up
or Down(on some models) and Left or Right
throughout the room as needed. Pivot horizontal
louvers until the desired Up/Down direction is
obtained.
Move the Levers from side to side until the desired
Left/Right direction is obtained.
Levers
Air Direction

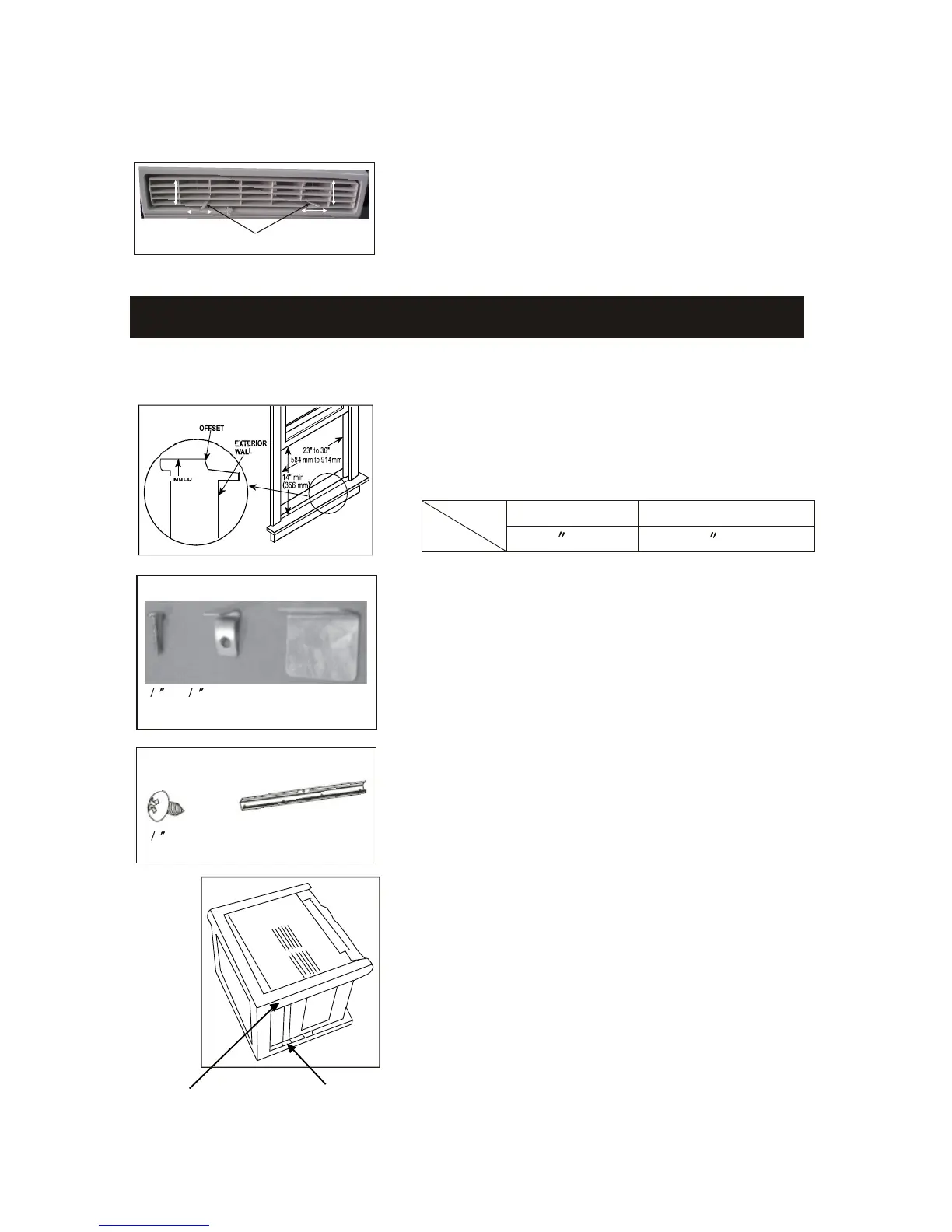

INSTALLATION INSTRUCTIONS
Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches(584mm to 914mm) (See Fig.1).
Lower sash must open sufficiently to allow a clear vertical
opening of following size (see Table 1).Side louvers and the
rear of the AC must have clear air space to allow enough
airflow through the condenserfor heat removal. The rear of
the unit must be outdoors, not inside a building or garage.
NOTE: Save Carton and these Installation Instructions
for future reference. The carton is the best way to store unit
during winter, or when not in use.
3 4 (or 1 )
Screws
(7)
2
Lock Frame
(2)
Sash Lock
(1)
Mounting Hardware
TOOLS NEEDED:
Phillips Screw Driver
Drill(If pilot holes are needed)
CAUTION: When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and rear coils.
Top Rail Hardware
3 8 Screws
(4)
Top Rail
(1)
Before installing unit, the top rail must be assembled
on the unit (For <10000Btu/h models only).
Tool Needed: Phillips Screwdriver
A: Remove the air conditioner from the carton and place
on a flat surface.
B:
Remove top rail from the rear of the packaging material
as shown in Fig. A.
10
NOTE: The top rail hardware and the following Fig.A,
Fig.B and Fig.C are not applicable to the units more
than 10000Btu/h.
Packaging
Fig.A
Top Rail
Model
Size
5000~8000Btu/h
10000~12000Btu/h
14 (356mm)
15-1/2 (394mm)
Table 1
To Next Page
