C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B

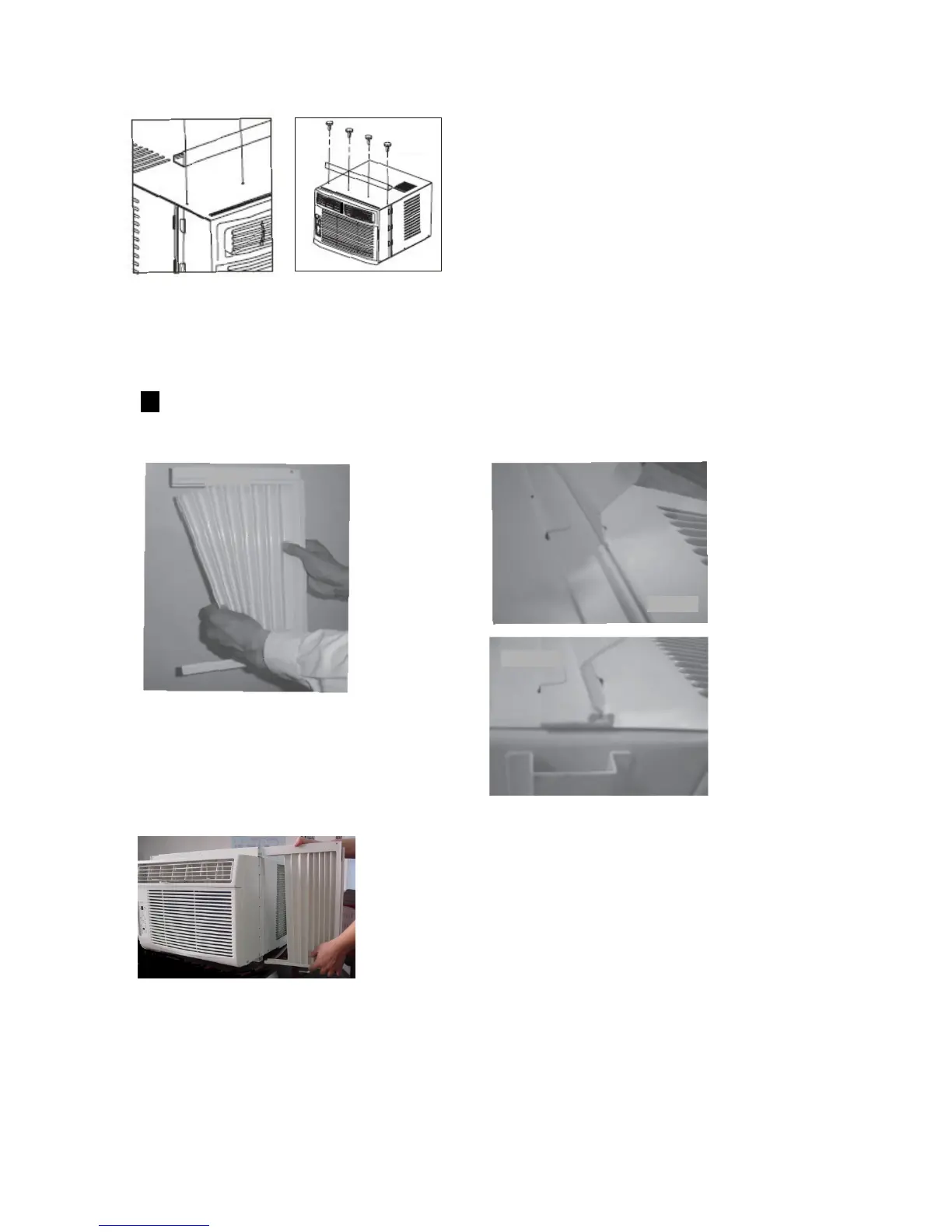

Fig.B
Fig.C
D: Secure the top rail to the unit with the 3/8
Screws as shown in Fig.C.
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.
,,
HOW TO INSTALL
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear
(5/16 ). This is
Place unit on floor, bench or table. Install the accordion filler panels into the left and right wings.
necessary for proper condensed water utilization and drainage. If you are
not using the Side Panels for any reason, this pitch to the rear must be maintained.
,,
1
Fig.1
A. Hold the Accordion Panel
in one hand and gently
pull back the center to free
the open end. See Fig.1.
Fig.2A
Fig.2B
B. Slide the free end (I section)
of the panel into the cabinet
as shown in Fig. 2A, 2B & 3.
Slide the panel down., Be
sure to leave enough space
to slip the top and bottom of
the frame into the rails on
the cabinet.
Fig.3
11
Attach the accordion panels to the sides of the unit and then secure (slide) the proper righ and left
wings into top and bottom rails.
