Sym JET 100 series User Manual

22
10.Inspection and maintenance before riding

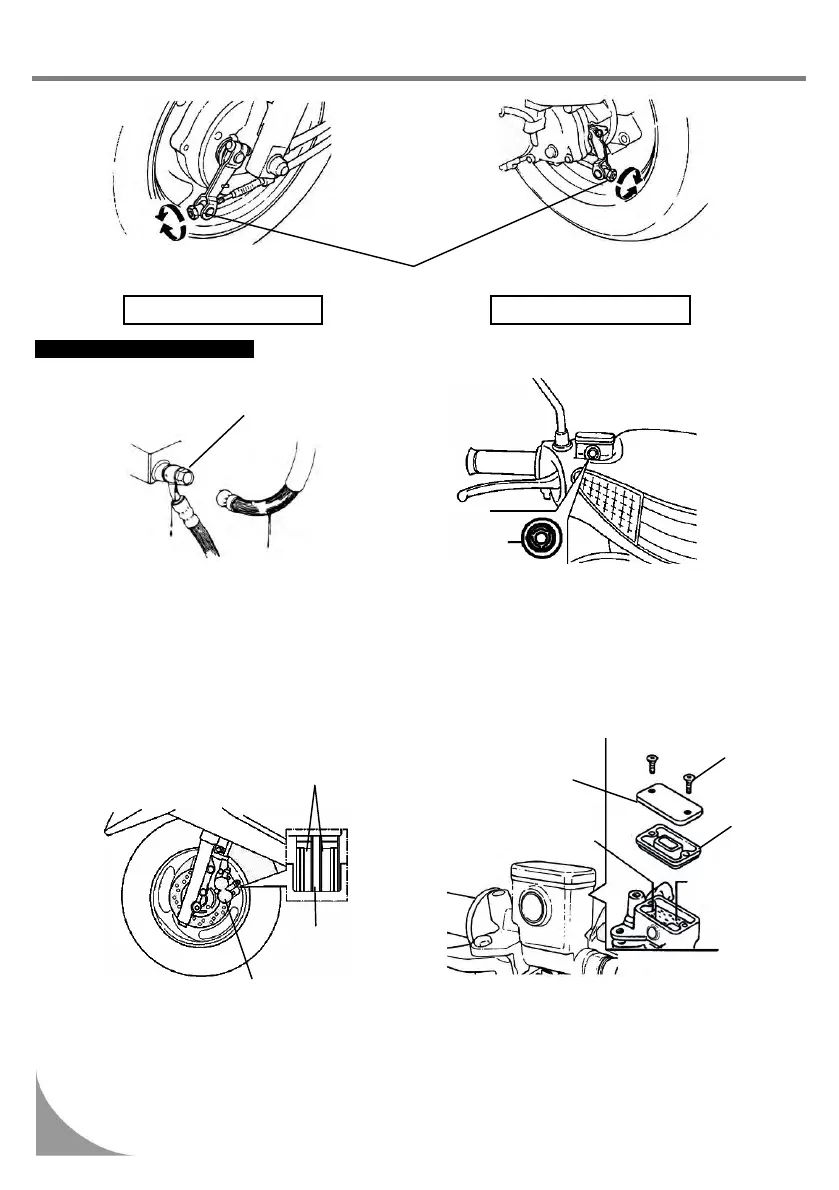

DISK BRAKE INSPECTION [Applicable for model equipped with disc brake.]
! Visual Inspection for leakage or damage. If
there is any, take your scooter to SYM
Authorized Dealer or Franchised Dealer for a
check or repair.
! Park the scooter on a level ground, and check
if fluid level is under the “LOWER” mark.
Recommended Brake Fluid: WELL RUN
BRAKE OIL (DOT 3).
Che
ck the brake from behind the brake caliper. The brake pad must be replaced with new lining when
the brake pad wear limit reaches the brake disk.
Viewing window
Lower limit
Front wheel drum type
Rear wheel drum type
Adjustment nut
To increase
free play
To decrease free play
To increase
free play
To decrease
free play
Hose connection
Brake pad wear limit grooves
【ADDING BRAKE FLUID】
Screw
Master
cylinder
cover
Brake caliper
Brake disk
Upper
Diaphragm
Brake fluid

Sym JET 100 series Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Cooling System	Air-cooled
Transmission	Automatic
Engine Type	4-Stroke
