15. ELECTRICAL EQUIPMENT
15-14

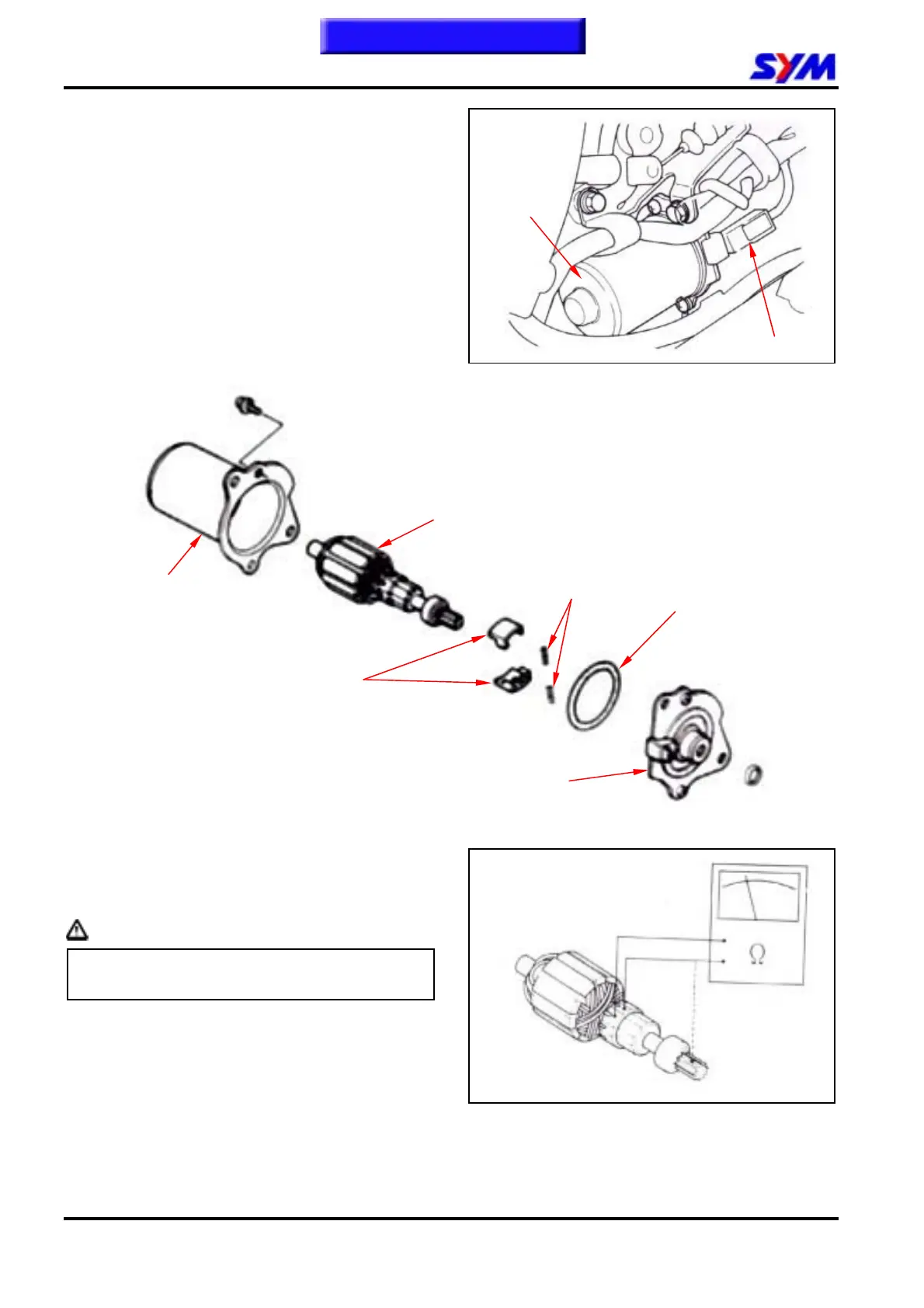

Starter Motor Removal/Disassembly
Remove body cover.
Remove bolt and oil pump control cable.
Disconnect starter motor harness connector.
Remove 2 bolts for separation starter motor and
gasket.
Remove 2 bolts for disassembly the starter
motor.
Armature Inspection
Check the armature for discoloration or other
damage. It may be short-circuit if dark surface
on the shifter found.
Caution
Do not clean the shifter surface with
sandpaper.
Check continuity 1) both the shifter surface and
shaft, 2) among the shifter surfaces. It can be
in continuity among the shifter surfaces, but both
the shifter surface and the shaft can not be in
continuity.
Starter Motor Re-Assembly/Installation
Re-assemble and install the starter motor in
reverse order of removal procedures.
O-ring
Motor housing
Armature
Carbon bracket
Spring
Front bracket
Starter motor
Connector
