8. FINAL DRIVING MECHANISM
8-5

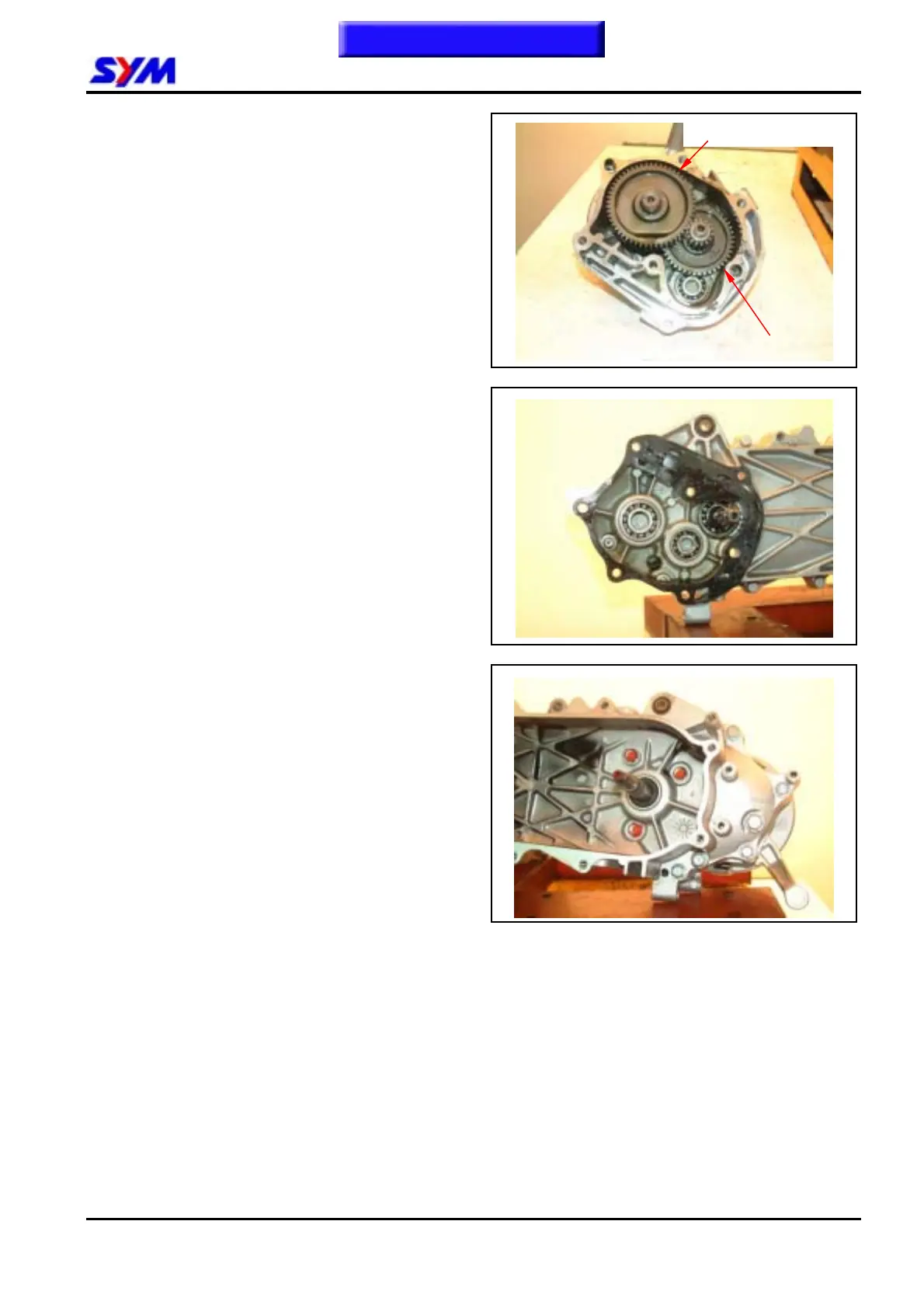

Install countershaft, final driven gear and thrust
washer.
Install new gasket and lock pin.
Install gearbox cover.
Install clutch/driven pulley assembly.
Install driven pulley, drive belt, and left
crankcase side cover.
Install body cover.
Install rear wheel.
Fill out specified oil quantity into gearbox.
Counter gear & shaft
Final driven gear & shaft
