SYM 8. V-BELT DRIVING SYSTEM/KICK STARTER ARM/STARTER CLUTCH
8-1
MECHANISM DIAGRAM....................8-1
MAINTENANCE DESCRIPTION ........8-2
TROUBLE DIAGNOSIS......................8-2
LEFT CRANKCASE COVER..............8-3
KICK STARTER ARM ........................8-3
DRIVING BELT...................................8-4
SLIDING PULLEY ..............................8-6
CLUTCH/DRIVEN PULLEY............... 8-9

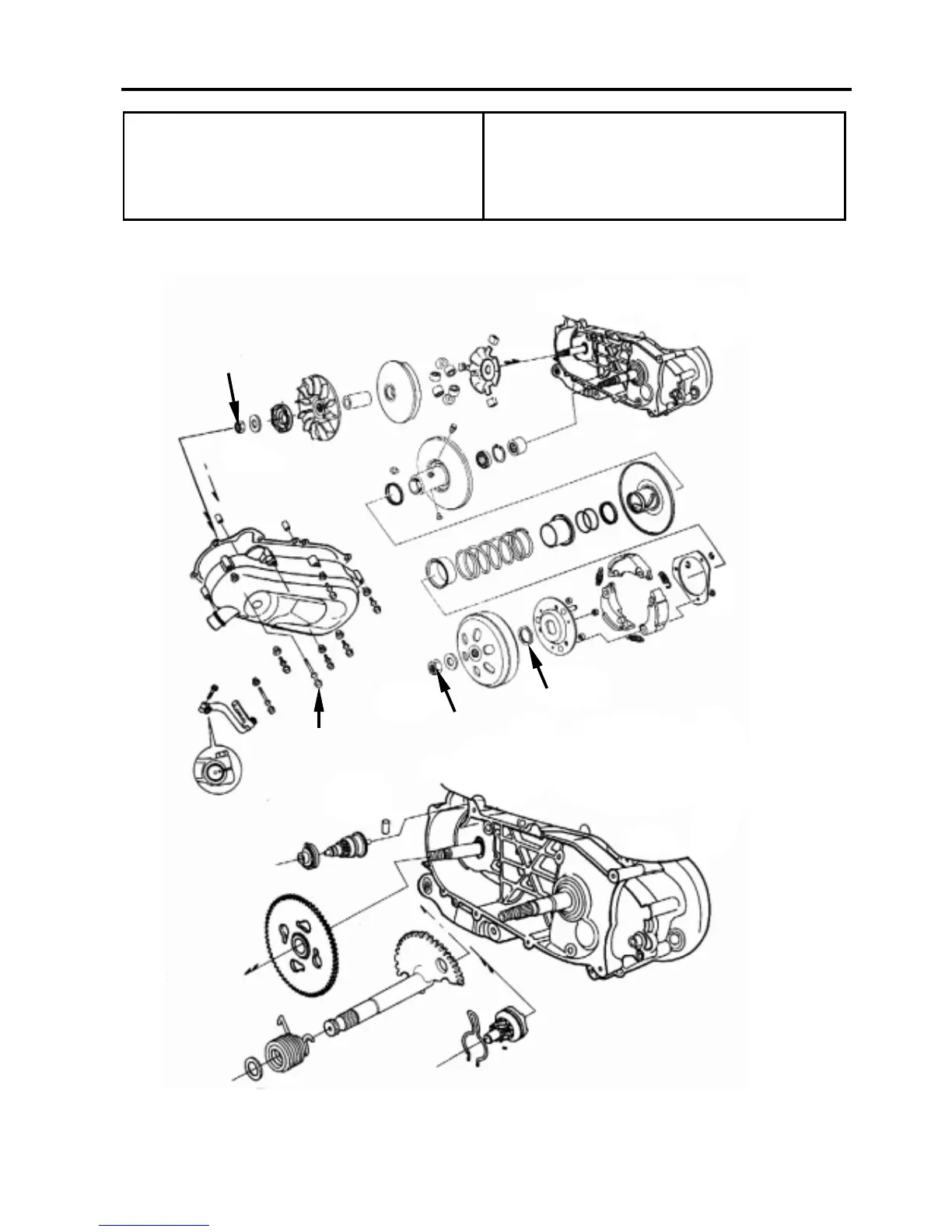

MECHANISM DIAGRAM
3.5~4.5kgf-m
5.0~6.0kgf-m
5.0~6.0kgf-m
0.8~1.2kgf-m
