Symetrix SX201 - Rear Panel Connectors

Rev 2.0, 9/15/94
5
3.2 Rear Panel Connectors
What
Description
POWER
5mm coaxial socket. Use Symetrix PS-2
power supply (16V ac, 500 mA), included
with domestic units. The PS-2 is both UL
and CSA certified. Accepts plugs with
2.5mm center pin (Switchcraft 760).
OUTPUTS
Balanced: 1/4 inch TRS jack, + 24 dBm
maximum level. 200-ohm source
impedance. (matches all balanced inputs
)
Unbalanced: 1/4 inch TS jack, +18 dBm
maximum level. 100-ohm source
impedance. (matches all unbalanced
inputs)
INPUTS
Preamp: 1/4 inch TRS jack, +12 dBu
maximum level. Ring connection on jack
connected to ground. 20 kilohm input
impedance. 30 dB gain.
Balanced/Unbalanced: 1/4 inch TRS
jack, + 18 dBu maximum level. 10 kilohm
balanced bridging. Disables preamp inpu
t
jack.
_______________________________________________________
CAUTION: Do not use any AC adapter other than
the Symetrix PS-2. Do not short the outputs. Do not
stick your finger(s) into a light socket.
_______________________________________________________

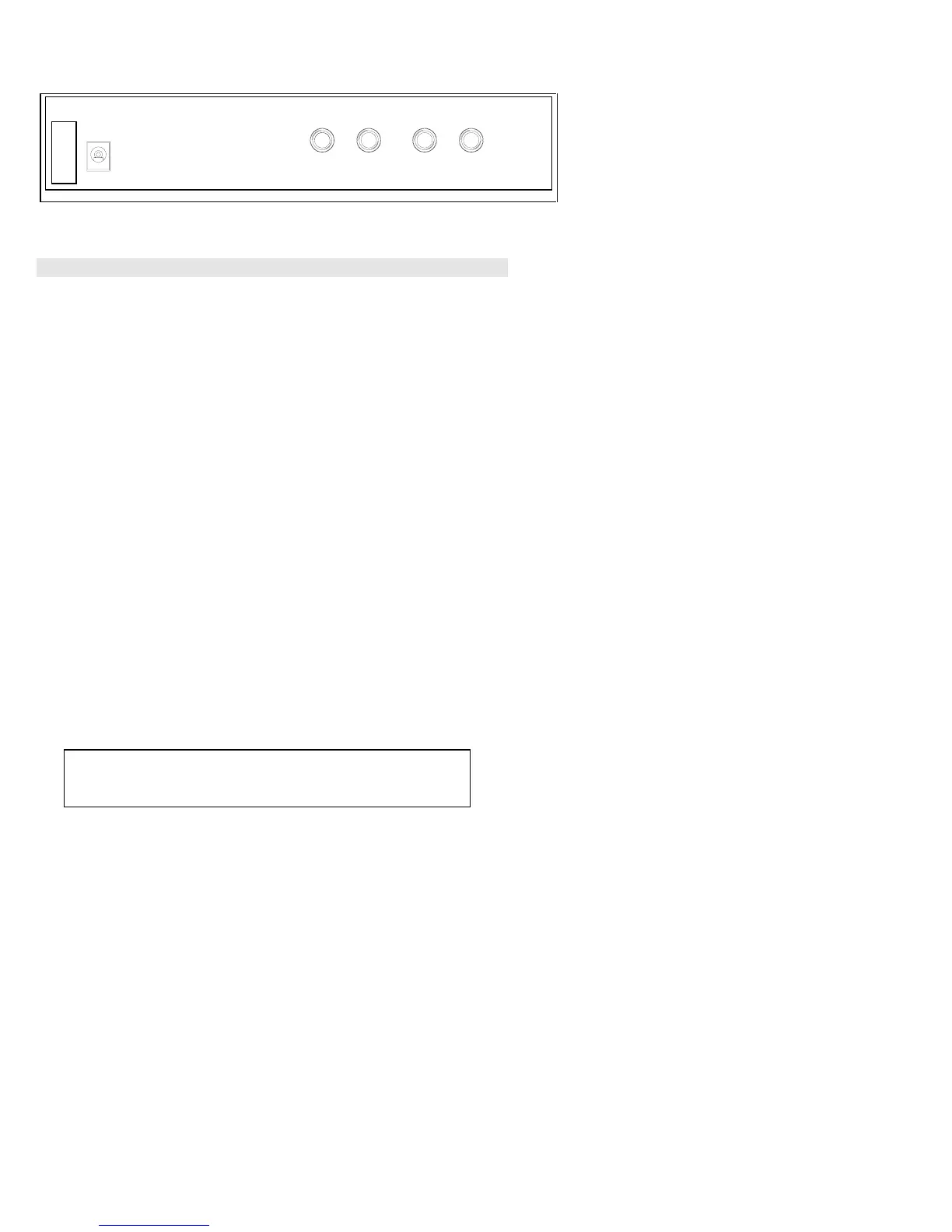

201 PARAMETRIC EQ/PREAMP
INPUT
BALANCED
UNBALANCED/
30dB GAIN
PREAMP INPUT
OUT
BALANCED
OUT
UNBALANCED
THIS PRODUCT CONTAINS NO USER SERVICEABLE PARTS.
MANUFACTURED BY SYMETRIX INC., SEATTLE, WA USA
S/ N
200mA
16VAC
POWER
