3. Cover with a layer of oil and water resistant coating (for example, 3M Scotchkote
Electrical Coating.
Note:
For specifics, please refer to the manufacturers instructions.

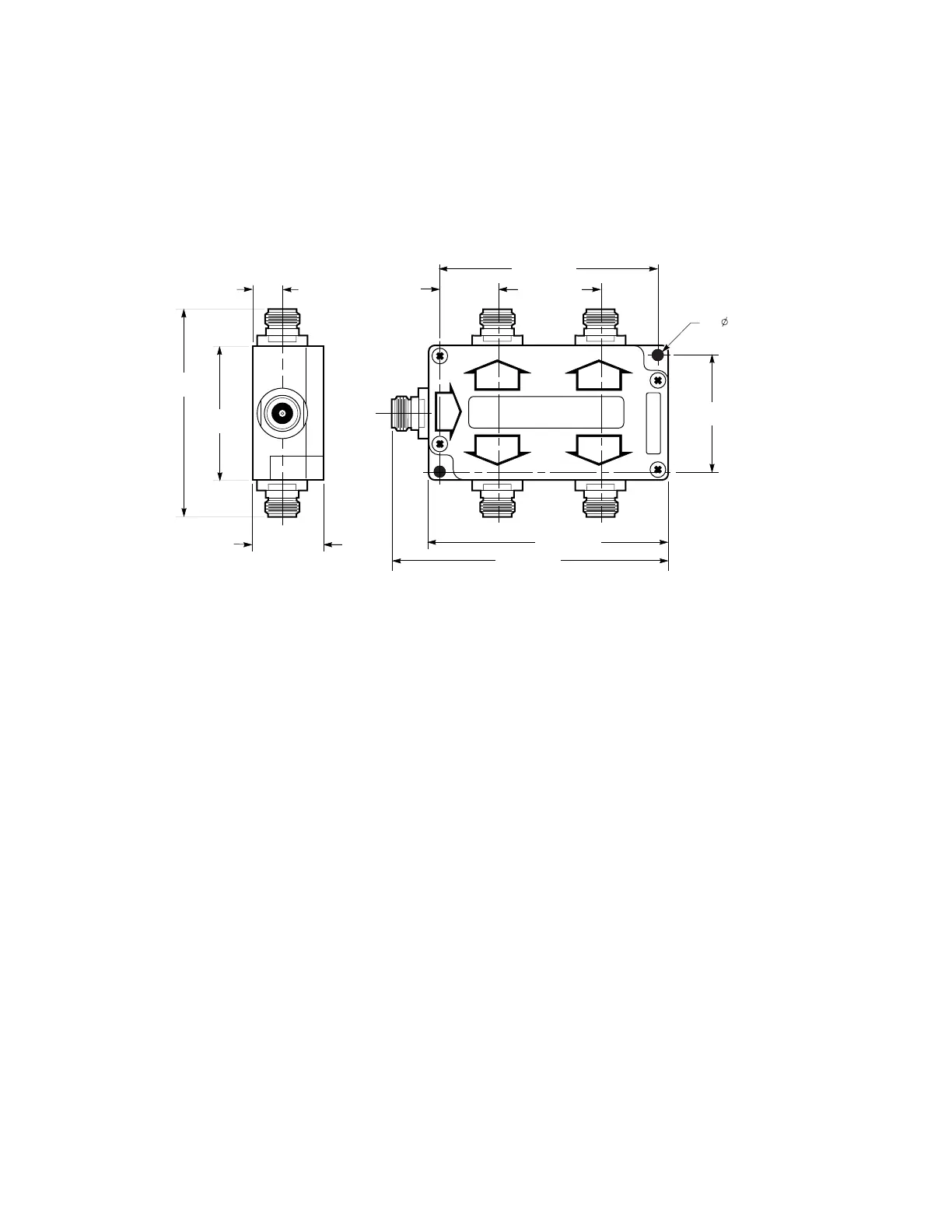

Dimensions of Distribution Amplifier
Figure 2 shows the major dimensions of the distribution amplifier.
115.0 mm
56.0 mm
2 x 4.4 mm Dia
mounting holes
105.0 mm
130.4 mm
50.0 mm
33.5 mm
64.0 mm
34.5 mm
14.5 mm
PORT 1
DC POWER
DC POWER
PORT 4
ANTENNA
INPUT
PORT 2
DC POWER
DC POWER
PORT 3
GPS DISTRIBUTION AMPLIFIER
58536A
94.8 mm
Figure 2. 58536A GPS Distribution Amplifier
7.0 Maintenance
No periodic maintenance is required for the distribution amplifier. However, it is
recommended that all components of the antenna system be checked periodically and
replaced, if necessary, as specified in your company procedures.
