SYNAPTICON SOMANET Node 1000 - Brake Power Output (STO;SBC)

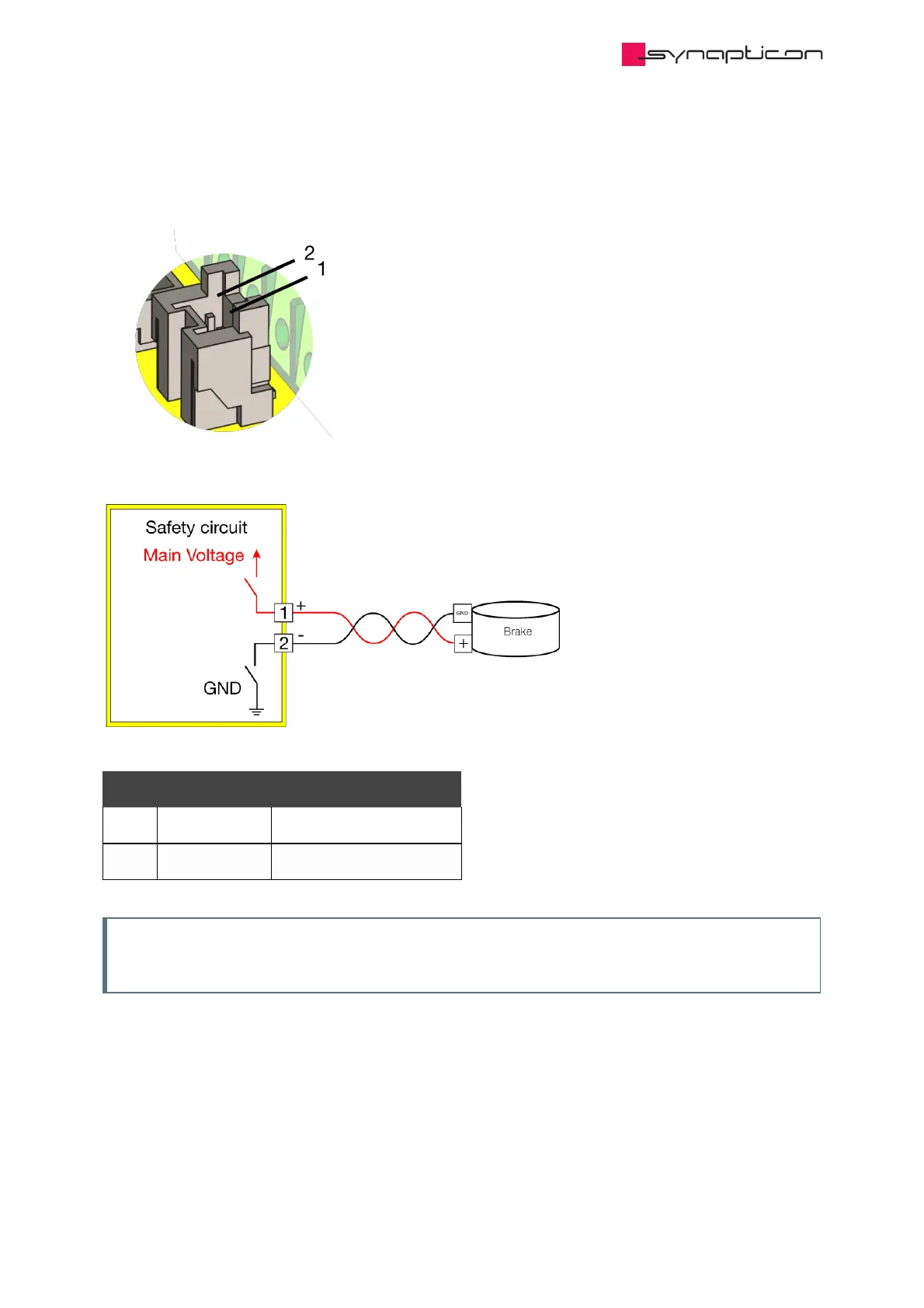

1.6.3.2.1 Brake power output (STO/SBC)
Pin # Designation Function
1 + Brake +
2 - Brake -
Note
The safe brake is PWM based and can be configured with the regular brake object.
