Connections
Physical connections and dimensions

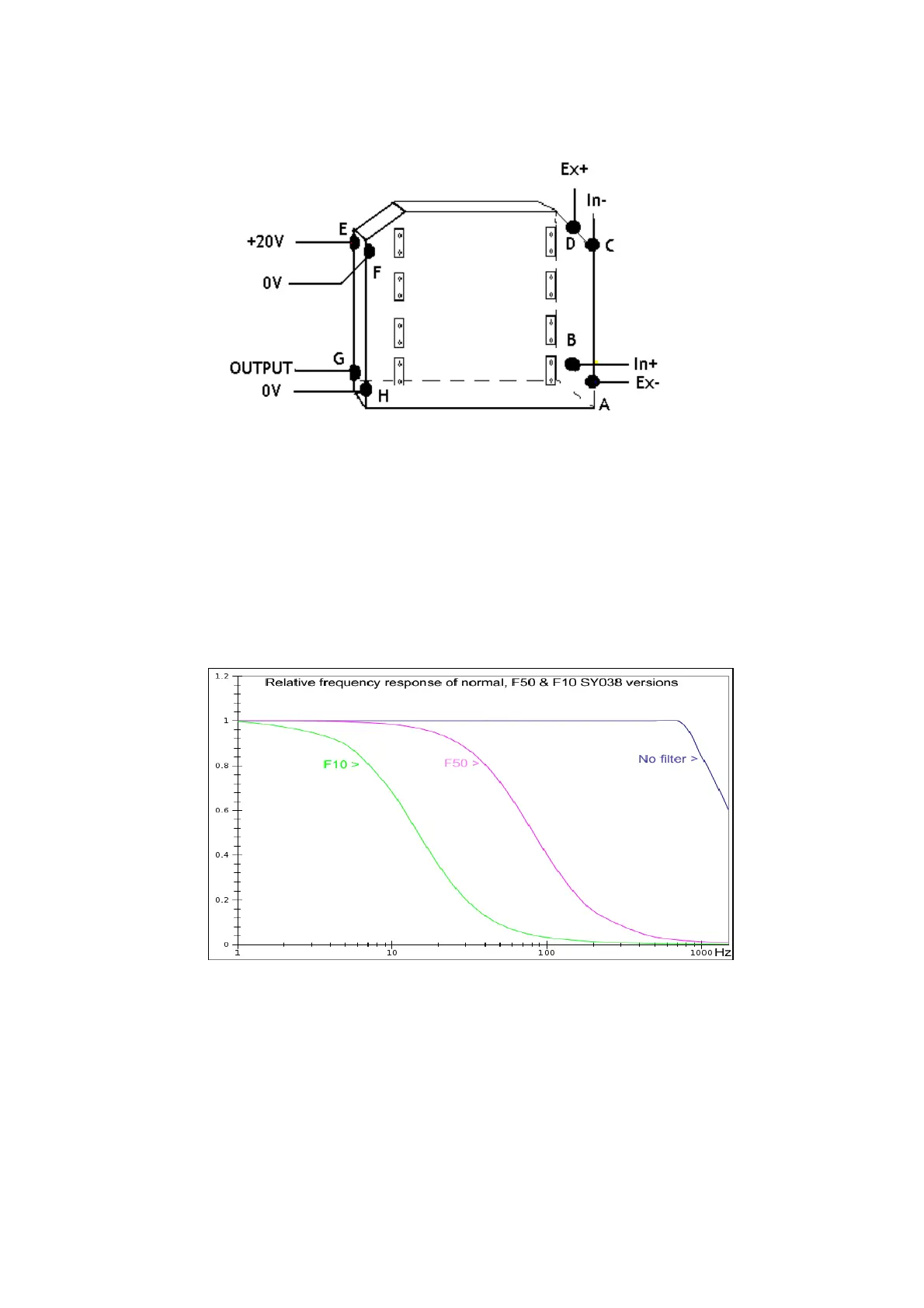

Fig 2: SY038 input/output connections
Physical dimensions: 72.5mm x 18mm x 62mm
At the maximum operating temperature 1 350Ω loadcell can be used.
Graphs illustrating bandwidth, typical operating temperature of voltage out and current out
versions
SY038 BANDWIDTH
Graph 1: SY038 frequency response
