Thermal Stability
SY038I

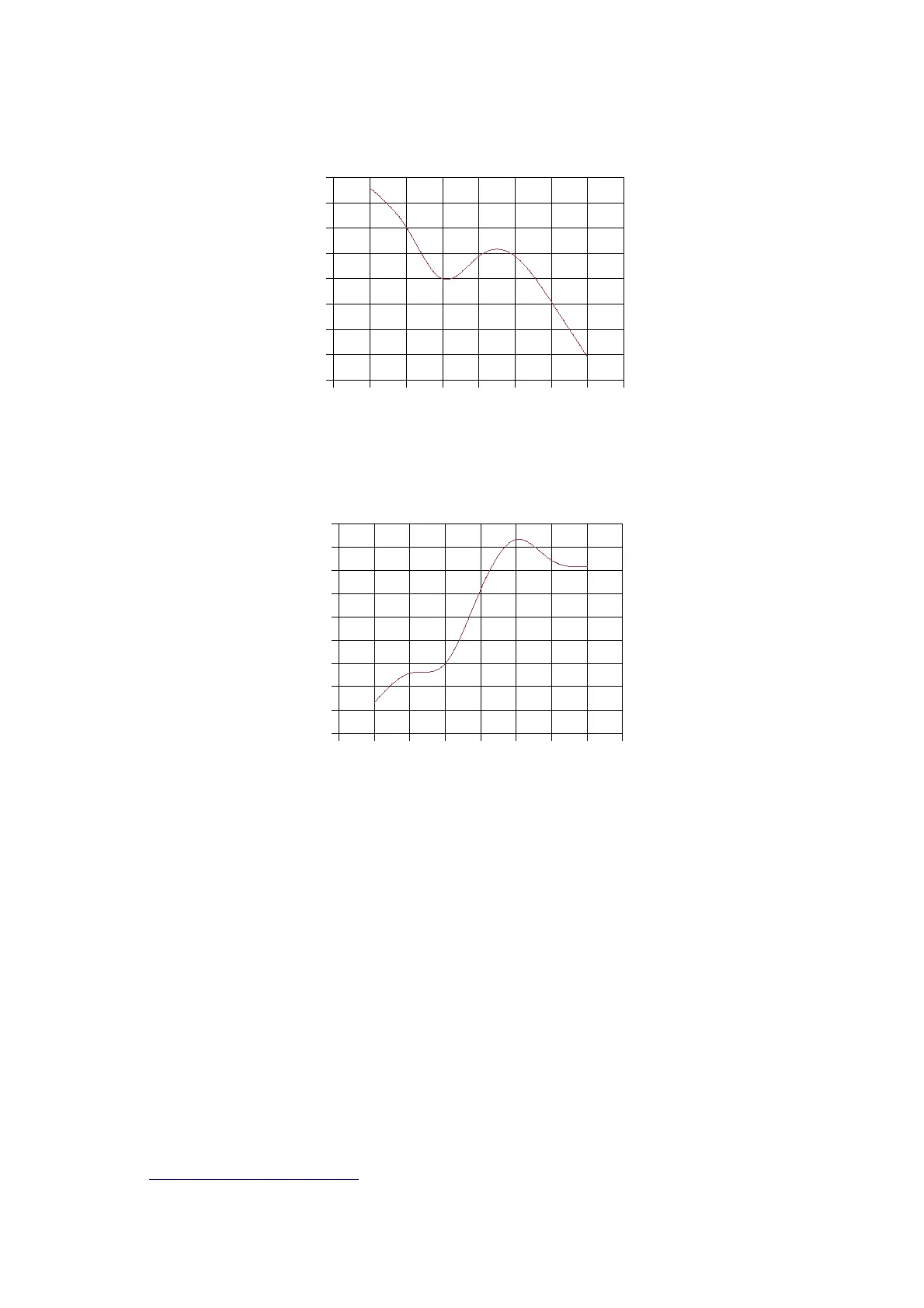

Graph 4: Zero offset
Graph 5: Drift with temperature
Troubleshooting
Unit connected to the load cell but the output is going in the wrong direction.
Solution: Switch the connection of the signal wires.
Can't quite achieve required output.
Solution: Try the range on either side by changing the switch settings. Alternatively
remove cover with connection details & trim excitation voltage up or down to adjust
max or min output using the trim pot in the bottom right corner.
Enquiries and trouble shooting
For any enquiries and problems with SY038 or other available products checkout our
website or send email using the appropriate link below.
Website: www.synectic.co.uk
Email: technical@synectic.co.uk
-40 -20 0 20 40 60 80 100 120
-0.20
-0.15
-0.10
-0.05
0.00
0.05
0.10
0.15
0.20
Zero offset
Temp
%Shift
-40 -20 0 20 40 60 80 100 120
-0.30
-0.20
-0.10
0.00
0.10
0.20
0.30
0.40
0.50
0.60
Span
Temp
% Sh ift
