Synectic Electronics SY038 - Installation Guidelines; Installation Stability and Access; Environmental Precautions

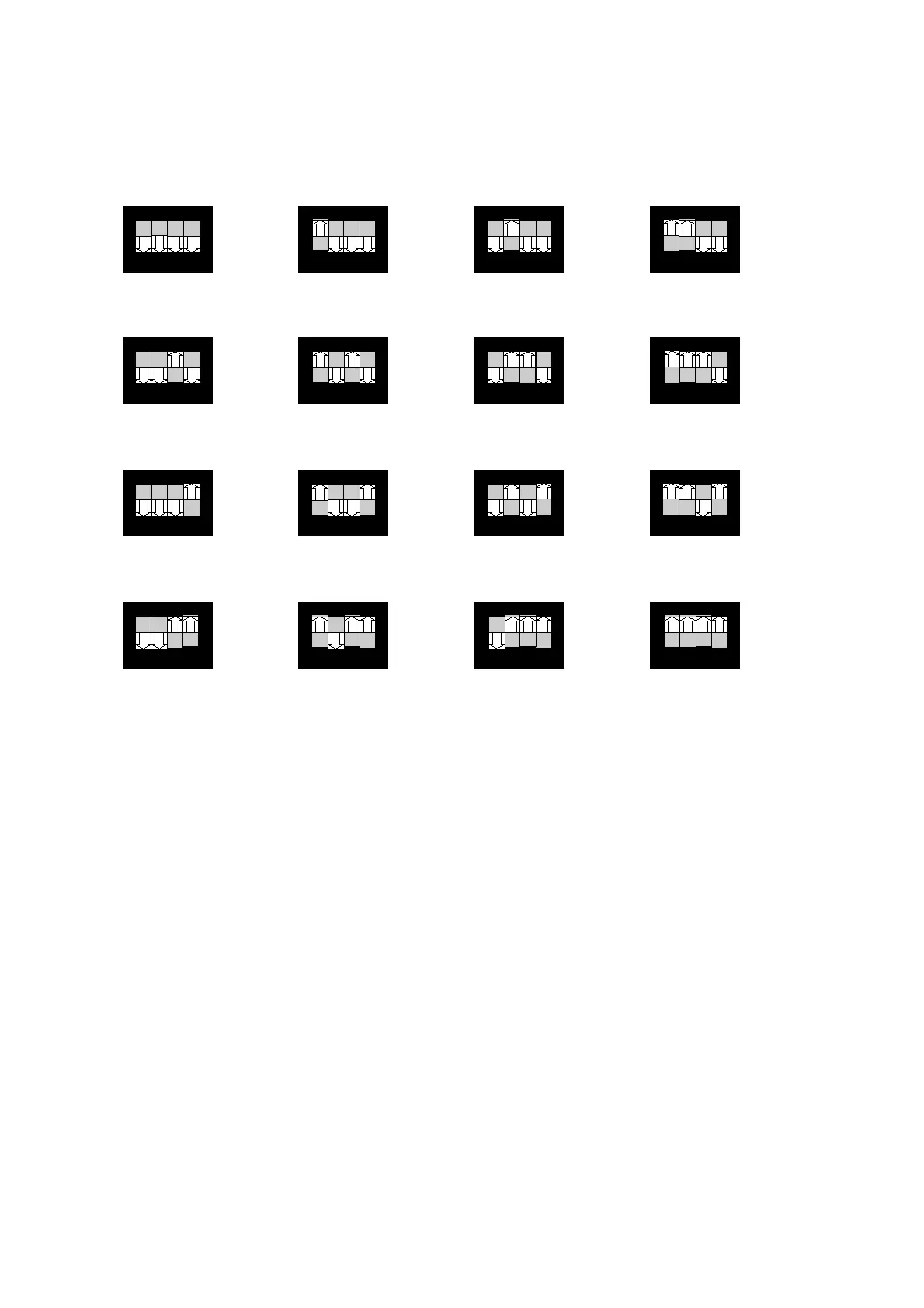

Fig 1: Switch settings for SY038 (HS version in lilac)
** To access the switches, lever off the cover of the amplifier (with the CE marking) from
the bottom right corner using a flat head screw driver.
Installation
Before installation check that the unit is secure and not damaged and that the
environment specifications for the product are as indicated in the manual.
For the installation take into consideration the following:
I. Ensure the component is stable on installation and easy access to the component
II. Avoid contact with water or fluids for the safety of the unit. SY038 can be operated
in any industrial environment provided the following limits are not exceeded.
Operating Temperature: -20 to 100 (°C)
Storage temperature: -65 to 150 (°C
3.0 – 4.4mV/V(Std)
1.5 - 2.2mV/V (HS)
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2
3 4
ON
1 2
3 4
ON
1 2
3 4
ON
1 2
3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
2.9 - 4.2mV/V
1.45 - 2.1mV/V
2.8 - 4.0mV/V
1.4 - 2.0mV/V
2.7 – 3.8mV/V
1.35 - 1.9mV/V
2.4 - 3.4mV/V
1.2 - 1.7mV/V
2.3 - 3.3mV/V
1.15 - 3.15mV/V
2.1 - 3.0mV/V
1.05 -1.5mV/V
2.0 - 2.9mV/V
1.0 - 1.45mV/V
1.3 - 2.0mV/V
0.65 - 1.0mV/V
1.2 - 1.8mV/V
0.6 - 0.9mV/V
1.1 - 1.5mV/V
0.55 - 0.75mV/V
1.0 - 1.4mV/V
0.5 - 0.7mV/V
0.7 - 1.0mV/V
0.35 - 0.5mV/V
0.55 - 0.8mV/V
0.28 - 0.4mV/V
0.37 - 0.55mV/V
0.19 - 0.28mV/V
0.25 - 0.37mV/V
0.13 - 0.19mV/V
