Synrad Firestar f201 Quick Start Guide

5 QSG f201 version 2.1
Firestar™ f201 laser & Flyer 3D System Quick Start Guide
a Novanta company
a Novanta company

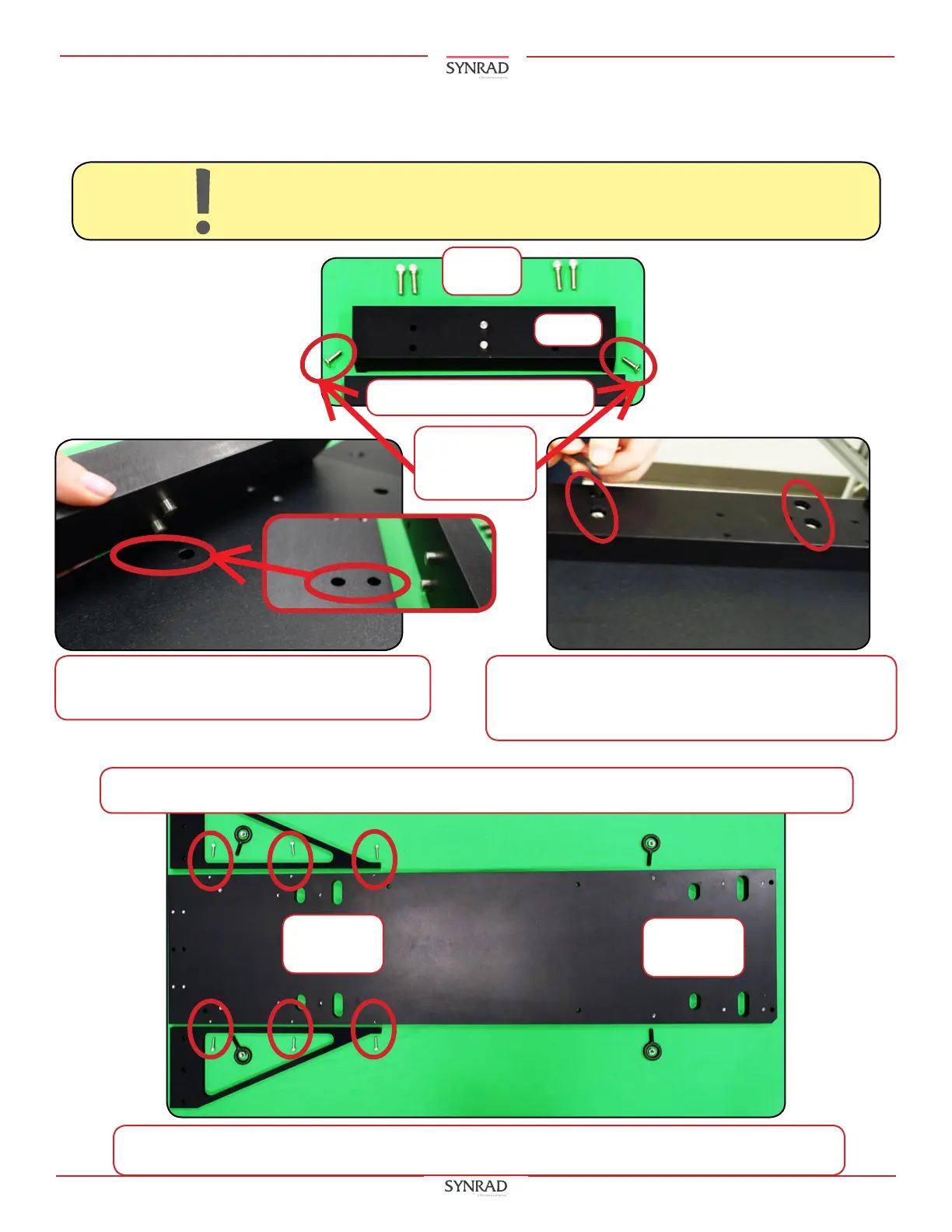

7.2 Place the bar on the rail aligning the
pegs as shown.
7.3 Attach the bar securely to the rail with
the four (4) bar hardware screws shown in
7.1.
7. Place the bar onto the rail as shown below.
Bar
(4) Bar
screws
7.1 Bar and hardware.
8.
Install the triangle bars as shown below.
Note: The Laser feet screws are shown in their nal locations for clarity on the rail above.
8.1 The Triangle bar screws and nal placement on the rail are shown circled in red below.
Laser feet
screws
Laser feet
screws
Two (2) Bar/
Triangle bar
end screws
Attention:
When attaching the Marking Head to the Laser, make sure the notch is as shown in
gure below before going on to the next step.
Mounting (Continued):
