Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH
10.3.2.3 Assembly of the Cylinder Housing HYC2314S01 on the Nozzle
Assembly of the Pistons into the Actuator HYC2314S01
NOTICE
After disassembly of the sealing elements, the original seals
should be replaced as required by Synventive.

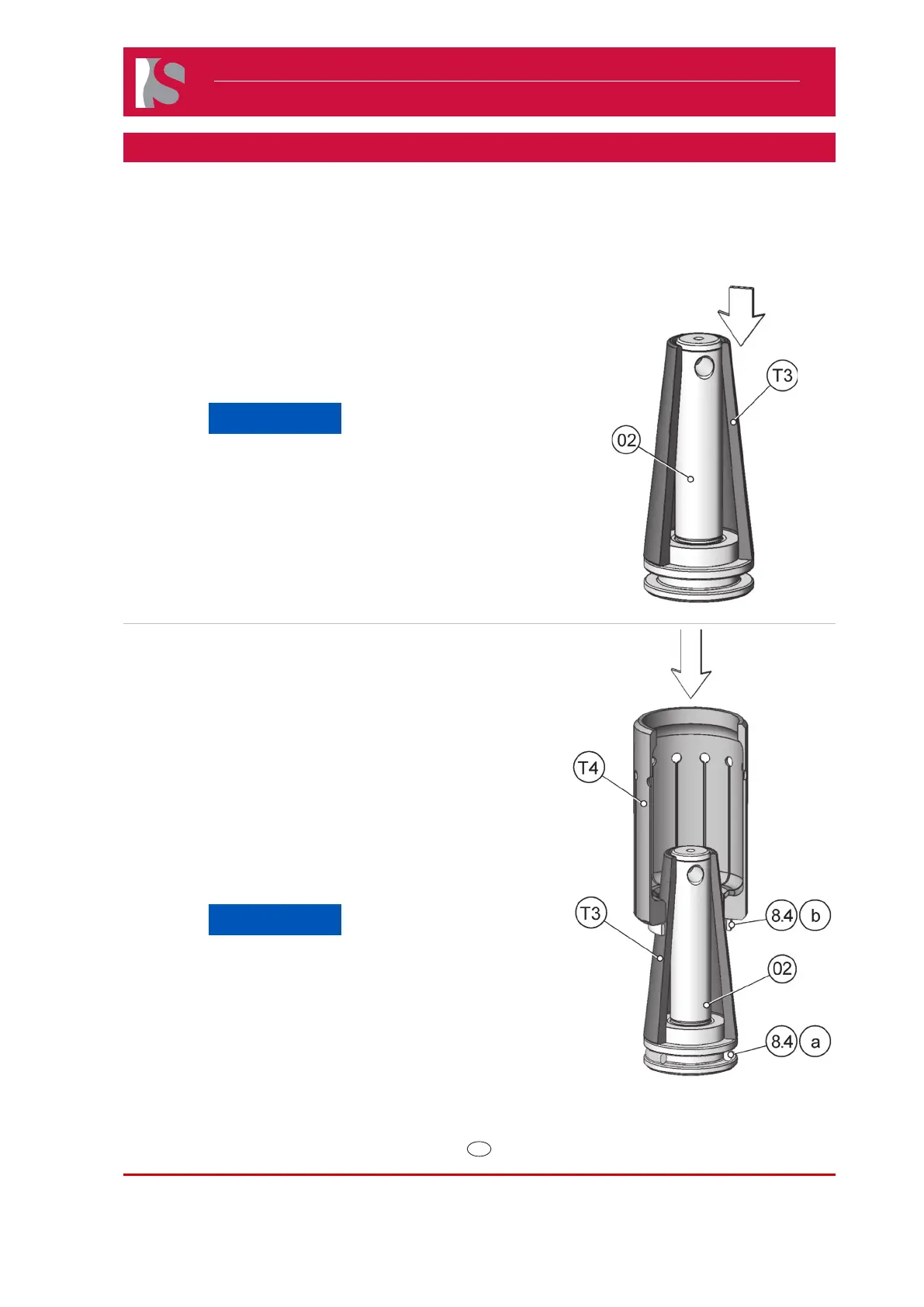

1) Fit the mounting cone (T3) on the piston (02).
2) Lubricate the piston seal elements (8.4) with hydraulic oil or white
grease.
● O-ring (8.4) (a)
● Sealing element (8.4) (b)
3) Mount the O-ring (8.4) (a) into the seal groove of the piston (02).
4) Using the spreader sleeve (T4) and the mounting cone (T3) to push the
sealing element (8.4) (b) into the seal groove of the piston (02).
NOTICE
In the seal groove of the piston (02) the sealing element (8.4)
(b) is placed above the O-ring (8.4) (a).
