Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

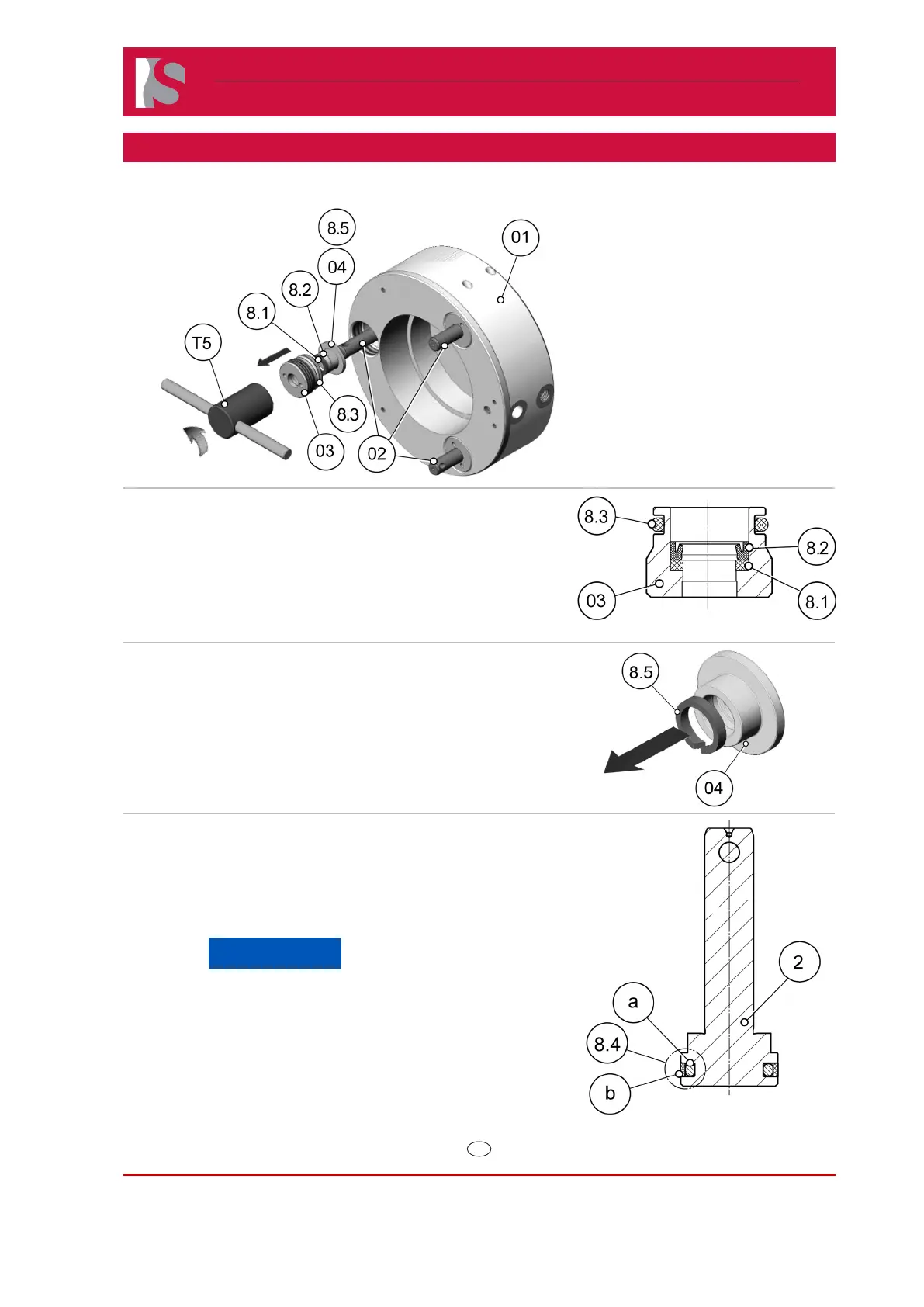

12) At the 3 pistons (02) loosen and
remove the gasket locators (03) with
the wrench ATCYL1005 (T5).
13) Pull the pistons (02) out of the
cylinder housing (01).
14) Dismount the seals from the gasket locators (03).
8.1 Back up ring
8.2 Rod seal
8.3 O-ring seal
15) Dismount the guiding elements (8.5) out of the inner groove of the
gasket locator covers (04).
16) Dismount the piston seals (8.4) out of the inner grooves at the pistons (02).
NOTICE
The piston seal is a compact seal consisting of:
● O-ring (a)
● Sealing element (b)
