Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

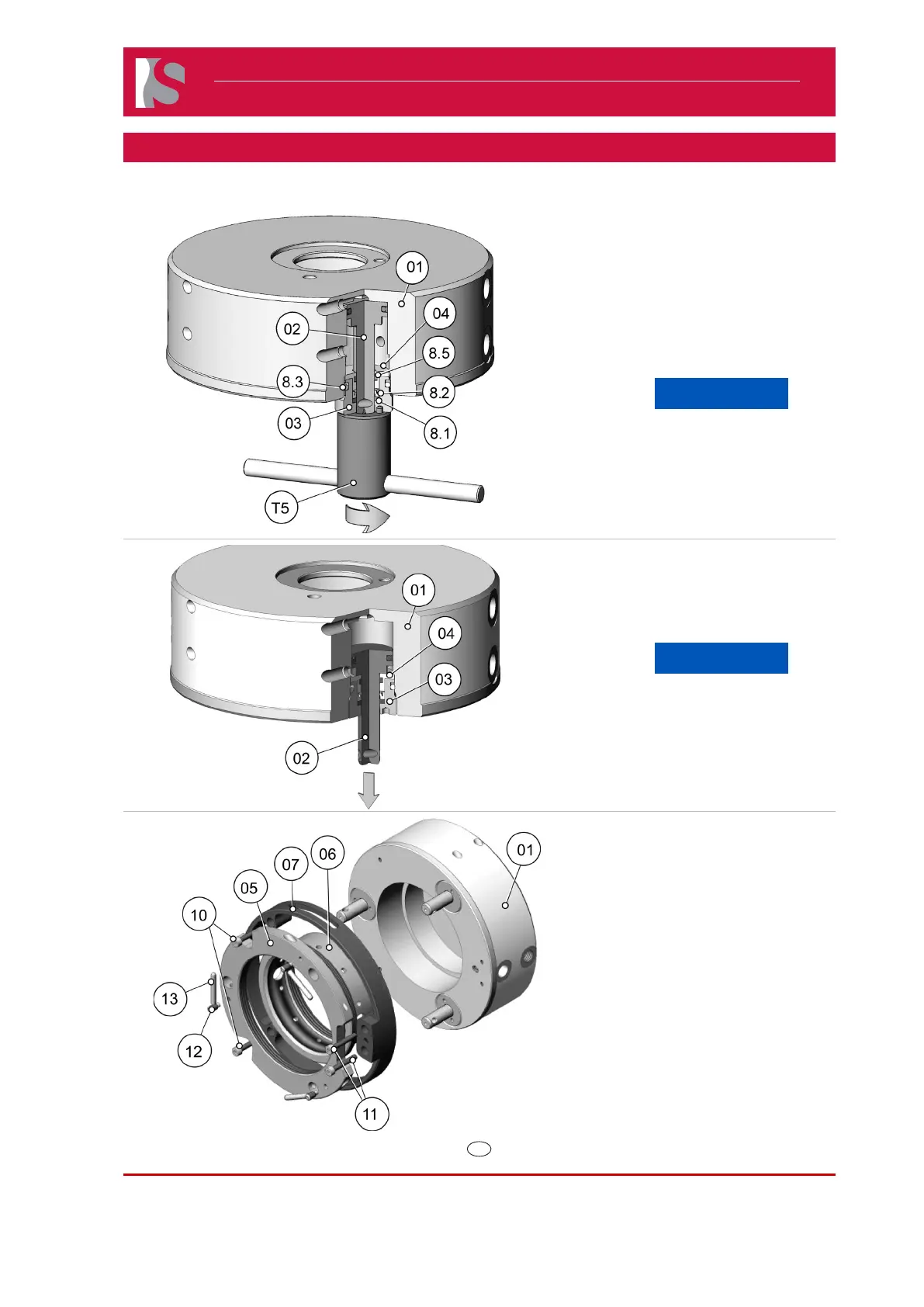

11) Place the gasket locator (03) (04) on
the shaft of the piston (02).
12) Turn the gasket locator (03) into the
cylinder housing (01) thread with the
wrench ATCYL1005 (T5) up to the
mechanical stop.
NOTICE
The top of the gasket
locator (03) must not exceed
(01) the lower edge of the
cylinder housing.
13) Pull the piston (02) until it reaches the
gasket locator cover (04).
NOTICE
In this position, the top of the
piston shaft protrudes 24 mm
above the cylinder housing
(01).
14) The following components are provided
for mounting on the nozzle (not screwed
together):
(1) Cylinder housing (pre assembled)
(5) Suspension ring
(6) Adjustment bushing
(7) Protection ring
(10) Hexagon socket cap screw
DIN912-M4X16-12.9
(11) Hexagon socket cap screw
DIN912-M4X25-12.9
(12) Set screw DIN915-M4X6-45H
(13) Parallel pin DIN6325-4m6X28
