Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH

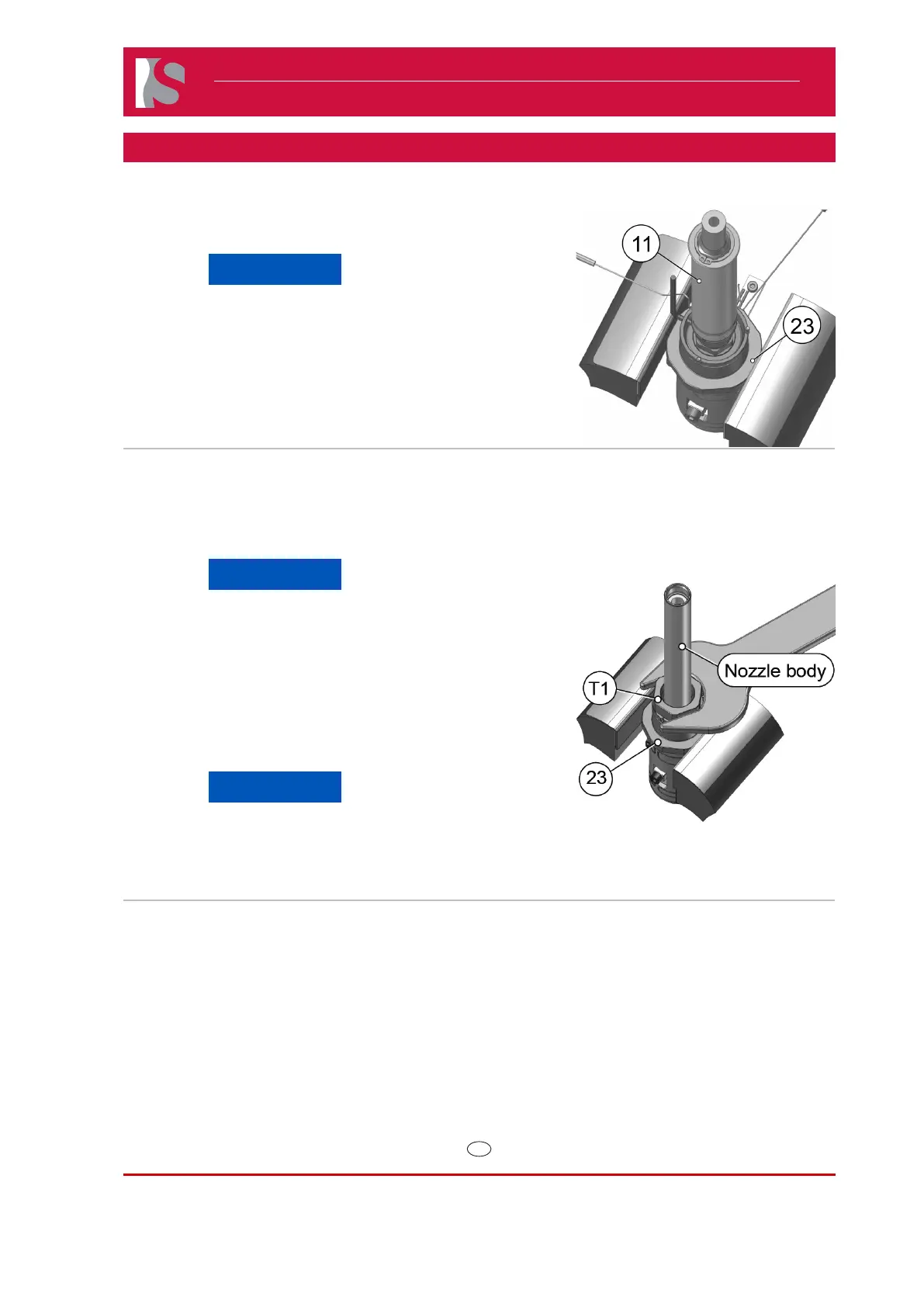

11) Fix the nozzle (11) at the head body (23) in a vice.
NOTICE
Refer to the procedure section 10.1.4.2 Disassembly Nozzle
16E including „Disassembling the Nozzle Heater“ and
„Disassembling the Nozzle Tip and Nozzle Body“
The difference is as follow:
● The 16SVH nozzle is xed in a vice.
● The 16E is screwed into the manifold.
Mounting of the Nozzle and Heater
NOTICE
For the assembly procedure follow the section 10.1.4.3
Assembling Nozzle 16E.
The difference is as follow:
● The 16SVH nozzle is xed in a vice
● The 16E is screwed into the manifold.
For Mounting the Actuator Housing HYC2314S01 on the
Single Axis Valve Gate Nozzle 16SVH, see the 10.3.2.3
above.
NOTICE
The torque value for fastening the nozzle body on the head
body (23) is 340 Nm.
Setup for the Disassembly and As-
sembly of the Nozzle from / to the
Head body
(T1) - Nozzle Disassembly Tool AT16S-01
(23) - Head body
