Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH
10.3.2.5 Dismounting and Mounting of the Thermocouple
Dismounting of the Thermocouple
NOTICE
For dismounting and mounting the thermocouple there is not
a need to have the cylinder housing dismounted.

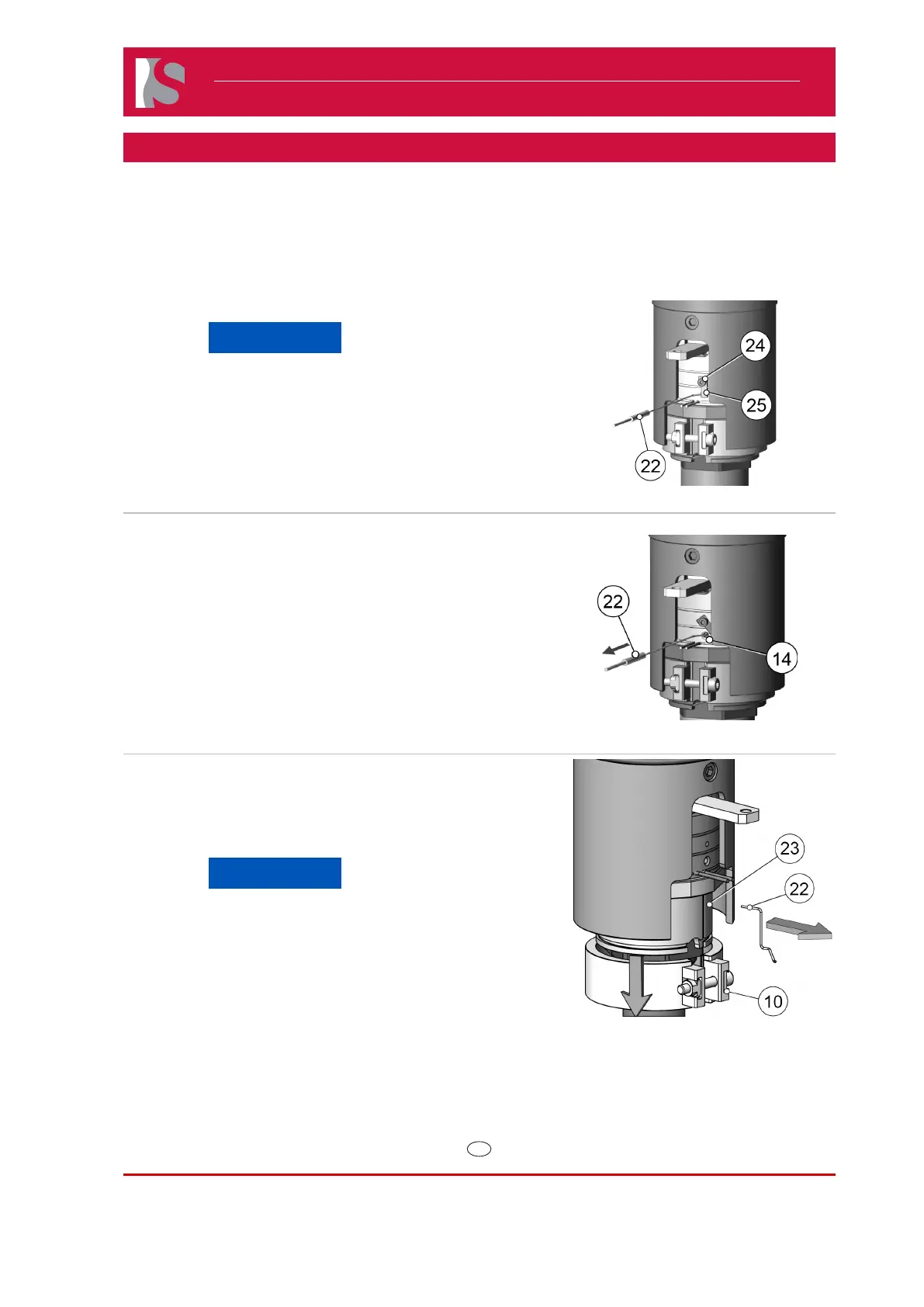

1) Loosen the hexagon socket cap screw (24).
2) Move the clamping device (25) to the side, away from the
thermocouple (22).
3) Pull the thermocouple (22) out of the bore of the heater band (14) and
nozzle head bottom (7).
4) Dismount the 16E-04 nozzle heater.
NOTICE
Follow the heater dismounting procedure of the nozzle 16E-04.
5) Move the heater band (10).
6) Pull the thermocouple (22) out of the bore of the head body (23).
