Hot Runner System Installation Guide
Service and Maintenance / Single Axis Valve Gate Nozzle 16SVH
10.3.2.6 Grounding of the Single Axis Valve Gate Nozzle
Danger to Life by Electric Shock
The Single Axis Valve Gate Nozzle has to be properly grounded to prevent
serious personal injury or death.
Electrical work must be carried out by qualied persons.
Verify that all power source connections are properly grounded.
In Emergency case - Switch all systems off.
For rst aid contact your medical / safety representing.
1) Check the position of the cooling bar (6) on the actuator (8).
NOTICE
The cooling bar (6) must be easily movable to be
positioned on the actuator (8). If this is not possible, contact
Synventive customer service.
2) Tighten the ground wire with a socket cap screw (16) on the cooling
bar (6).
NOTICE

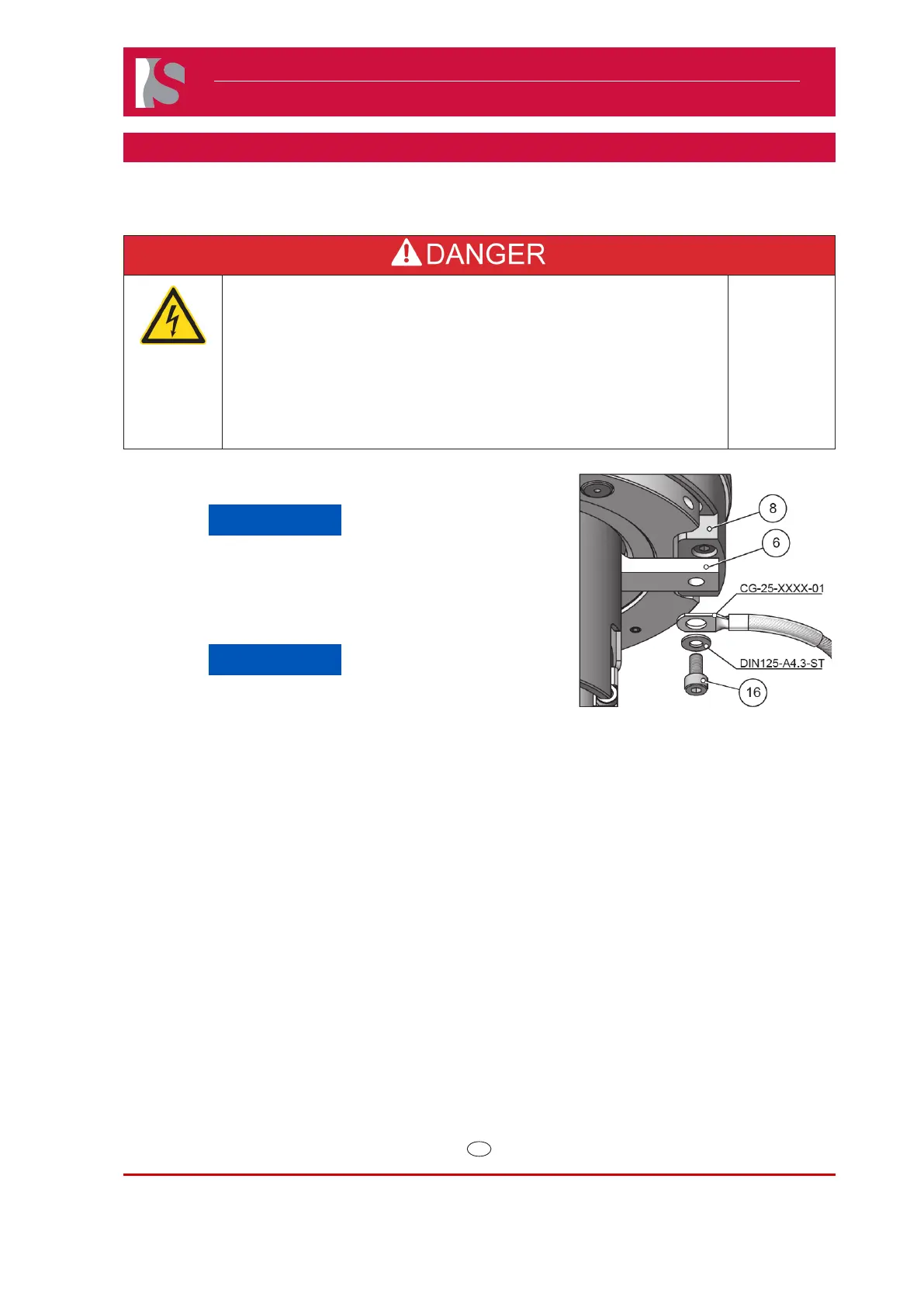

See the order of the components in the image of the right
side Doc007414.png
