Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series

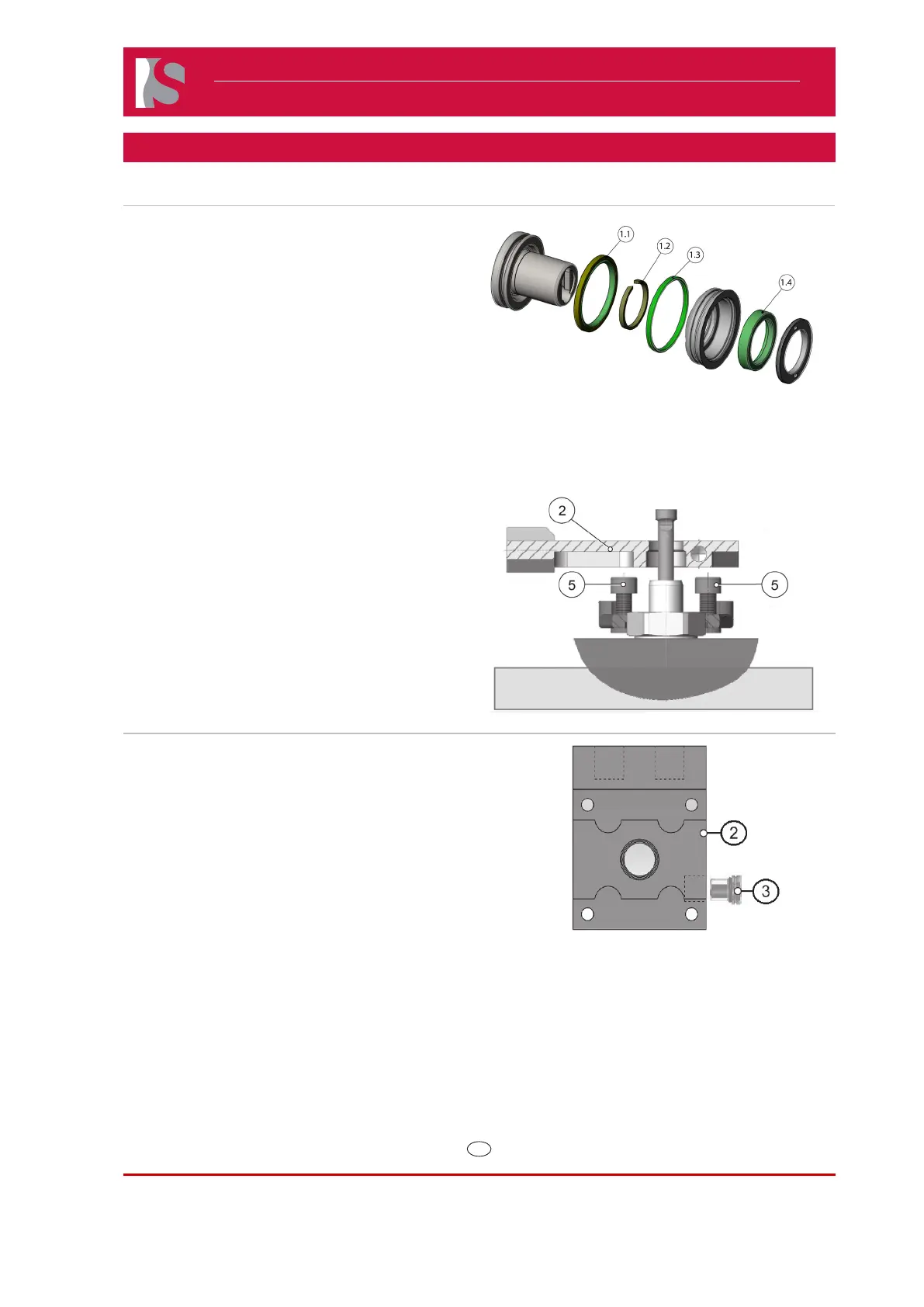

6) Dismount seals:
● Piston Seal (1.1)
● Guiding Element (1.2)
● O-Ring Seal (1.3)
● Rod Seal (1.4)
7) After disassembly of the sealing elements,
the original seals must be replaced. See the
following sections for additional details.
8.1.1.8 Cooling Plate Maintenance
Cooling Plate Removal
1) With the actuator dismounted, lift up the cooling
plate (2).
Cleaning the Cooling Plate
Removing the cooling plate plug
(VSTI10X10RVITCF) facilitates the cleaning of the
cooling plate.
1) Remove the cooling plate plug (3 ) with a HEX5
wrench.
2) Clean the cooling plate (2).
3) Replace plug by torqueing to 6 Nm.
