Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series

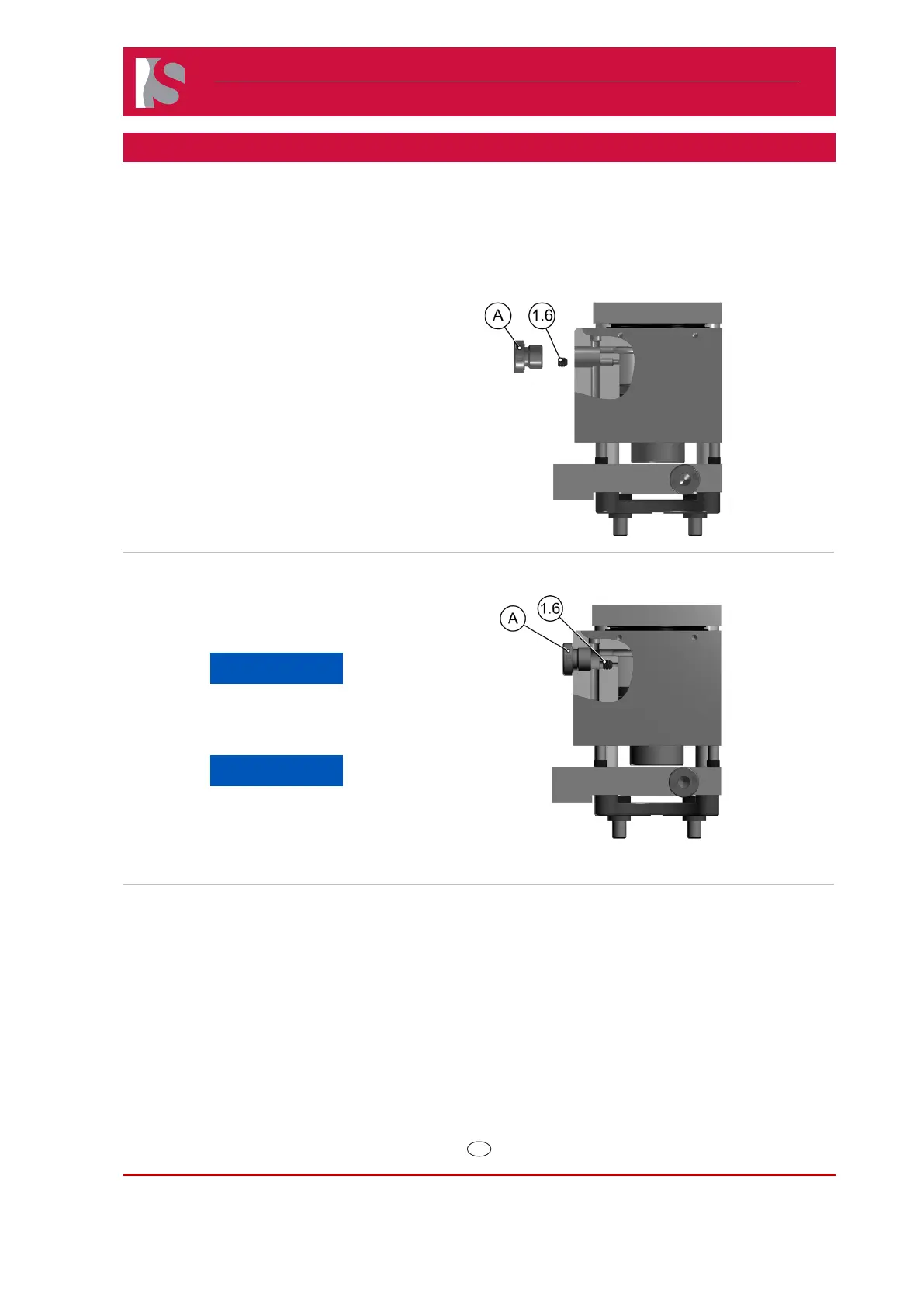

Replace of the Restrictor
The seal kit is also supplied with a replacement Restrictor (1.6). Replace the Restrictor
(1.6) at the same intervals as when replacing the actuator seals.
1) Unscrew and remove the Plug (A).
2) Unscrew and remove the Restrictor (1.6).
3) Insert the Restrictor (1.6) into the housing
and torque.
NOTICE
Use a torque wrench for a torque of
2 Nm (1.63 ft-lbs).
4) Insert Plug (A) and torque.
NOTICE
Use a torque wrench for a torque of
12 Nm (8.9 ft-lbs).
