8.1.1.9 Assembling the Actuator HB Series

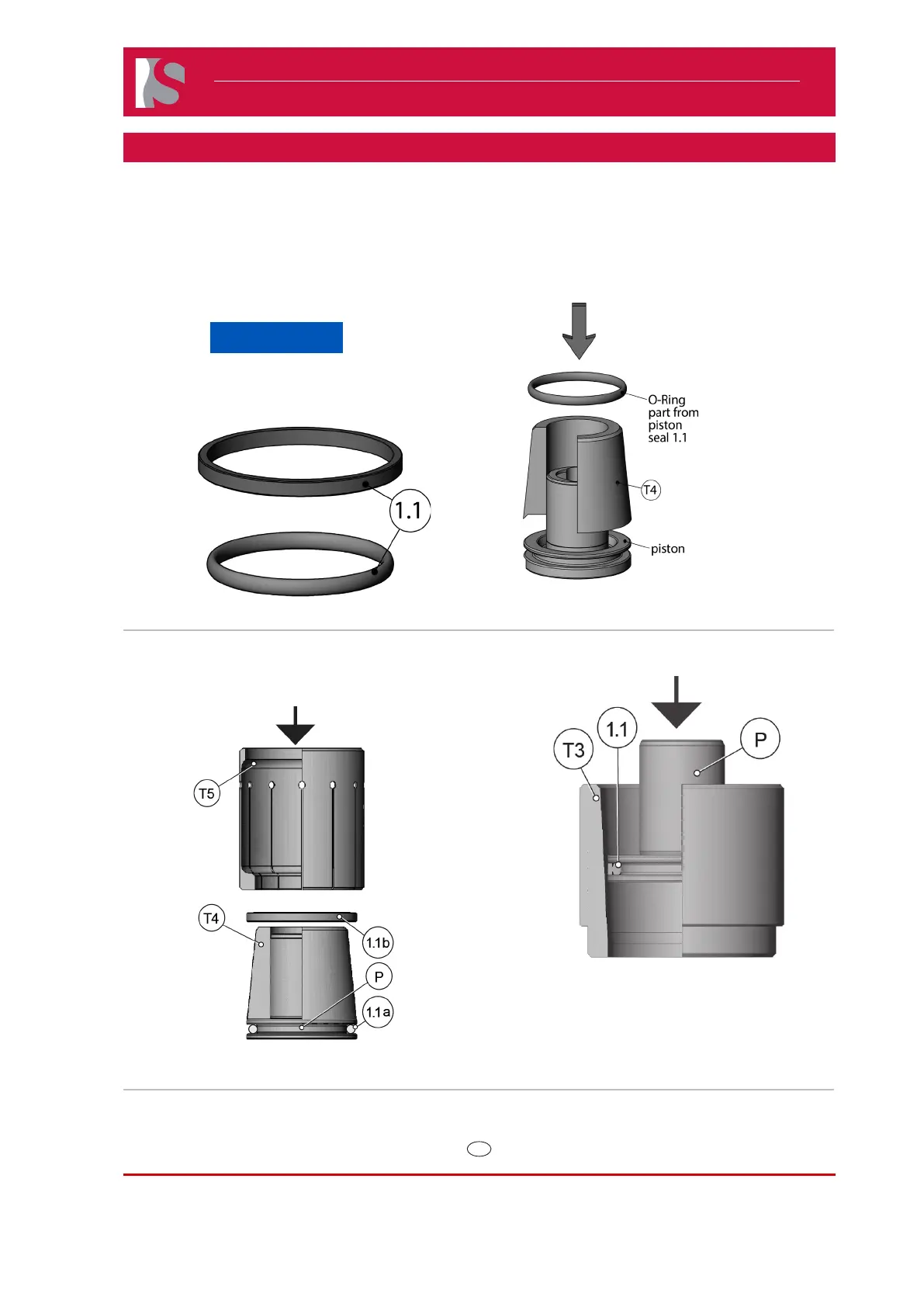

Installing the Piston Seal
1) Liberally lubricate Piston Seals 1.1 with
hydraulic oil:
NOTICE
The piston seal kit consists of a piston
seal ring and an O-ring. They are
combined as one unit.
2) Insert O-ring into piston seal groove.
3) Insert Sealing Element (1.1b) into piston
seal groove (over the O-ring 1.1a) using the
mounting cone (T4) and spreader sleeve (T5).
4) Precisely align the piston seal (1.1) with the
calibration sleeve (T3).
