Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series

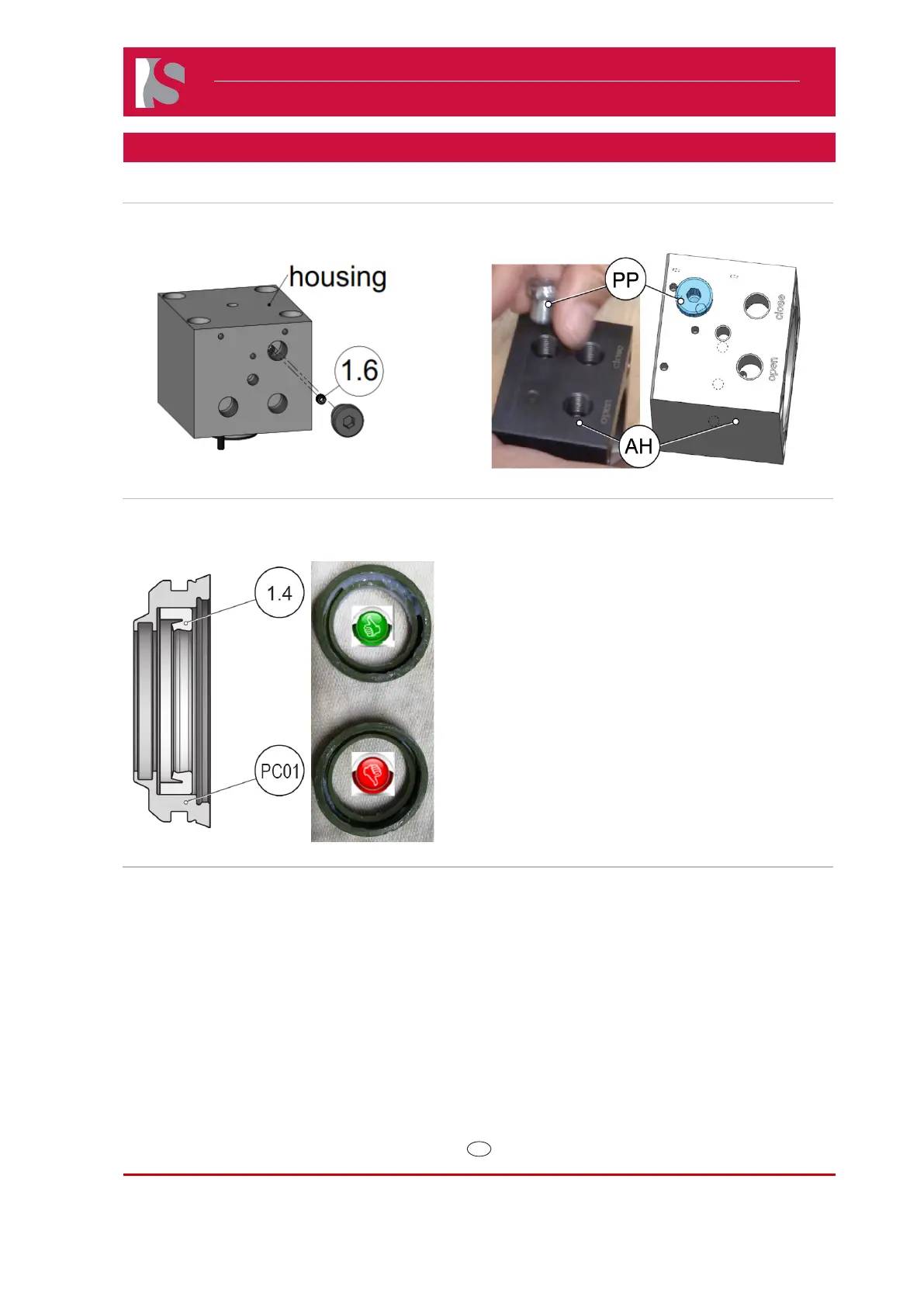

5) Screw in the restrictor (1.6) into housing and
torque to specication on drawing (2 Nm).
6) Insert threaded plug (PP) and torque to
specication on drawing (12 Nm Min).
7) Liberally lubricate Rod Seal (1.4) with Krytox
GPL205 and insert Rod Seal (1.4) into Piston
Cap (PC01) in orientation shown.
Doc008088.png and Doc008527.png
