Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series

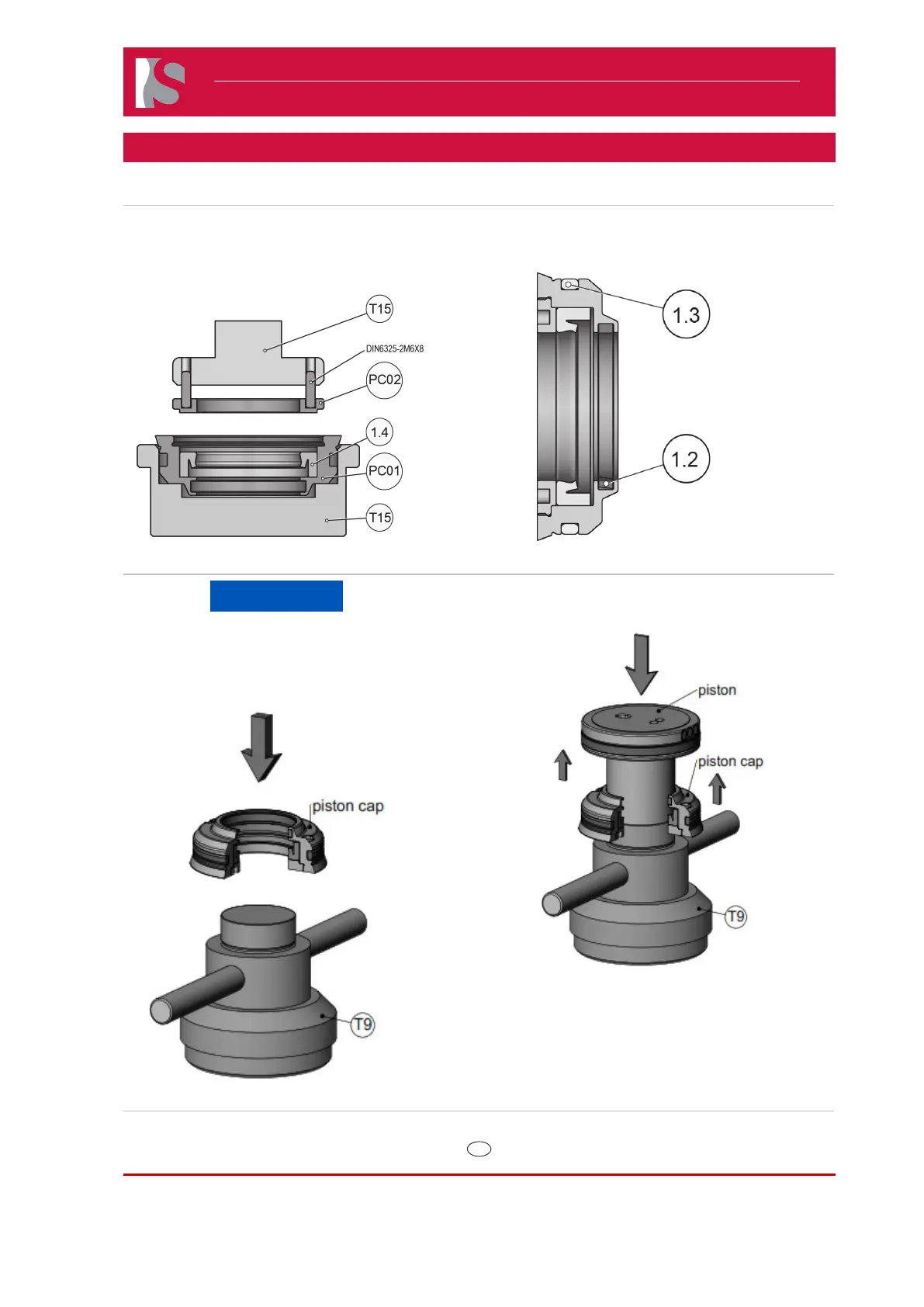

8) Use tools T15 Mount piston cap (pc01 and
pc02).
15Nm for HB2508
45Nm for HB4016
9) Liberally lubricate Guiding Element (1.2)
and O-Ring Seal (1.3) with Krytox GPL205
and insert them into Piston Cap.
NOTICE
To avoid damage to the seals, the T9 assembly
tool should be used.
10) Guide the piston cap onto the assembly tool
(T9).
11) Set the piston on the assembly tool (T9)
and slide the piston cap onto the piston.
