Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series

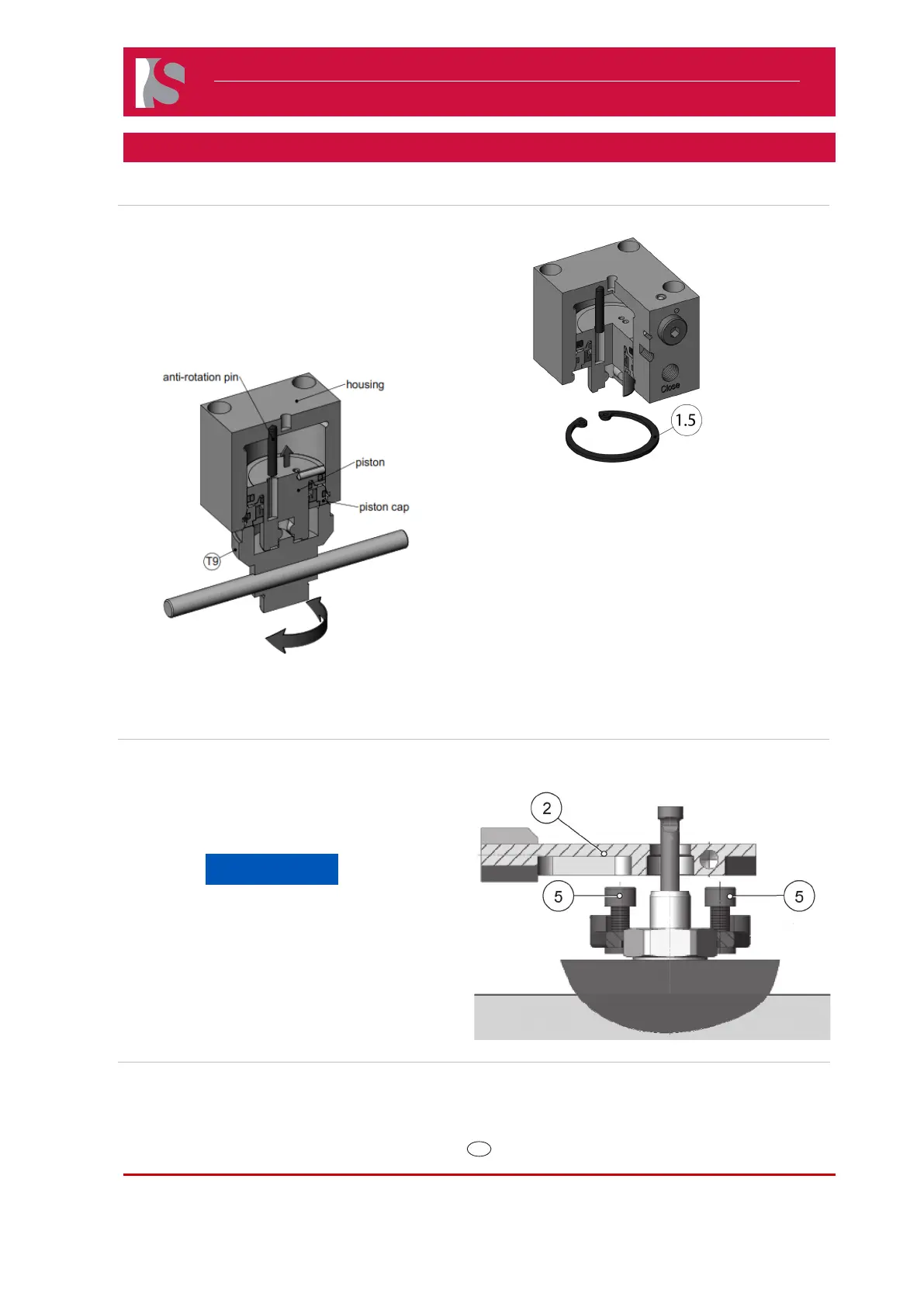

12) Use the assembly tool (T9) to guide the
piston into the housing. With the assembly
tool, the piston can be rotated so that the hole
in the piston is aligned with the anti-rotation
pin.
13) Install retaining ring (1.5).
Mounting the Actuator on a Manifold
1) Position the mounting plate on the manifold.
2) Lubricate the thread of the hexagon socket
head cap screws (5) with high temperature
assembly paste (anti-seize compound).
NOTICE
Anti-seize compound is an important
measure to prevent thread corrosion
due to aggressive gasses which could
be released during plastic processing.
3) Screw the mounting plate (3) onto the manifold
with the socket head cap screws (5) M6x14.
4) Place the cooling plate (2) on the mounting
plate (3).
