Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series

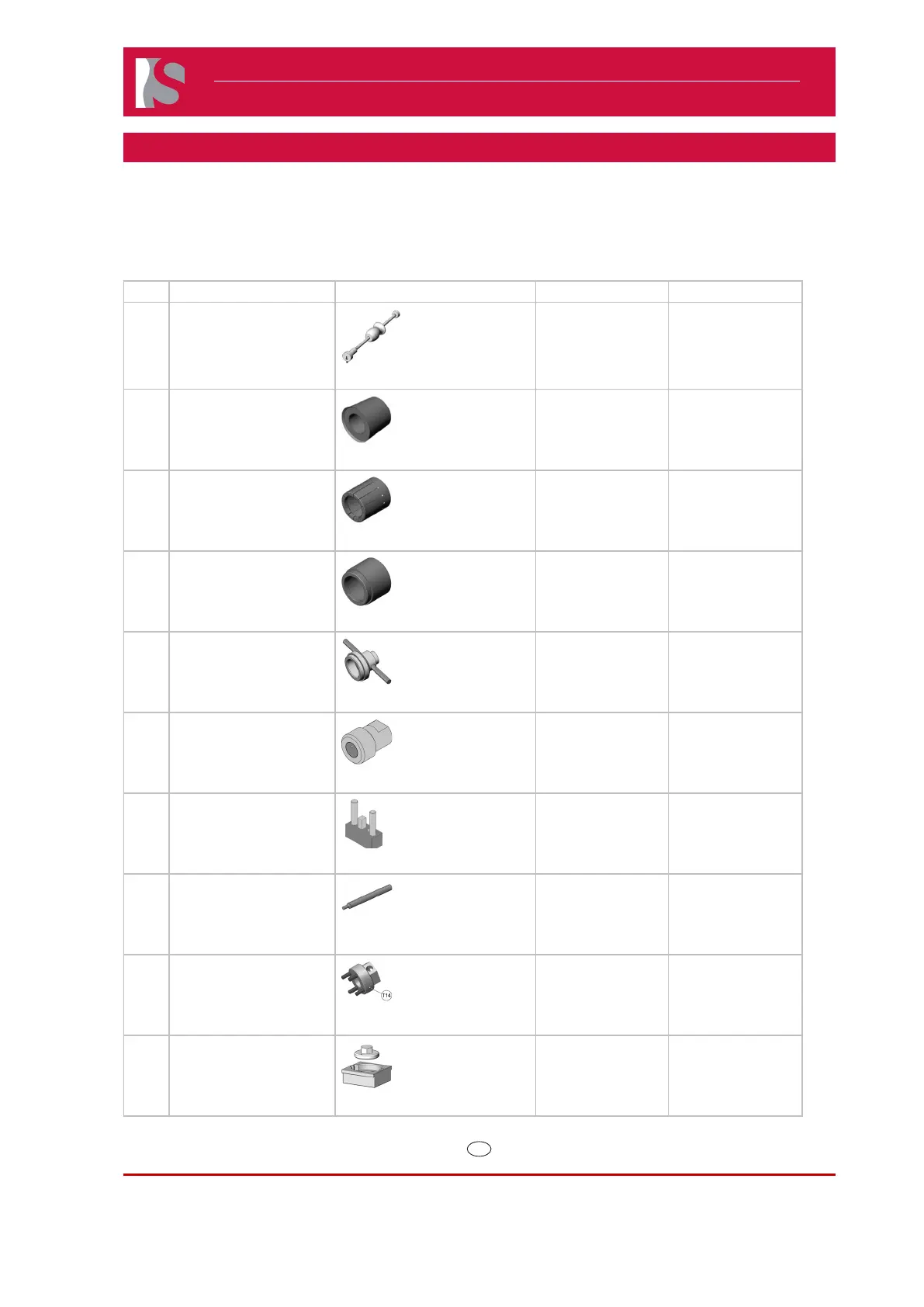

8.1.1.5 HB assembly tools
These tools are needed for assembly and service of the Actuator. The tools are identied with the
numbers indicated in the following gure.
No. Description Figure HB2508 HB4016
T3 Valve pin disassembly tool
Doc001229.tif
ATCYL0805 ATCYL0303
T4 Piston seal installation cone
ATCYL0203 ATCYL0304
T5 Piston seal spread tube
ATCYL0202 ATCYL0105
T6 Piston seal calibration sleeve
ATCYL0204 ATCYL0107
T9
Piston and cap assembly tool
ATCYL45 ATCYL27
T10 Dowel insertion tool
ATCYL48 ATCYL49
T11 Top CV plug assembly tool
Tool not needed ATCYL40
T13 CV Plug Tool
EIS-HT-050 EIS-HT-050
T14 Adjustment Tool
ATA01 ATA01
T15 Piston Cap Tool
AT-PIC25010
AT-PIC2502
AT-PIC4001
AT-PIC4002
