Hot Runner System Installation Guide
Service and Maintenance / Actuator HB Series
8.1.1.6 Dismounting the Actuators of the HB Series
Danger to Life by Hydraulics
Serious personnel injury or death can result from connecting or
disconnecting hydraulic hoses under pressure.
Hydraulic works must be carried out by qualied persons.
Use personal protective equipment, such as face protection, headgear, anti oil
gloves.
The hoses in Hot Runner Systems and the injection mold are under high
pressure and high temperatures.
Before disconnecting or connecting any Hydraulic hoses:
● The injection machine / hydraulic pump must be shut down.
● The electrical disconnect properly locked out.
● Pressure from the hoses must be removed.
For rst aid contact your medical / safety representing
Dismounting Procedure

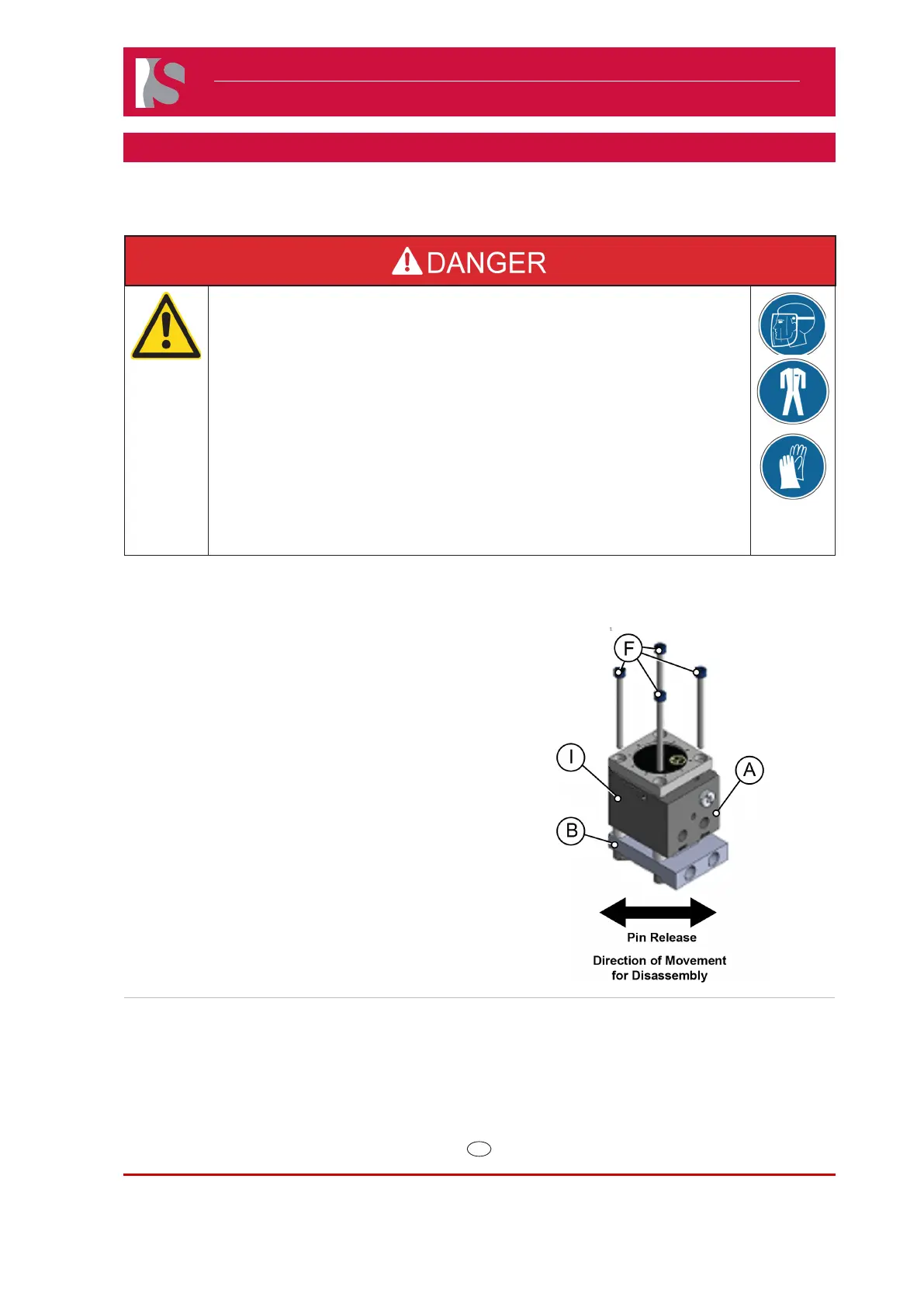

1) Locate and remove the four screws (F) on
top of the actuator housing (A).
2) Push the whole actuator housing (A) in
the direction specied on the pin release
indicator label (I).
This will disengage the actuator from the
valve pin.
