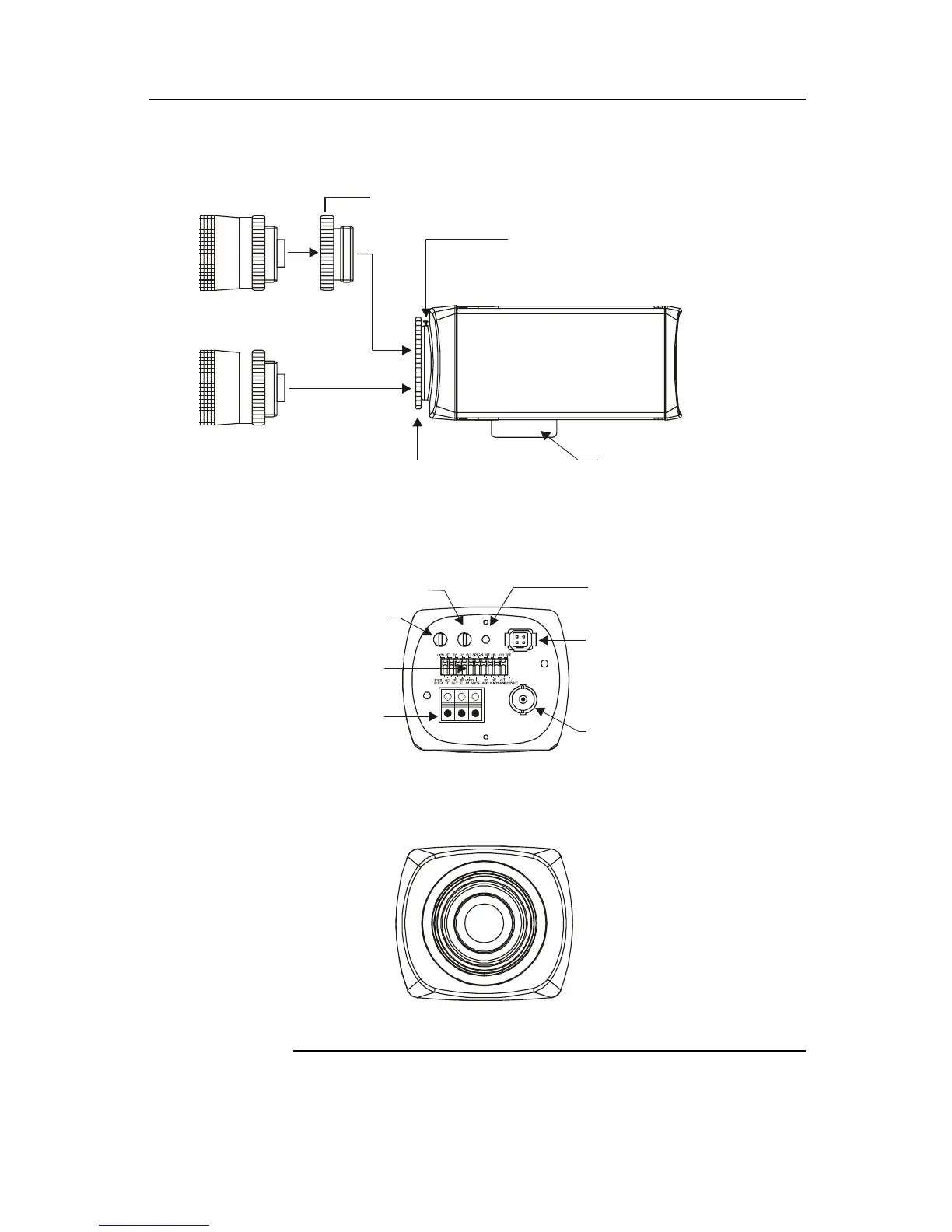

CAMERA OVERVIEW
BACK VIEW (12VDC / 24VAC)
Video Out BNC
Connector
Auto Iris Lens
Connector
FRONT VIEW
SIDE VIE
W
C Mount Ring
Back Focus Lock Screw
Back Focus Ring
Camera Mounting Bracket
( C MOUNT LENS )
( CS MOUNT LENS )
Function
Switch
Power LED
Power Input
Terminal
LEVEL PHASE PWR
LENS
12VDC / 24VAC CLASS 2
VIDEO OUT
~ G ~
V. Phase Potentiometer
Level potentiometer
(for DC type A/I lens)
Continued on next page
1. Back focus Lock Screw – Allows the user to secure the backfocus
setting.
