3
206268 Systemair Sverige AB

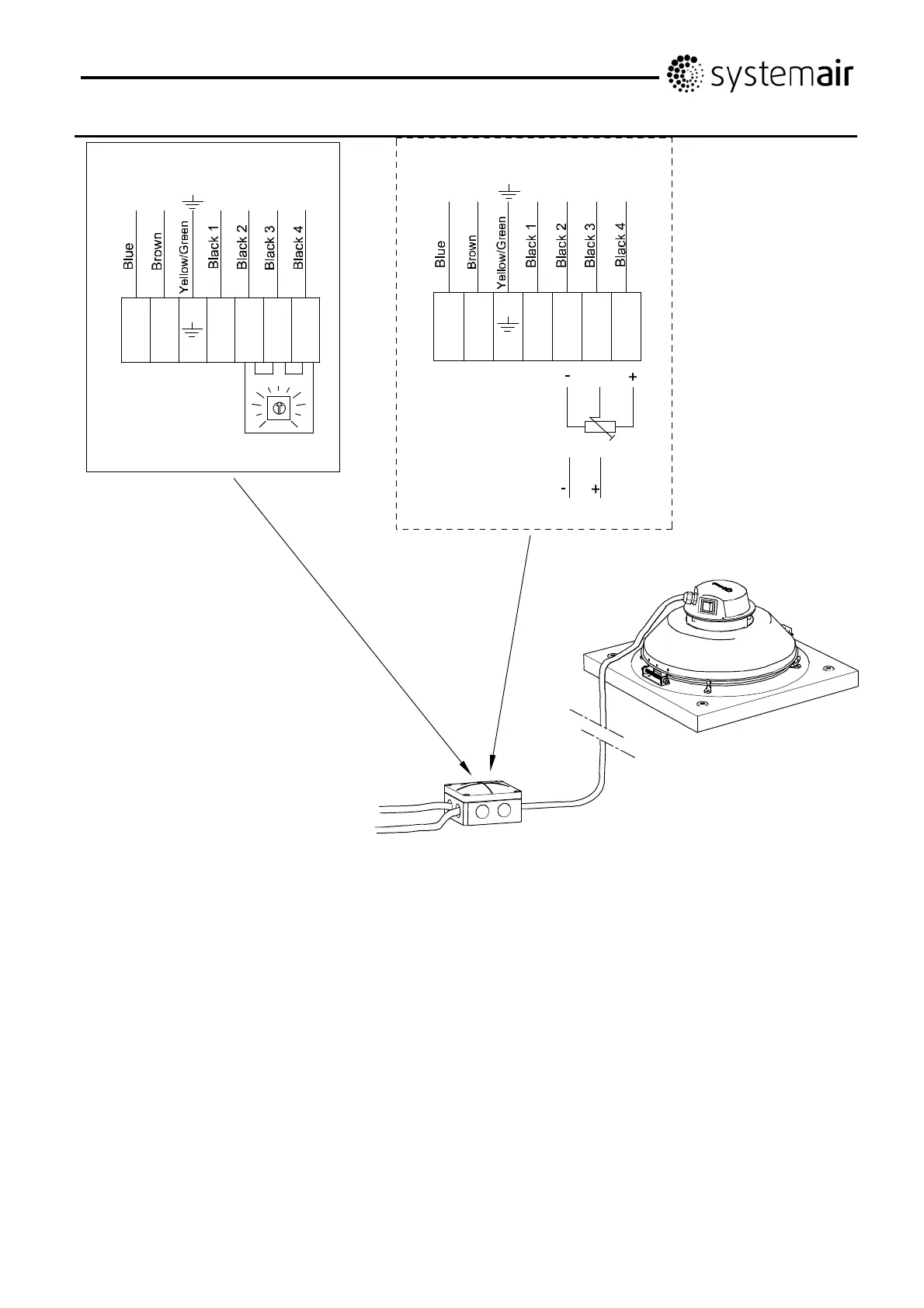

TFSR/TFSK EC
230 V 1~
Ext. Pot/0-10V DC
+
-
0
10
1=Min
5
L
N
230V 1~
NL 1 2 3 4
Internal potentiometer
0-10V DC
010
NL 12 3 4
External potentiometer
230V 1~
N
L
10K
Optional
