28
|
Maintenance

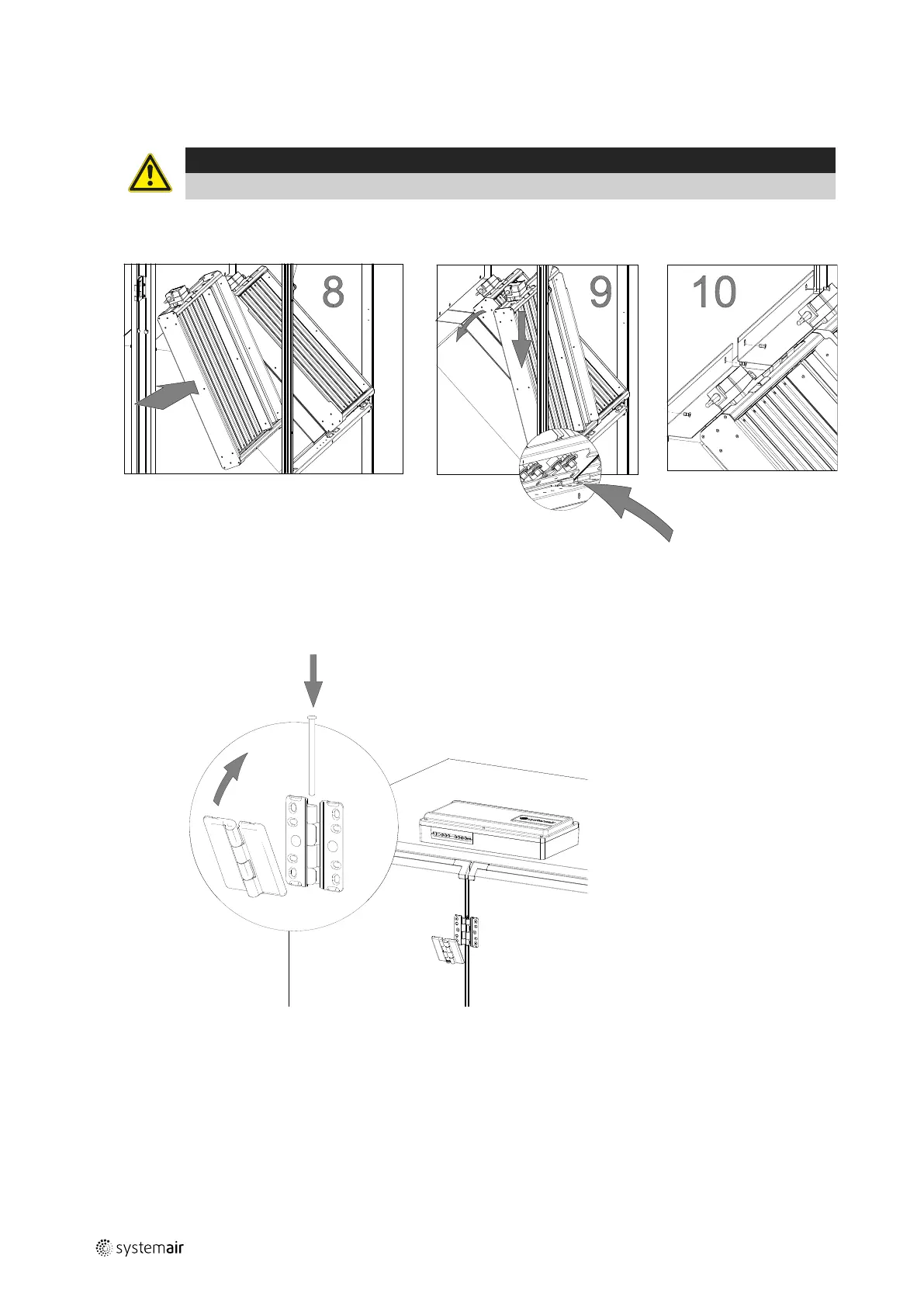

Fasten
the
damper
14.
Insert
the
damper
in
the
area
above
the
exchanger.
Caution
Do
not
drag
the
damper
on
the
exchanger.
15.
Lift
the
damper
with
the
short
end
on
the
rail
at
the
outer
beams.
Observe
the
small
hooks
to
secure
the
damper.
16.
Fasten
the
damper
by
fastening
the
damper
rails
with
the
bolts.
Mount
the
doors
17.
Place
the
doors
in
position.
18.
Unite
the
hinges
and
replace
the
pin.
214959
|
A004
31
