4
| General
Note:
You can always return to system overview dashboard by pressing the home button, figure 1, (1).
1.2 Key board
When a name, value or password need to be changed/written a key board will appear at the bottom of the
touchscreen.
1.3 Symbol description
Home (home page)
Data and settings
Shows operating information and settings

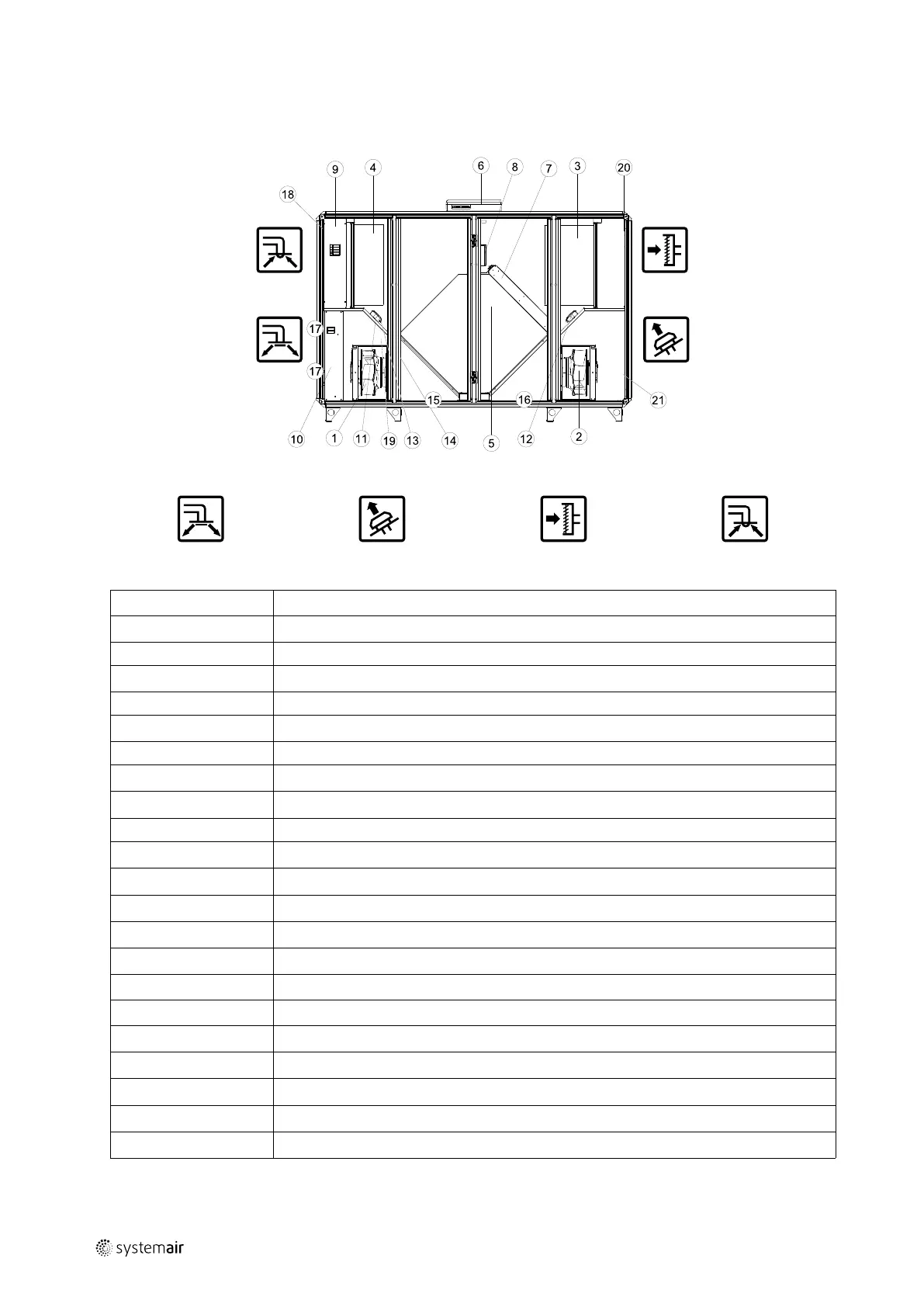

Flow diagram
A schematic overview of the air handling unit and its components
Language
Change language
Time and date
Weekly schedule
Configuration
Alarm and functions configurations, I/O allocation settings
Alarm symbol, indicates if there are active alarms. One press on the symbol will direct you to the alarm
list.
End user
When logged out
Read /write — Home page (figure 4)
Possible actions in end user mode are to stop the air handling unit for
maintenance (e.g. filter exchange), change the time for extended run and
change the temperature setpoint.
Operator mode — log in
with 1111
Logged in
Read and write privileges (except Configuration).
Service mode — log in
with 0612
Logged in
Full read and write privileges.
151671 | A002
