Before Starting the System |
11
Position Description
UI1–5
Freely configurable universal input. Can be set as analog input (0–10 V) or a digital input (24 V).
UI1 default configuration: Pressure guard
UI2 default configuration: Cooker hood
UI3 default configuration: Fire alarm
UI4 default configuration: Refresh
24V Maximum current 200mA at 24VDC +-10%.
8 Before Starting the System
When the installation is completed, check that:
The unit is installed in accordance with the instructions
Outdoor and exhaust air dampers and silencers are installed and that the duct system is correctly connected to the
unit
All ducts are sufficiently insulated and installed according to local rules and regulations
Outdoor air intake is positioned with sufficient distance to pollution sources (kitchen ventilator exhaust, central vac-
uum system exhaust or similar)
All external equipment is connected
The unit is correctly wired
9 Commissioning
Follow the first startup instructions and fill in the Commissioning record as you go through the settings.
The Startup Wizard cannot be skipped.
Note:
If the SAVE LIGHT control panel is used, the start-up wizard is skipped and the factory settings are used.

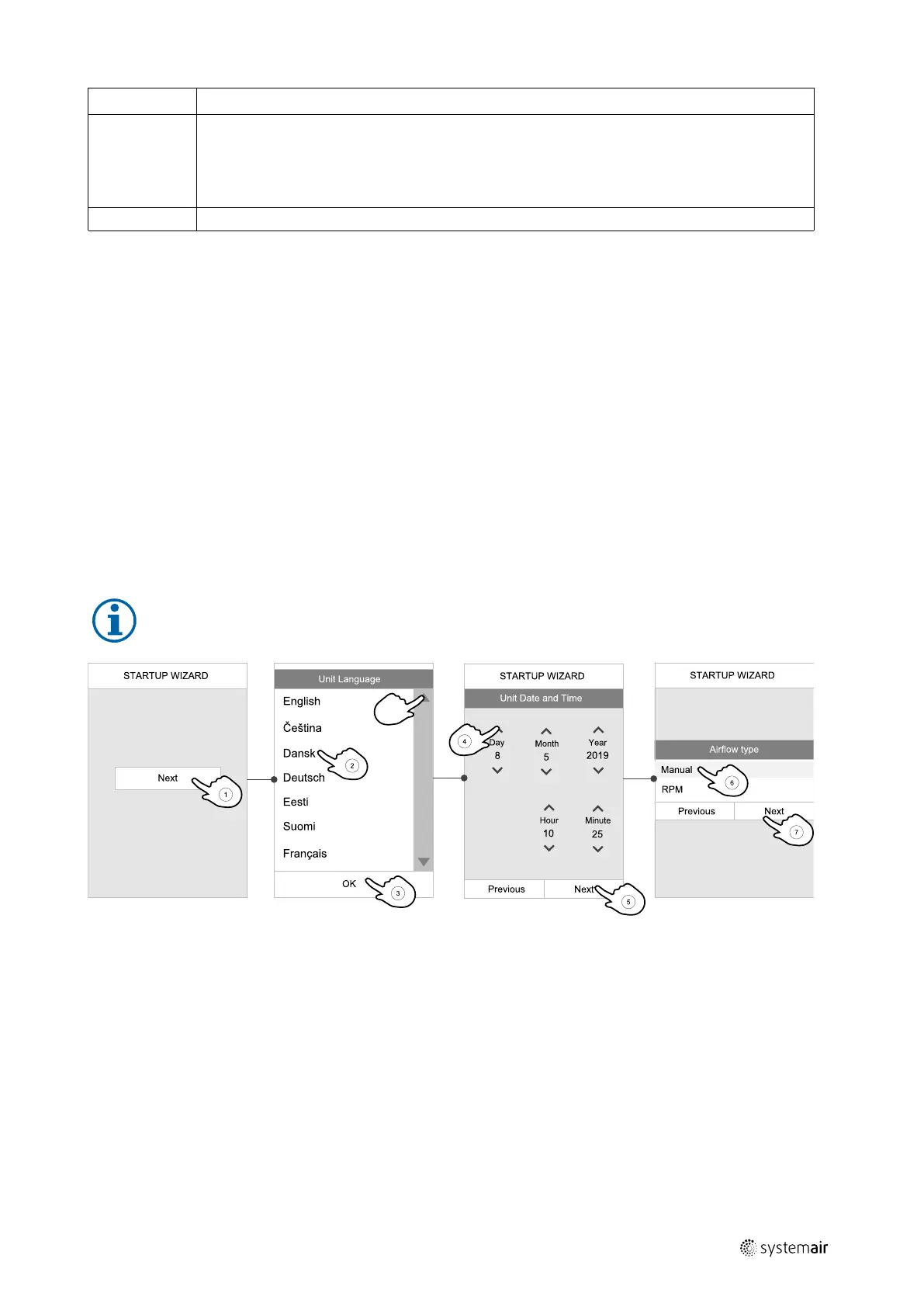

Select language, set the time and choose airflow control type. Select revolutions per minute as the type of airflow con-
trol only if these values are included with the device.
254494 | v01
